Toyota Carina ff AT150 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2012003	AT15#,CT150..DX,SG SHADOW GRAY,GRAY,TRIM1#	05/1984 - 05/1986	1
46201-2013013	AT150,CT150,ST150..SG MEDIUM GRAY,MY ROAD,MEDIUM GRAY,TRIM1#	12/1987 - 01/1988	1
46201-2012006	AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4#	05/1984 - 05/1986	1
46201-2012034	AT15#,CT150,ST150..SG DARK BLUE,DARK BLUE,TRIM8#	05/1986 - 01/1988	1
46201-2012104	AT15#,CT150,ST150..SG DARK BLUE,BLUE,TRIM8#	01/1988 - 04/1988	1
46201-2012005	AT15#,CT150,ST150..SG DARK BEIGE,DARK BEIGE,TRIM4#	05/1986 - 01/1988	1
46201-2012023	AT15#,CT150,ST150..DX,SG MEDIUM GRAY,MEDIUM GRAY,TRIM1#	05/1986 - 01/1988	1
46201-2012004	AT15#,CT150..DX,SG BLUE,BLUE,TRIM8#	05/1984 - 05/1986	1
46201-2013005	AT150,CT150,ST150..SG ﾏｲﾛ-ﾄﾞ,BEIGE,DARK BEIGE,TRIM4#	09/1987 - 12/1987	1
46201-2012105	AT15#,CT150,ST150..SG DARK BEIGE,DARK BEIGE,TRIM4#	01/1988 - 04/1988	1
46201-2012123	AT15#,CT150,ST150..DX,SG MEDIUM GRAY,MEDIUM GRAY,TRIM1#	01/1988 - 04/1988	1
46201-2013113	AT150,CT150,ST150..SG MEDIUM GRAY,MY ROAD,MEDIUM GRAY,TRIM1#	01/1988 - 04/1988	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-2002004	AT15#,CT150,ST150 BLUE,BLUE,TRIM8#	05/1984 - 05/1986	1
46217-2002003	AT15#,160,CT150,ST150,162 SHADOW GRAY,SHADOW GRAY,TRIM1#	05/1984 - 05/1986	1
46217-2002054	AT15#,CT150,ST150..SE,SG,ST DARK BLUE,DARK BLUE,TRIM8#	05/1986 - 01/1988	1
46217-2002006	AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4#	05/1984 - 05/1986	1
46217-12020J0	AT15#,CT150,ST150..SE,SG,ST DARK BLUE,DARK BLUE,TRIM8#	01/1988 - 04/1988	1
46217-2002015	AT15#,CT150,ST150..SE,SG,ST DARK BEIGE,BEIGE,TRIM4#	05/1986 - 01/1988	1
46217-2002033	AT15#,160,CT150,ST150,162 MEDIUM GRAY,MEDIUM GRAY,TRIM1#	05/1986 - 04/1988	1
46217-12020E0	AT15#,CT150,ST150..SE,SG,ST DARK BEIGE,DARK BEIGE,TRIM4#	01/1988 - 04/1988	1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
46241 - BOOT, PARKING BRAKE LEVER
46241-20050	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20020	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-20040	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20230	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-39016	AT15#,CT150,ST150	07/1985 - 04/1988	1
46420-39015	AT15#,CT150,ST150	05/1984 - 07/1985	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01017	AT15#,CT150,ST150	05/1984 - 04/1988	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01016	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015	AT15#,CT150,ST150	05/1984 - 04/1988	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015	AT15#,CT150,ST150	05/1984 - 04/1988	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01015	AT15#,CT150,ST150	05/1984 - 04/1988	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-29016	AT15#,CT150,ST150	07/1985 - 04/1988	1
46430-29015	AT15#,CT150,ST150	05/1984 - 07/1985	1
46458 - RETAINER, CABLE
46458-20020	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	2
46458 - RETAINER, CABLE
46458-20020	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	2
Common parts
90119-06197
90119-06198
90119-06315
90119-08146
90170-06004
90179-06058
91611-60612
94180-40600

AT150-AEPFS (1984)

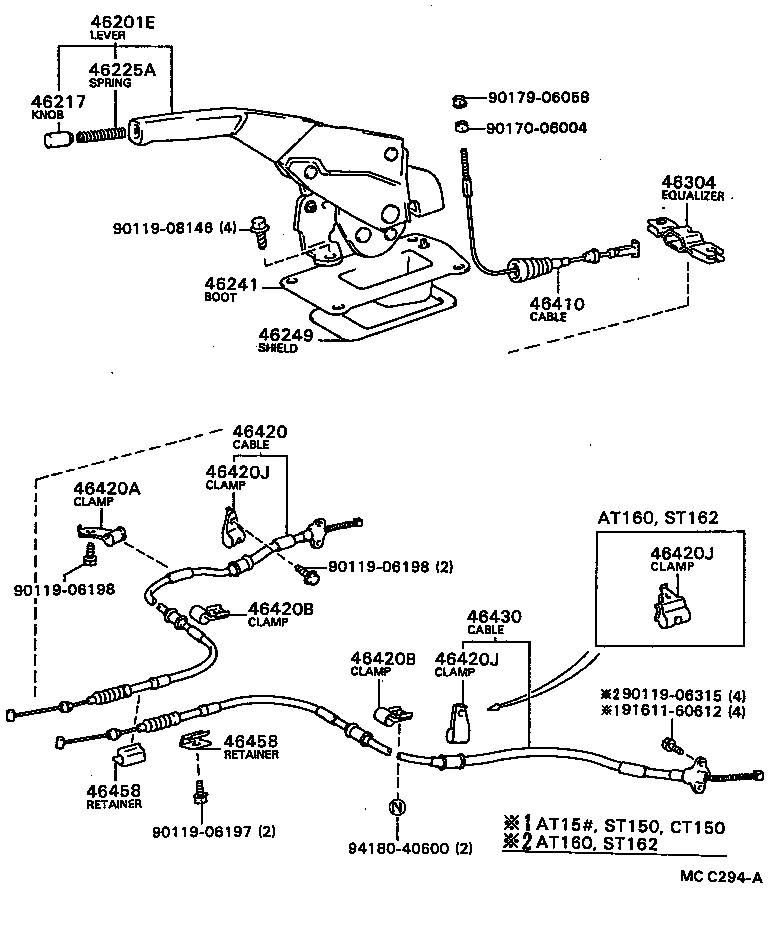

ILLUST NO. 1 OF 2(8405- )
