Toyota Carina ff AT150 FRONT CLEARANCE LAMP

AT150-AEMFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988

Engine 3ALU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

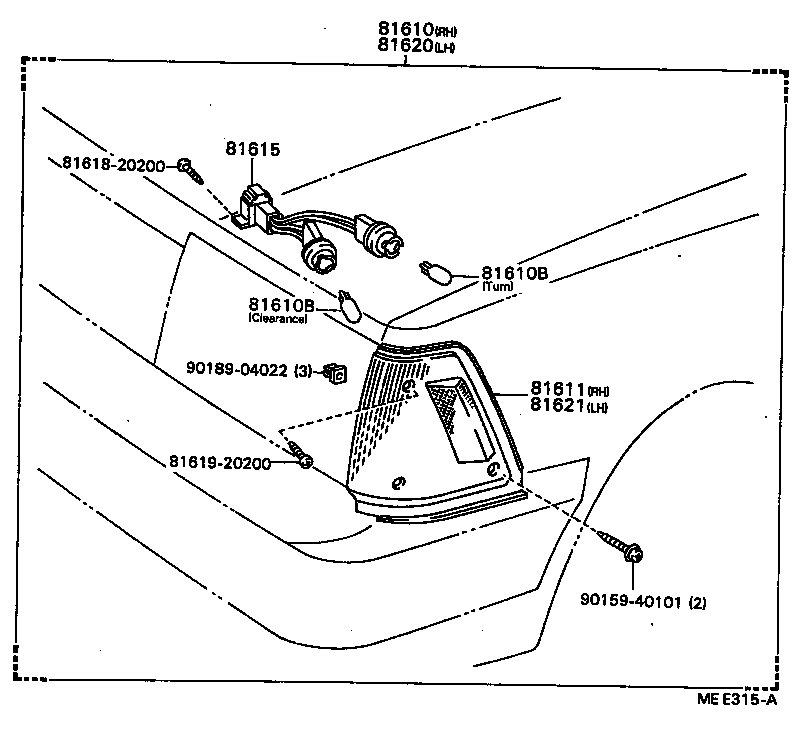

Click highlighted areas on diagram

Part #	Description	Period	Qty
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81610-29395	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050	AT15#,160,CT150,ST150,162 12V 5W,12V 5W	05/1984 - 04/1988	4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050	AT15#,160,CT150,ST150,162 12V 5W,12V 5W	05/1984 - 04/1988	4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81611-20200	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-20200	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	2
81615-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29385	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81620-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81621-20200	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
Common parts
81618-20200
81619-20200
90159-40101
90189-04022

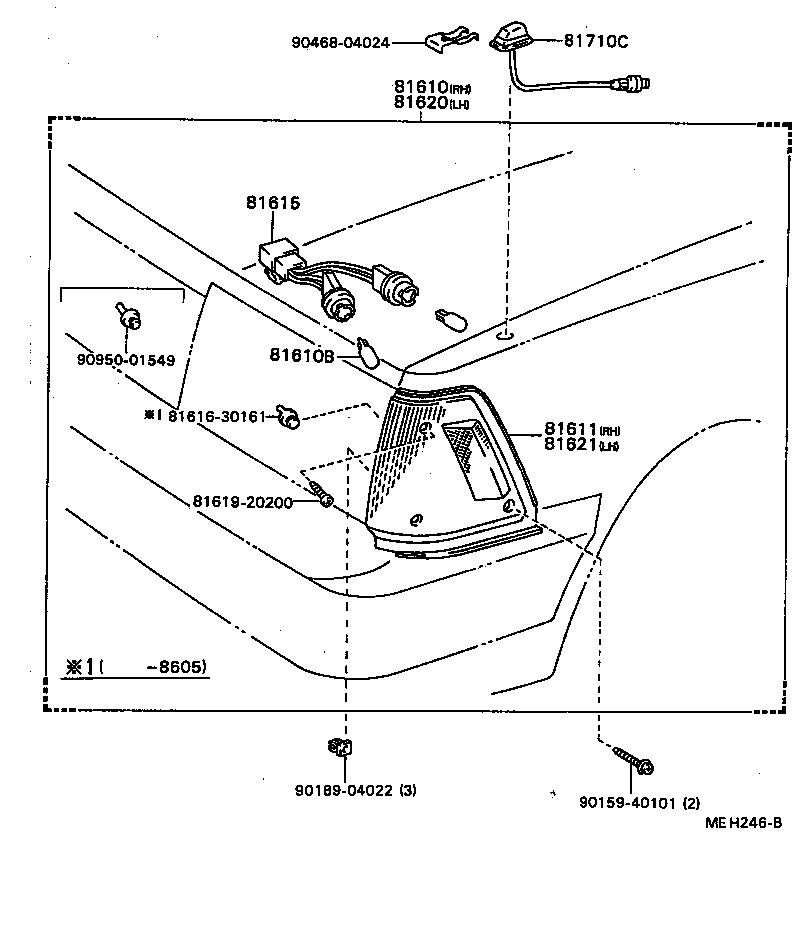

Click highlighted areas on diagram

Part #	Description	Period	Qty
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81610-29395	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050	AT15#,160,CT150,ST150,162 12V 5W,12V 5W	05/1984 - 04/1988	4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81611-20200	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-20200	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	2
81615-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29385	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81620-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20330	AT15#,160,CT150,ST150,162	05/1986 - 04/1988	1
81621-20200	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
81710C - MARKER ASSY, FENDER
81710-20020	AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST	05/1986 - 04/1988	2
Common parts
81616-30161
81619-20200
90159-40101
90189-04022
90468-04024
90950-01549
