AT150-AEMFS (1984)
Toyota Carina Ff

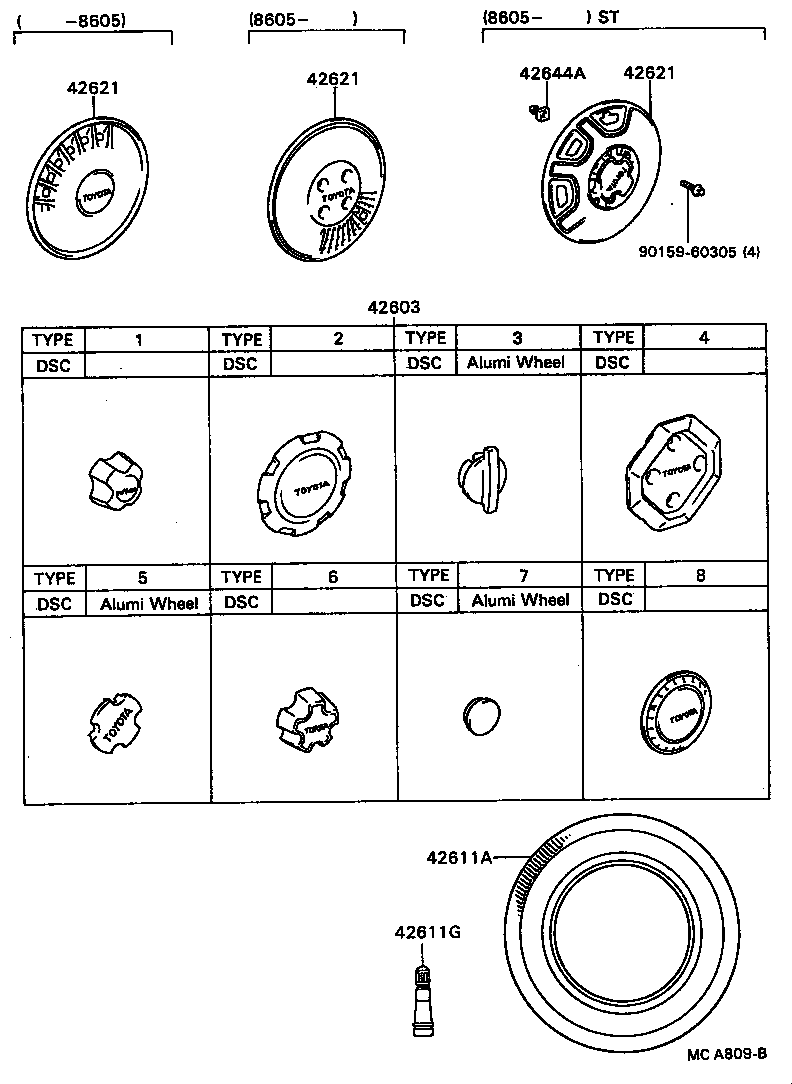

ILLUST NO. 1 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-20090 |
AT15#,CT150..SG TYPE 2 |
4 | ||
| 42603-20200 |
AT150..(4FC,5F)..SG TYPE 8,SG EXTRA |
4 | ||
| 42603-20190 |
AT15#,CT150,ST150..SG TYPE 8 |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-12430 |
AT150,CT150,ST150 175/70SR13 |
4 | ||
| 42652-12410 |
AT15#,CT150,ST150 165SR13 |
4 | ||
| 42652-16220 |
AT15#,CT150,ST150 T115/70D14,SPARE |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AT15#,160,CT150,ST150,162 |
5 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-20280 |
AT150..SG MY ROAD |
4 | ||
| 42621-20290 |
AT150,CT150,ST150..SG JEUNE OR MY ROAD |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-20280 |
AT150..SG MY ROAD |
4 | ||
| 42621-20290 |
AT150,CT150,ST150..SG JEUNE OR MY ROAD |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-20280 |
AT150..SG MY ROAD |
4 | ||
| 42621-20290 |
AT150,CT150,ST150..SG JEUNE OR MY ROAD |
4 | ||
| Common parts | ||||
| 90159-60305 | ||||

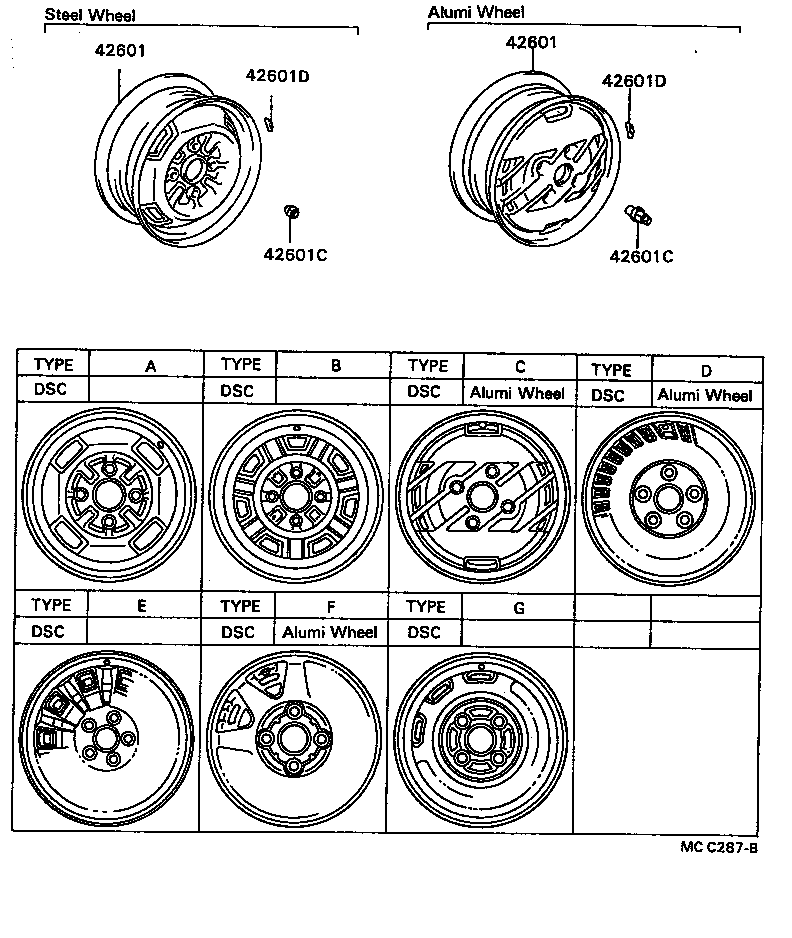

ILLUST NO. 2 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-1617001 |
AT15#,CT150..DX,SG 13X5J,5J-13,TYPE B,SILVER |
4 | ||
| 42611-20300 |
AT150..SG 13X5J,5J-13,TYPE B,JEUNE,MY ROAD |
4 | ||
| 42611-16200 |
AT15#,CT150,ST150 14X4T,SPARE TIRE |
1 | ||
| 42611-20300 |
AT150,CT150,ST150..SG 13X5J,5J-13,TYPE B,JEUNE OR MY ROAD |
4 | ||
| 42611-20410 |
AT15#,CT150,ST150..SG 13X5J,5J-13,TYPE G |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-1617001 |
AT15#,CT150..DX,SG 13X5J,5J-13,TYPE B,SILVER |
4 | ||
| 42611-20300 |
AT150..SG 13X5J,5J-13,TYPE B,JEUNE,MY ROAD |
4 | ||
| 42611-16200 |
AT15#,CT150,ST150 14X4T,SPARE TIRE |
1 | ||
| 42611-20300 |
AT150,CT150,ST150..SG 13X5J,5J-13,TYPE B,JEUNE OR MY ROAD |
4 | ||
| 42611-20410 |
AT15#,CT150,ST150..SG 13X5J,5J-13,TYPE G |
4 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
AT15#,CT150,ST150..SE,SG |
16 | ||
| 90942-01007 |
AT15#,CT150,ST150..SG |
16 | ||
| 90942-01021 |
AT150,CT150,ST150..SG JEUNE OR MY ROAD |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
AT15#,CT150,ST150..SE,SG |
16 | ||
| 90942-01007 |
AT15#,CT150,ST150..SG |
16 | ||
| 90942-01021 |
AT150,CT150,ST150..SG JEUNE OR MY ROAD |
20 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
AT15#,160,CT150,ST150 30G,厚さ=10,30G |
1 | ||
| 90942-03098 |
AT15#,160,CT150,ST150 15G,15G |
1 | ||
| 90942-03029 |
AT15#,160,CT150,ST150 70G,厚さ=9.5,70G |
1 | ||
| 90942-03031 |
AT15#,160,CT150,ST150 80G,厚さ=9.5,80G |
1 | ||
| 90942-03108 |
AT15#,160,CT150,ST150 65G,65G |
1 | ||
| 90942-03022 |
AT15#,160,CT150,ST150 40G,厚さ=9.5,40G |
1 | ||
| 90942-03099 |
AT15#,160,CT150,ST150 25G,25G |
1 | ||
| 90942-03027 |
AT15#,160,CT150,ST150 60G,厚さ=9.5,60G |
1 | ||
| 90942-03017 |
AT15#,160,CT150,ST150 20G,厚さ=8,20G |
1 | ||
| 90942-03102 |
AT15#,160,CT150,ST150 55G,55G |
1 | ||
| 90942-03025 |
AT15#,160,CT150,ST150 50G,厚さ=9.5,50G |
1 | ||
| 90942-03101 |
AT15#,160,CT150,ST150 45G,45G |
1 | ||
| 90942-03109 |
AT15#,160,CT150,ST150 75G,75G |
1 | ||
| 90942-03100 |
AT15#,160,CT150,ST150 35G,35G |
1 | ||
| 90942-03161 |
AT15#,160,CT150,ST150 5G,5G |
1 | ||
| 90942-03041 |
AT15#,160,CT150,ST150 10G,厚さ=7.5,10G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
AT15#,160,CT150,ST150 30G,厚さ=10,30G |
1 | ||
| 90942-03098 |
AT15#,160,CT150,ST150 15G,15G |
1 | ||
| 90942-03029 |
AT15#,160,CT150,ST150 70G,厚さ=9.5,70G |
1 | ||
| 90942-03031 |
AT15#,160,CT150,ST150 80G,厚さ=9.5,80G |
1 | ||
| 90942-03108 |
AT15#,160,CT150,ST150 65G,65G |
1 | ||
| 90942-03022 |
AT15#,160,CT150,ST150 40G,厚さ=9.5,40G |
1 | ||
| 90942-03099 |
AT15#,160,CT150,ST150 25G,25G |
1 | ||
| 90942-03027 |
AT15#,160,CT150,ST150 60G,厚さ=9.5,60G |
1 | ||
| 90942-03017 |
AT15#,160,CT150,ST150 20G,厚さ=8,20G |
1 | ||
| 90942-03102 |
AT15#,160,CT150,ST150 55G,55G |
1 | ||
| 90942-03025 |
AT15#,160,CT150,ST150 50G,厚さ=9.5,50G |
1 | ||
| 90942-03101 |
AT15#,160,CT150,ST150 45G,45G |
1 | ||
| 90942-03109 |
AT15#,160,CT150,ST150 75G,75G |
1 | ||
| 90942-03100 |
AT15#,160,CT150,ST150 35G,35G |
1 | ||
| 90942-03161 |
AT15#,160,CT150,ST150 5G,5G |
1 | ||
| 90942-03041 |
AT15#,160,CT150,ST150 10G,厚さ=7.5,10G |
1 | ||
