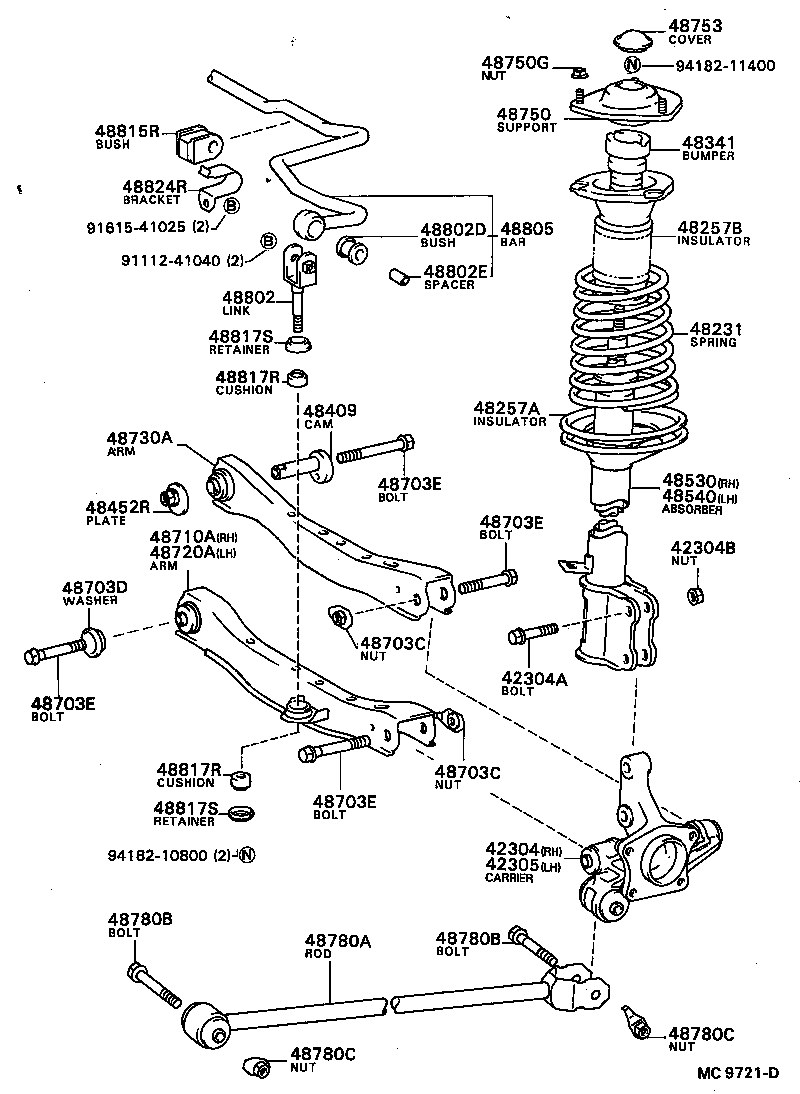

AT150-AEMES (1984)
Toyota Carina Ff
(8405- )AT15#,CT150,ST150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-32010 |
AT15#,CT150,ST150 |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90105-12042 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 90105-12042 |
AT15#,CT150,ST150 |
4 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-12025 |
AT15#,CT150,ST150 |
4 | ||
| 90179-12025 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-32010 |
AT15#,CT150,ST150 |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-20250 |
AT150,CT150,ST150 |
1 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-16010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-32030 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-32020 |
AT15#,CT150,ST150 |
2 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32010 |
AT15#,CT150,ST150 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-20010 |
AT150,CT150,ST150 |
1 | ||
| 48530-20030 |
AT150 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-20010 |
AT150,CT150,ST150 |
1 | ||
| 48540-20030 |
AT150 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12049 |
AT15#,160,CT150,ST150,162 ARM NO.1 X BODY |
2 | ||
| 90179-12062 |
AT15#,CT150,ST150 ARM NO.1 X CARRIER,ARM NO.2 |
4 | ||
| 90179-12023 |
AT15#,CT150,ST150 ARM NO.1 X CARRIER,ARM NO.2 |
4 | ||
| 90179-12063 |
AT15#,160,CT150,ST150,162 ARM NO.1 X BODY |
2 | ||
| 90179-12033 |
AT15#,CT150,ST150 ARM NO.1 X BODY |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12049 |
AT15#,160,CT150,ST150,162 ARM NO.1 X BODY |
2 | ||
| 90179-12062 |
AT15#,CT150,ST150 ARM NO.1 X CARRIER,ARM NO.2 |
4 | ||
| 90179-12023 |
AT15#,CT150,ST150 ARM NO.1 X CARRIER,ARM NO.2 |
4 | ||
| 90179-12063 |
AT15#,160,CT150,ST150,162 ARM NO.1 X BODY |
2 | ||
| 90179-12033 |
AT15#,CT150,ST150 ARM NO.1 X BODY |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90209-13005 |
AT15#,CT150,ST150 ARM NO.1 X BODY |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12035 |
AT15#,CT150,ST150 *12-1.25PX78-25, ARM NO.1 |
4 | ||
| 90105-12037 |
AT15#,CT150,ST150 *12-1.25PX60-25, ARM NO.2 |
2 | ||
| 90105-12070 |
AT15#,CT150,ST150 *12-1.25PX63-25,ARM NO.2 |
2 | ||
| 90105-10052 |
AT15#,CT150,ST150 *10-1.25PX77-20 |
2 | ||
| 90105-12147 |
AT15#,160,CT150,ST150,162 *12−1.25PX74.5−25,*12-1.25PX74.5-25,ARM NO.1 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12035 |
AT15#,CT150,ST150 *12-1.25PX78-25, ARM NO.1 |
4 | ||
| 90105-12037 |
AT15#,CT150,ST150 *12-1.25PX60-25, ARM NO.2 |
2 | ||
| 90105-12070 |
AT15#,CT150,ST150 *12-1.25PX63-25,ARM NO.2 |
2 | ||
| 90105-10052 |
AT15#,CT150,ST150 *10-1.25PX77-20 |
2 | ||
| 90105-12147 |
AT15#,160,CT150,ST150,162 *12−1.25PX74.5−25,*12-1.25PX74.5-25,ARM NO.1 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12035 |
AT15#,CT150,ST150 *12-1.25PX78-25, ARM NO.1 |
4 | ||
| 90105-12037 |
AT15#,CT150,ST150 *12-1.25PX60-25, ARM NO.2 |
2 | ||
| 90105-12070 |
AT15#,CT150,ST150 *12-1.25PX63-25,ARM NO.2 |
2 | ||
| 90105-10052 |
AT15#,CT150,ST150 *10-1.25PX77-20 |
2 | ||
| 90105-12147 |
AT15#,160,CT150,ST150,162 *12−1.25PX74.5−25,*12-1.25PX74.5-25,ARM NO.1 |
4 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12035 |
AT15#,CT150,ST150 *12-1.25PX78-25, ARM NO.1 |
4 | ||
| 90105-12037 |
AT15#,CT150,ST150 *12-1.25PX60-25, ARM NO.2 |
2 | ||
| 90105-12070 |
AT15#,CT150,ST150 *12-1.25PX63-25,ARM NO.2 |
2 | ||
| 90105-10052 |
AT15#,CT150,ST150 *10-1.25PX77-20 |
2 | ||
| 90105-12147 |
AT15#,160,CT150,ST150,162 *12−1.25PX74.5−25,*12-1.25PX74.5-25,ARM NO.1 |
4 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-32020 |
AT150,CT150,ST150 |
1 | ||
| 48710-32021 |
AT150,CT150,ST150 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-32020 |
AT150,CT150,ST150 |
1 | ||
| 48710-32021 |
AT150,CT150,ST150 |
1 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-32010 |
AT15#,CT150,ST150 |
2 | ||
| 48730-32011 |
AT15#,CT150,ST150 |
2 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-32010 |
AT15#,CT150,ST150 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08054 |
AT15#,CT150,ST150 |
6 | ||
| 90179-08095 |
AT15#,160,CT150,ST150,162 |
6 | ||
| 90179-08111 |
AT15#,160,CT150,ST150,162 |
6 | ||
| 48753 - COVER, REAR SUSPENSION SUPPORT | ||||
| 48753-32010 |
AT15#,CT150,ST150 |
2 | ||
| 48753-16010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-20010 |
AT15#,CT150,ST150 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-12035 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 90105-12082 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 90119-12131 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90105-12035 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 90105-12082 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 90119-12131 |
AT15#,160,CT150,ST150,162 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12033 |
AT15#,CT150,ST150 BODY SIDE |
2 | ||
| 90179-12063 |
AT15#,160,CT150,ST150,162 BODY SIDE |
2 | ||
| 90179-12062 |
AT15#,160,CT150,ST150,162 CARRIER SIDE |
2 | ||
| 90179-12049 |
AT15#,160,CT150,ST150,162 BODY SIDE |
2 | ||
| 90179-12023 |
AT15#,160,CT150,ST150,162 CARRIER SIDE |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12033 |
AT15#,CT150,ST150 BODY SIDE |
2 | ||
| 90179-12063 |
AT15#,160,CT150,ST150,162 BODY SIDE |
2 | ||
| 90179-12062 |
AT15#,160,CT150,ST150,162 CARRIER SIDE |
2 | ||
| 90179-12049 |
AT15#,160,CT150,ST150,162 BODY SIDE |
2 | ||
| 90179-12023 |
AT15#,160,CT150,ST150,162 CARRIER SIDE |
2 | ||
| Common parts | ||||
| 91112-41040 | ||||
| 91615-41025 | ||||
| 94182-10800 | ||||
| 94182-11400 | ||||
