AT150-AEKFS (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
3ALU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

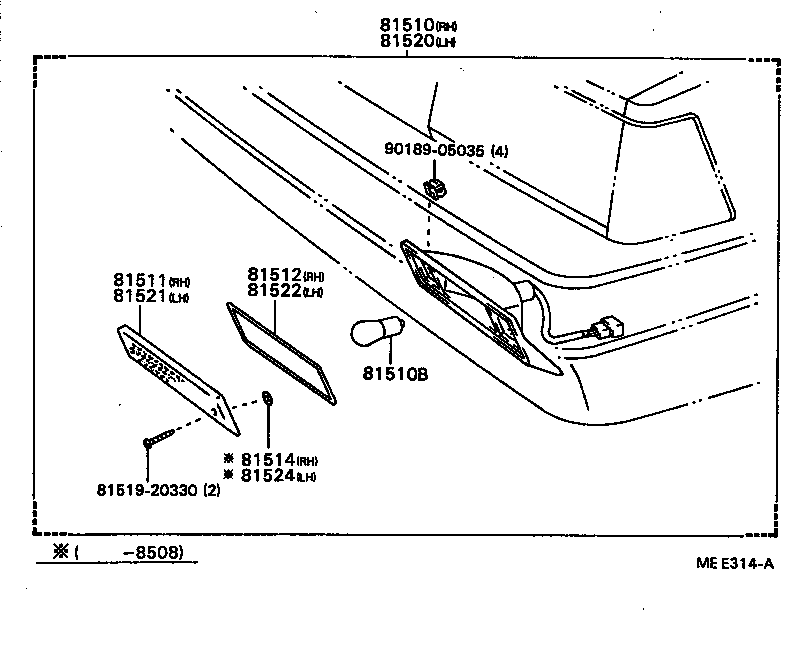

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80034 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81510-80011 |
AT15#,CT150,ST150 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11230 |
AT15#,160,CT150,ST150,162 12V 23W,12V 23W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-20330 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-20330 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH | ||||
| 81514-20330 |
AT15#,CT150,ST150 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80034 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81520-80011 |
AT15#,CT150,ST150 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-20330 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-20330 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH | ||||
| 81514-20330 |
AT15#,CT150,ST150 |
1 | ||
| Common parts | ||||
| 81519-20330 | ||||
| 90189-05035 | ||||
