AT150-AEKFS (1984)
Toyota Carina Ff
(8405- )

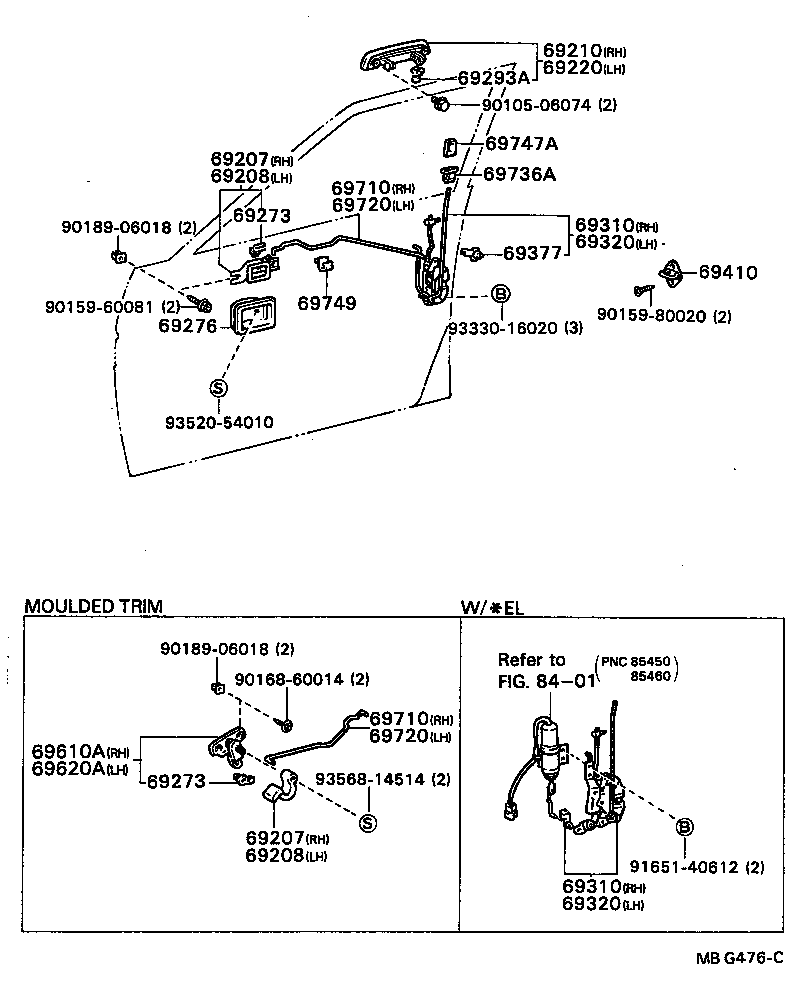

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-1207004 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
1 | ||
| 69205-1207016 |
AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69205-1207003 |
AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69205-1207016 |
AT15#,CT150..SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69205-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69205-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-2008005 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-2008004 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69271-2008005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-2008003 |
AT15#,160,CT150,ST150 GRAY,MEDIUN GRAY,TRIM1# |
1 | ||
| 69205-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-1207004 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
1 | ||
| 69205-1207016 |
AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69205-1207003 |
AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69205-1207016 |
AT15#,CT150..SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69205-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69205-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-2008005 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-2008004 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69271-2008005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-2008003 |
AT15#,160,CT150,ST150 GRAY,MEDIUN GRAY,TRIM1# |
1 | ||
| 69205-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69205-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69205-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-1207003 |
AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69206-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-1207016 |
AT15#,CT150..SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69206-1207016 |
AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69206-2009003 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-2009004 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-1207004 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-2009005 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69272-2005005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-1207003 |
AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 69206-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-1207016 |
AT15#,CT150..SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69206-1207016 |
AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 69206-2009003 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-2009004 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-1207004 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69206-2009005 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-1207054 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69206-1207025 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69206-1207033 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 69272-2005005 |
AT150,CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20100 |
AT15#,CT150,ST150..SE,SG |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20100 |
AT15#,CT150,ST150..SE,SG |
1 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69759-20070 |
AT15#,160,CT150,ST150,162 LH |
1 | ||
| 69759-20070 |
AT15#,160,CT150,ST150 LH |
1 | ||
| 69759-20060 |
AT15#,160,CT150,ST150 RH |
1 | ||
| 69759-20060 |
AT15#,160,CT150,ST150,162 RH |
1 | ||
| 69759-14050 |
AT15#,160,CT150,ST150 RH |
1 | ||
| 69759-24070 |
AT15#,160,CT150,ST150 LH |
1 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69759-20070 |
AT15#,160,CT150,ST150,162 LH |
1 | ||
| 69759-20070 |
AT15#,160,CT150,ST150 LH |
1 | ||
| 69759-20060 |
AT15#,160,CT150,ST150 RH |
1 | ||
| 69759-20060 |
AT15#,160,CT150,ST150,162 RH |
1 | ||
| 69759-14050 |
AT15#,160,CT150,ST150 RH |
1 | ||
| 69759-24070 |
AT15#,160,CT150,ST150 LH |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-3202033 |
AT15#,160,CT150,ST150,162 SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 69277-3202043 |
AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 69277-3202026 |
AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
2 | ||
| 69277-3202004 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
2 | ||
| 69277-3202010 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69277-3202026 |
AT15#,CT150..SG SEPIA BROWN,BROWN,TRIM4# |
2 | ||
| 69277-3202054 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
2 | ||
| 69277-3202044 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-16050 |
AT15#,CT150,ST150..SE,SG RH |
1 | ||
| 69293-16060 |
AT15#,CT150,ST150..SE,SG LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69310-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69310-20570 |
AT150,CT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69310-20380 |
AT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69310-20560 |
AT15#,160,CT150,ST150 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69310-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69310-20570 |
AT150,CT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69310-20380 |
AT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69310-20560 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20560 |
AT150,CT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69320-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320-20550 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320-20280 |
AT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-20560 |
AT150,CT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69320-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320-20550 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320-20270 |
AT15#,160,CT150,ST150 |
1 | ||
| 69320-20280 |
AT150,ST150..SG MY ROAD,W/*EL |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-20080 |
AT15#,160,CT150,ST150,162 RH |
2 | ||
| 69759-24050 |
AT15#,160,CT150,ST150,162 RH |
2 | ||
| 69759-20090 |
AT15#,160,CT150,ST150,162 LH |
2 | ||
| 69759-24060 |
AT15#,160,CT150,ST150,162 LH |
2 | ||
| 69759-20090 |
AT15#,160,CT150,ST150,162 LH |
2 | ||
| 69759-20080 |
AT15#,160,CT150,ST150,162 RH |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-12050 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH | ||||
| 69610-20070 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH | ||||
| 69620-20040 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69711-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69711-20080 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 69711-20140 |
AT15#,160,CT150,ST150 |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69711-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69711-20080 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 69711-20140 |
AT15#,160,CT150,ST150 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-20140 |
AT15#,160,CT150,ST150 |
1 | ||
| 69712-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69712-20080 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 69712-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-20140 |
AT15#,160,CT150,ST150 |
1 | ||
| 69712-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69712-20080 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 69712-20070 |
AT15#,160,CT150,ST150 |
1 | ||
| 69736A - GUIDE, FRONT DOOR LOCK LINK | ||||
| 69736-22021 |
AT15#,CT150,ST150 |
2 | ||
| 69736-12030 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-3201004 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3201036 |
AT15#,CT150..SG SEPIA BROWN,BROWN,TRIM4# |
2 | ||
| 69741-3201015 |
AT15#,CT150,ST150..SE,SG,ST BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69741-3201036 |
AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
2 | ||
| 69741-3201023 |
AT15#,160,CT150,ST150,162 SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 69741-3201044 |
AT15#,CT150,ST150 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3201034 |
AT15#,CT150,ST150..SE,SG,ST BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69741-3201043 |
AT15#,160,CT150,ST150,162 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-20010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 69749-12010 |
AT15#,160,CT150,ST150 |
2 | ||
| 69749-20010 |
AT15#,160,CT150,ST150 |
2 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60081 | ||||
| 90159-80020 | ||||
| 90168-60014 | ||||
| 90189-06018 | ||||
| 91651-40612 | ||||
| 93330-16020 | ||||
| 93520-54010 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
