AT150-AEKFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

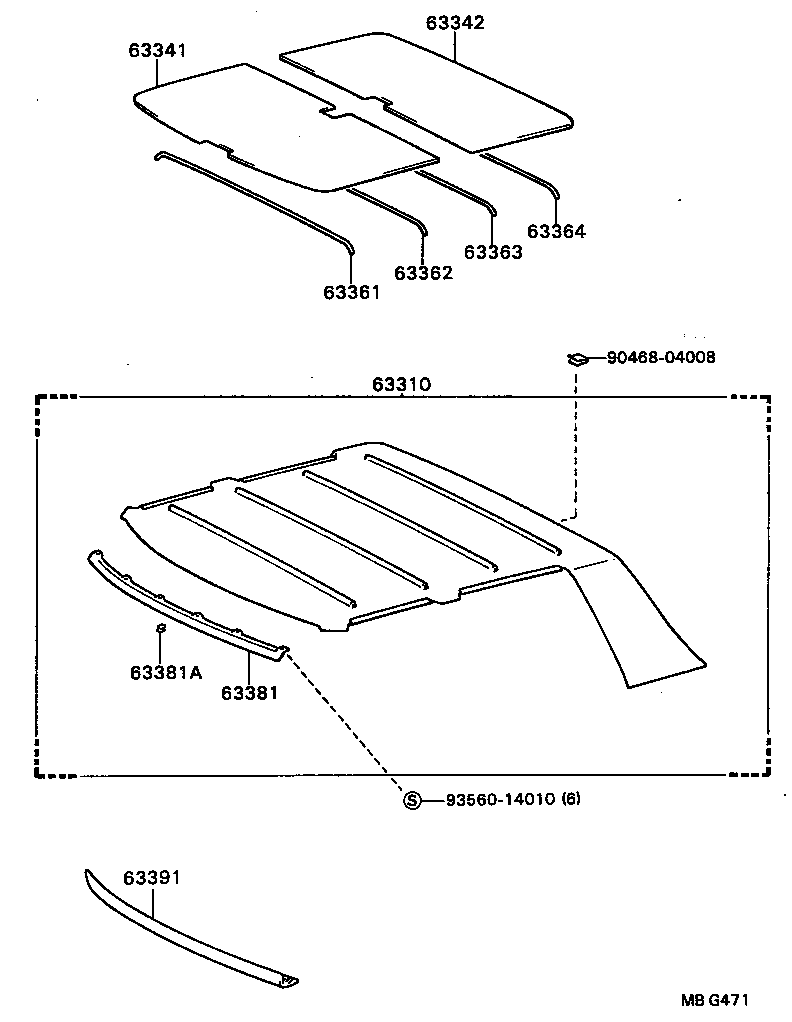

ILLUST NO. 1 OF 2(8405- )

Click highlighted areas on diagram

diagram 63310 63341 63342 63361 63362 63363 63364 63381 63381A 63391 9046804008 9356014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2046005

AT15#,CT150..DX,SG

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

 1
63310-2046005

AT15#,CT150,ST150..SG,ST

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

 1
63310-2046005

AT15#,CT150..SG

W/O SUN ROOF,BEIGE,BEIGE,TRIM4#

 1
63310-2046003

AT15#,160,CT150,ST150..DX,GT,SG,ST

W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-14030

AT15#,160,CT150,ST150,162

 1
63341-20140

AT15#,160,CT150,ST150,162

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-14030

AT15#,160,CT150,ST150,162

 1
63341-20140

AT15#,160,CT150,ST150,162

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-20090

AT15#,160,CT150,ST150,162

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-20090

AT15#,160,CT150,ST150,162

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-20090

AT15#,160,CT150,ST150,162

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63362-20090

AT15#,160,CT150,ST150,162

 1
63381 - RETAINER, HEADLINING, FRONT
63381-20050

AT15#,160,CT150,ST150,162

 1
63381A - CLIP, HEADLINING RETAINER
90468-04010

AT15#,160,CT150,ST150,162

 6
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2008003

AT15#,160,CT150,ST150,162

SHADOW GRAY,GRAY,TRIM1#

 1
63391-2007003

AT15#,CT150,ST150

SHADOW GRAY,GRAY,TRIM1#

 1
63391-2008004

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 1
63391-2008006

AT15#,CT150..DX,SG

SEPIA BROWN,BROWN,TRIM4#

 1
63391-2007006

AT15#,CT150..DX,SG

SEPIA BROWN,BROWN,TRIM4#

 1
63391-2008006

AT15#,CT150..SG

SEPIA BROWN,BROWN,TRIM4#

 1
63391-2007004

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 1
63391-2008013

AT15#,160,CT150,ST150,162

GRAY,MEDIUM GRAY,TRIM1#

 1
63391-2008005

AT15#,CT150,ST150..SE,SG,ST

BEIGE,DARK BEIGE,TRIM4#

 1
63391-2008014

AT15#,CT150,ST150..SE,SG,ST

BLUE,DARK BLUE,TRIM8#

 1
Common parts
90468-04008
93560-14010
