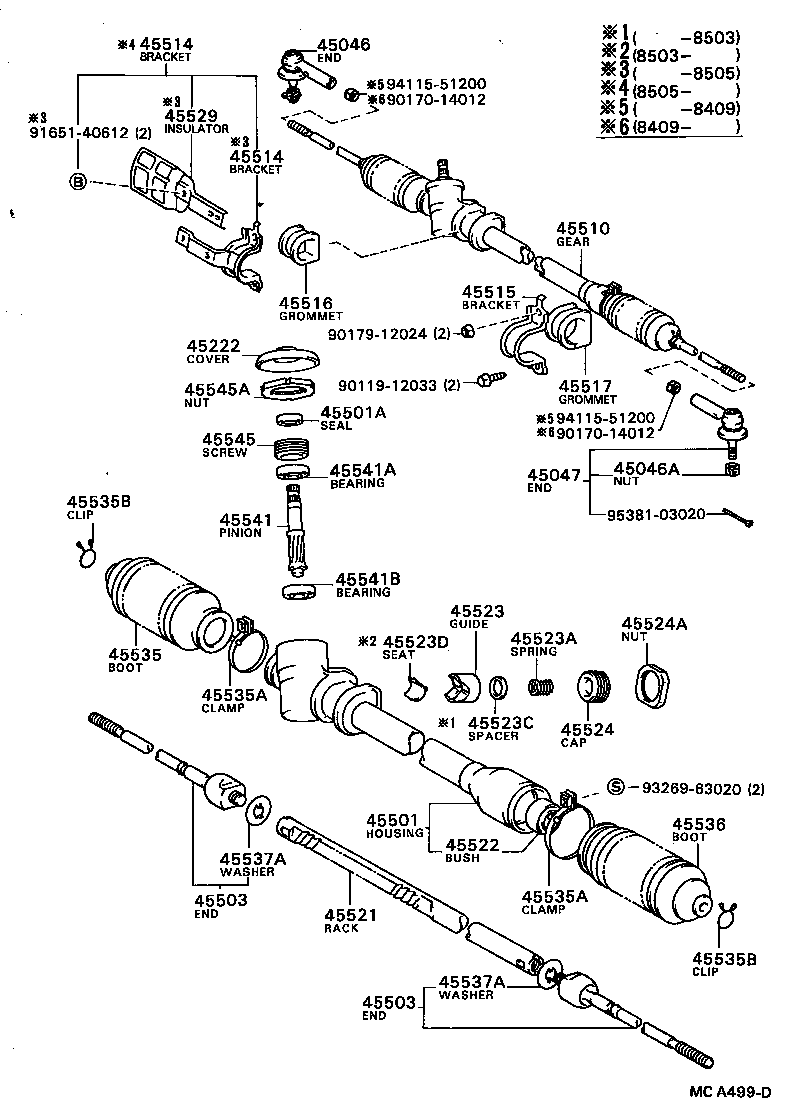

AT150-AEKFS (1984)
Toyota Carina Ff
(8405- )AT15#..DX,SG,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AT15#,CT150,ST150 |
1 | ||
| 45046-19175 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45046-29135 |
AT15#,CT150,ST150 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
AT15#..DX,SG,ST |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-12090 |
AT15#..DX,SG,ST |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AT15#..DX,SG,ST |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19035 |
AT15#..DX,SG,ST |
2 | ||
| 45503-19036 |
AT15#..DX,SG,ST |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19035 |
AT15#..DX,SG,ST |
2 | ||
| 45503-19036 |
AT15#..DX,SG,ST |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-12080 |
AT15#..DX,SG,ST |
1 | ||
| 45510-12081 |
AT15#..DX,SG,ST |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AT15#..DX,SG,ST |
1 | ||
| 45515-12070 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45515-12070 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45515-12070 |
AT150,CT150,ST150..SE,SG W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12060 |
AT150,CT150,ST150..SE,SG W/POWER STEERING,TOYOTA |
1 | ||
| 45517-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45517-12060 |
AT15#,CT150,ST150..SE,SG,ST W/POWER STEERING,TOYOTA |
1 | ||
| 45517-20020 |
AT150,CT150,ST150..SE,SG W/POWER STEERING,TOYODA KOKI |
1 | ||
| 45517-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG W/POWER STEERING,TOYODA KOKI |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-12110 |
AT15#..DX,SG,ST |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10021 |
AT15#..DX,SG,ST |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
AT15#..DX,SG,ST |
1 | ||
| 45523-17012 |
AT15#..DX,SG,ST |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AT15#..DX,SG,ST |
1 | ||
| 90501-28007 |
AT15#..DX,SG,ST |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AT15#..DX,SG,ST |
1 | ||
| 45523D - SEAT, RACK GUIDE | ||||
| 44277-17010 |
AT15#..DX,SG,ST |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12020 |
AT15#..DX,SG,ST |
1 | ||
| 45524-16010 |
AT15#..DX,SG,ST |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AT15#..DX,SG,ST |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-12010 |
AT15# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AT15#..DX,SG,ST |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AT15#..DX,SG,ST NO.1 |
1 | ||
| 90949-01082 |
AT15#..DX,SG,ST NO.2 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AT15#..DX,SG,ST NO.1 |
1 | ||
| 90949-01082 |
AT15#..DX,SG,ST NO.2 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AT15#..DX,SG,ST |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AT15#..DX,SG,ST |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12030 |
AT15#..DX,SG,ST |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AT15#..DX,SG,ST |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AT15#..DX,SG,ST |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AT15#..DX,SG,ST |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AT15#..DX,SG,ST |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AT15#..DX,SG,ST |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AT15#..DX,SG,ST |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

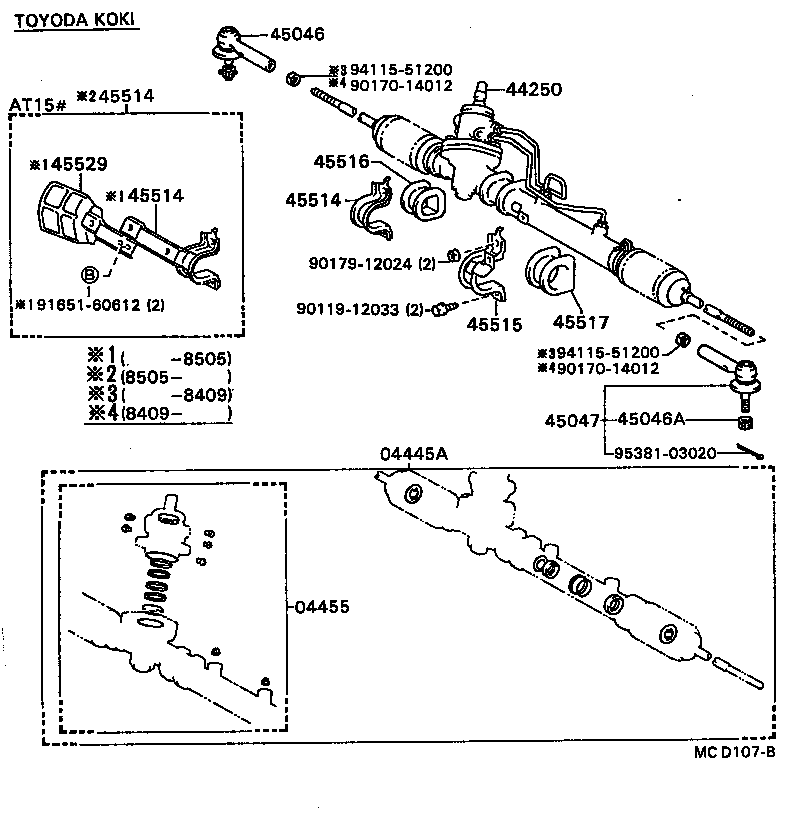

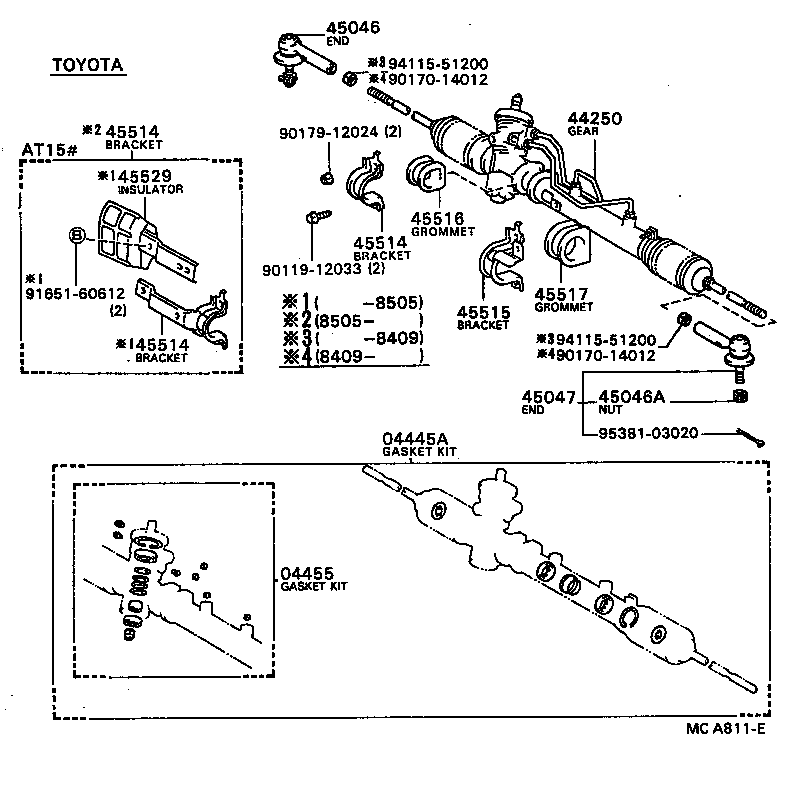

ILLUST NO. 1 OF 2(8405-8508)ST ; (8405-8508)AT150,CT150,ST150..SE,SG ; (8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 04445-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 04445-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 04445-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12010 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 04455-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 04455-20040 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 04455-12010 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20040 |
AT150..SE,SG TOYODA KOKI |
1 | ||
| 44250-20041 |
AT150..SE,SG TOYODA KOKI |
1 | ||
| 44250-12031 |
AT150..SE,SG TOYOTA |
1 | ||
| 44250-12031 |
AT15#..SE,SG TOYOTA |
1 | ||
| 44250-12030 |
AT150..SE,SG TOYOTA |
1 | ||
| 44250-20041 |
AT15#..SE,SG TOYODA KOKI |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AT15#,CT150,ST150 |
1 | ||
| 45046-19175 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45046-29135 |
AT15#,CT150,ST150 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AT15#..DX,SG,ST |
1 | ||
| 45515-12070 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45515-12070 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45515-12070 |
AT150,CT150,ST150..SE,SG W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12060 |
AT150,CT150,ST150..SE,SG W/POWER STEERING,TOYOTA |
1 | ||
| 45517-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45517-12060 |
AT15#,CT150,ST150..SE,SG,ST W/POWER STEERING,TOYOTA |
1 | ||
| 45517-20020 |
AT150,CT150,ST150..SE,SG W/POWER STEERING,TOYODA KOKI |
1 | ||
| 45517-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG W/POWER STEERING,TOYODA KOKI |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-12010 |
AT15# |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-60612 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||

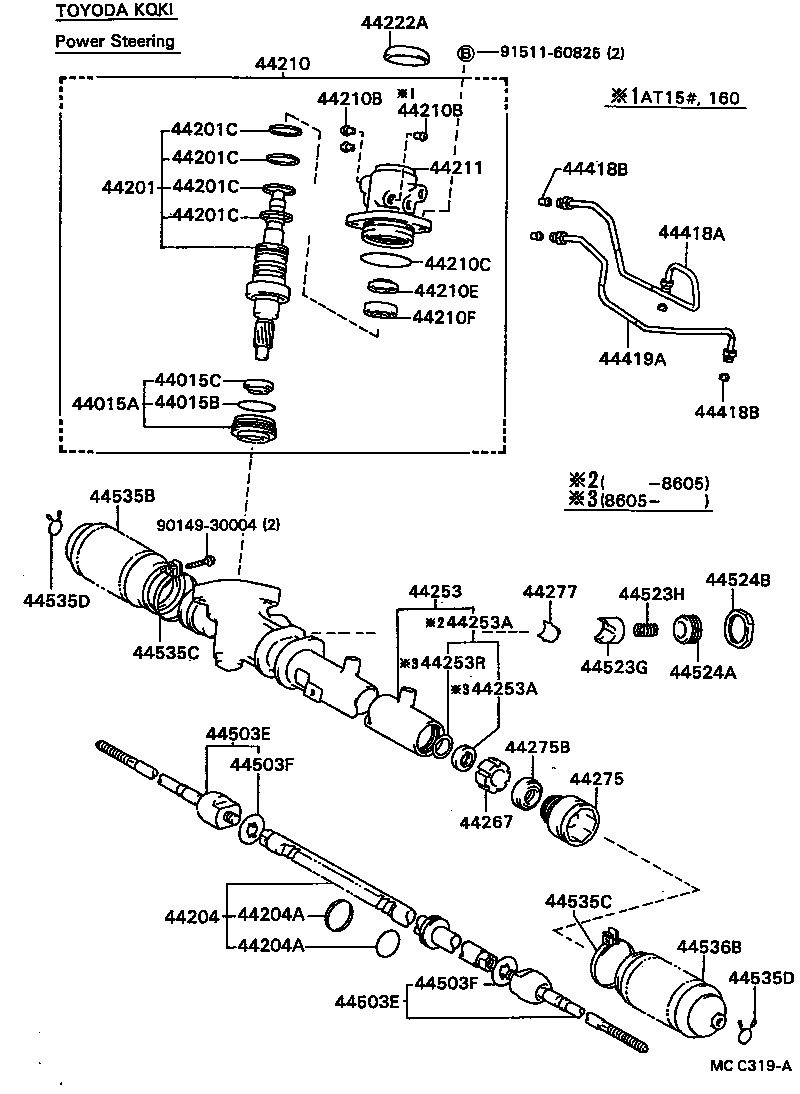

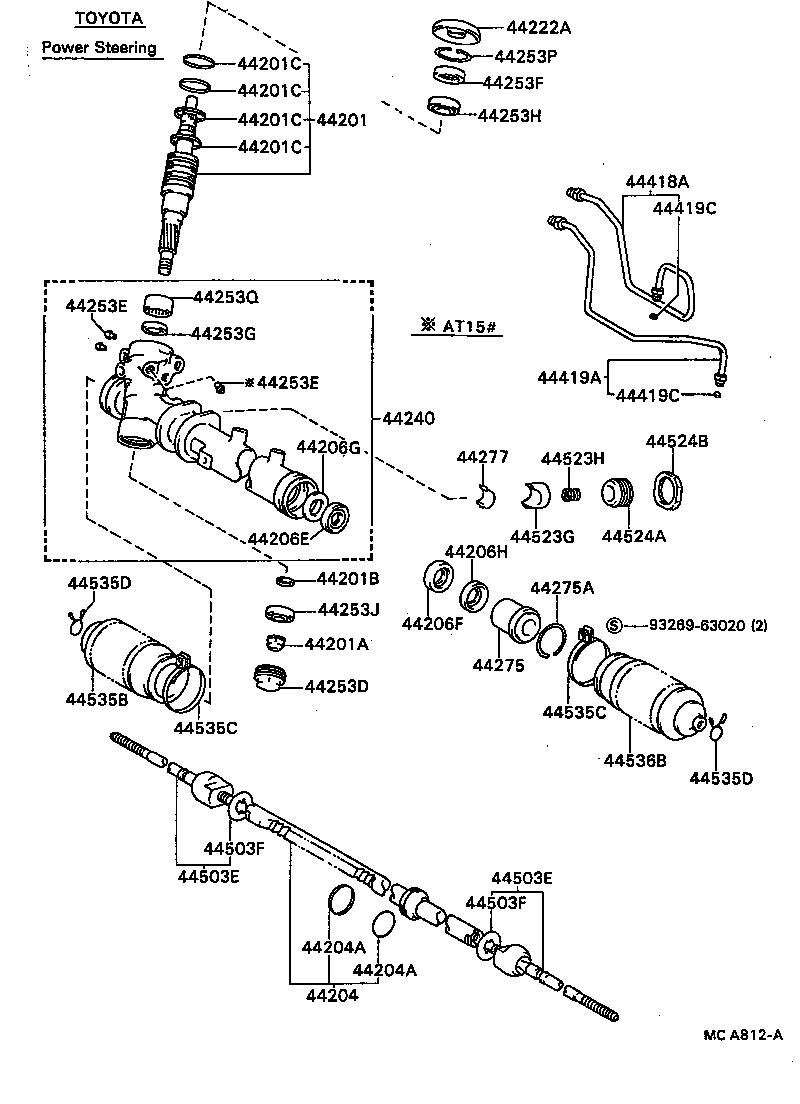

ILLUST NO. 2 OF 2(8405-8508)ST ; (8405-8508)AT150,CT150,ST150..SE,SG ; (8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12030 |
AT15#,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44201-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44201-20021 |
AT15#,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44201-20130 |
AT15#,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44201-20021 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-12073 |
AT15#,CT150,ST150..DX,SG,ST |
1 | ||
| 94184-61200 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 94184-61200 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90560-12030 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44204-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44204-20030 |
AT15#,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44204-12030 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT150,CT150,ST150..SE,SG INNER,TOYOTA |
1 | ||
| 90301-33003 |
AT15#,CT150,ST150..SE,SG,ST INNER,TOYOTA |
1 | ||
| 90301-34003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG INNER,TOYODA KOKI |
1 | ||
| 90562-37001 |
AT15#,CT150,ST150..SE,SG,ST OUTER,TOYOTA |
1 | ||
| 90562-37001 |
AT150,CT150,ST150..SE,SG OUTER,TOYOTA |
1 | ||
| 90562-38002 |
AT150,CT150,ST150..SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90562-38002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90301-34003 |
AT150,CT150,ST150..SE,SG INNER,TOYODA KOKI |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT150,CT150,ST150..SE,SG INNER,TOYOTA |
1 | ||
| 90301-33003 |
AT15#,CT150,ST150..SE,SG,ST INNER,TOYOTA |
1 | ||
| 90301-34003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG INNER,TOYODA KOKI |
1 | ||
| 90562-37001 |
AT15#,CT150,ST150..SE,SG,ST OUTER,TOYOTA |
1 | ||
| 90562-37001 |
AT150,CT150,ST150..SE,SG OUTER,TOYOTA |
1 | ||
| 90562-38002 |
AT150,CT150,ST150..SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90562-38002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90301-34003 |
AT150,CT150,ST150..SE,SG INNER,TOYODA KOKI |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24005 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90310-24005 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90310-24007 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24004 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90310-24008 |
AT15#,CT150,ST150..SE,SG,ST MY LIFE |
1 | ||
| 90310-24004 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-24005 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90560-24005 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-25007 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90560-25007 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12021 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45222-12021 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45222-32010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 45222-32010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12020 |
AT15#..SE,SG |
1 | ||
| 44240-12020 |
AT150..SE,SG |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-12010 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44283-12010 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-05004 |
AT150..SE,SG AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06002 |
AT15#,CT150,ST150..SE,SG,ST PRESSURE FEED TUBE SIDE |
2 | ||
| 90410-05004 |
AT15#..SE,SG,ST AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06002 |
AT150,CT150,ST150..SE,SG PRESSURE FEED TUBE SIDE |
2 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-05004 |
AT150..SE,SG AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06002 |
AT15#,CT150,ST150..SE,SG,ST PRESSURE FEED TUBE SIDE |
2 | ||
| 90410-05004 |
AT15#..SE,SG,ST AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06002 |
AT150,CT150,ST150..SE,SG PRESSURE FEED TUBE SIDE |
2 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90311-19007 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90310-23005 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90369-19005 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90369-19005 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44253J - BEARING, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90363-12008 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90363-12008 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90521-41003 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90389-28001 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44275-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44275-20031 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44275-20031 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
AT15#,CT150,ST150..SE,SG,ST |
1 | ||
| 90521-50002 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44277-20010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44277-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44277-20010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44418-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44418-12030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYOTA |
1 | ||
| 44418-20030 |
AT15#,160,CT150,ST150..GT,SE,SG TOYODA KOKI |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12030 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44419-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44419-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44419-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
AT150,CT150,ST150..SE,SG |
4 | ||
| 90430-04007 |
AT15#,CT150,ST150..SE,SG,ST |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-04007 |
AT150,CT150,ST150..SE,SG |
4 | ||
| 90430-04007 |
AT15#,CT150,ST150..SE,SG,ST |
4 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19055 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 45503-19056 |
AT15#,CT150,ST150..SE,SG,ST |
2 | ||
| 45503-19056 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19055 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 45503-19056 |
AT15#,CT150,ST150..SE,SG,ST |
2 | ||
| 45503-19056 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 90214-14002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 90214-14002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45523-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45523-12010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 45523-12010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 90501-23007 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 90501-23007 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90501-23024 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 45524-12010 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45524-16010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 45524-12010 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-33003 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 90179-36002 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 90179-33003 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 90179-36002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12040 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45535-20040 |
AT150,CT150,ST150..SE,SG TOYOTA KOKI |
1 | ||
| 45535-12040 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45535-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYOTA KOKI |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
2 | ||
| 90949-01081 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
2 | ||
| 90949-01081 |
AT150,CT150,ST150..SE,SG TOYOTA |
2 | ||
| 90460-53002 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
2 | ||
| 90949-01081 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
2 | ||
| 90949-01081 |
AT150,CT150,ST150..SE,SG TOYOTA |
2 | ||
| 90460-53002 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 90467-18003 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 90467-18003 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12040 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45535-20040 |
AT150,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 45535-12040 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||
ILLUST NO. 2 OF 2(8405-8508)AT150,CT150,ST150..SE,SG ; (8508-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44015-20010 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 90301-43002 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90310-25004 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12030 |
AT15#,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44201-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44201-20021 |
AT15#,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44201-20130 |
AT15#,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44201-20021 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AT150,CT150,ST150..SE,SG TOYOTA |
4 | ||
| 90562-32003 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
4 | ||
| 90562-33002 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
4 | ||
| 90562-32003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44204-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44204-20030 |
AT15#,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44204-12030 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT150,CT150,ST150..SE,SG INNER,TOYOTA |
1 | ||
| 90301-33003 |
AT15#,CT150,ST150..SE,SG,ST INNER,TOYOTA |
1 | ||
| 90301-34003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG INNER,TOYODA KOKI |
1 | ||
| 90562-37001 |
AT15#,CT150,ST150..SE,SG,ST OUTER,TOYOTA |
1 | ||
| 90562-37001 |
AT150,CT150,ST150..SE,SG OUTER,TOYOTA |
1 | ||
| 90562-38002 |
AT150,CT150,ST150..SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90562-38002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90301-34003 |
AT150,CT150,ST150..SE,SG INNER,TOYODA KOKI |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-33003 |
AT150,CT150,ST150..SE,SG INNER,TOYOTA |
1 | ||
| 90301-33003 |
AT15#,CT150,ST150..SE,SG,ST INNER,TOYOTA |
1 | ||
| 90301-34003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG INNER,TOYODA KOKI |
1 | ||
| 90562-37001 |
AT15#,CT150,ST150..SE,SG,ST OUTER,TOYOTA |
1 | ||
| 90562-37001 |
AT150,CT150,ST150..SE,SG OUTER,TOYOTA |
1 | ||
| 90562-38002 |
AT150,CT150,ST150..SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90562-38002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG OUTER,TOYODA KOKI |
1 | ||
| 90301-34003 |
AT150,CT150,ST150..SE,SG INNER,TOYODA KOKI |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20050 |
AT150..SE,SG |
1 | ||
| 44210-20050 |
AT15#..SE,SG |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05035 |
AT150..SE,SG AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06005 |
AT150,CT150,ST150..SE,SG PRESSURE FEED TUBE SIDE |
2 | ||
| 90410-05035 |
AT15#,160..GT,SE,SG AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06005 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG PRESSURE FEED TUBE SIDE |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-05035 |
AT150..SE,SG AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06005 |
AT150,CT150,ST150..SE,SG PRESSURE FEED TUBE SIDE |
2 | ||
| 90410-05035 |
AT15#,160..GT,SE,SG AIR CONTROL VALVE SIDE |
1 | ||
| 90410-06005 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG PRESSURE FEED TUBE SIDE |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90301-51001 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90311-19002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 90363-19003 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20050 |
AT150..SE,SG |
1 | ||
| 44211-20050 |
AT15#,160..GT,SE,SG |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12021 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45222-12021 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45222-32010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 45222-32010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-20040 |
AT15#..SE,SG |
1 | ||
| 44203-20040 |
AT150..SE,SG |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99125 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90999-99129 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90999-99129 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 90310-25001 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99125 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90999-99129 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90999-99129 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 90310-25001 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-26007 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-20021 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44267-20021 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44275-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44275-20031 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44275-20031 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-25009 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90310-25010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44277-20010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44277-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44277-20010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44418-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44418-12030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYOTA |
1 | ||
| 44418-20030 |
AT15#,160,CT150,ST150..GT,SE,SG TOYODA KOKI |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG HOUSING SIDE |
2 | ||
| 90410-04002 |
AT150,CT150,ST150..SE,SG HOUSING SIDE |
2 | ||
| 90410-04001 |
AT150,CT150,ST150..SE,SG VALVE SIDE |
2 | ||
| 90410-04001 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG HOUSING SIDE |
2 | ||
| 90410-04002 |
AT150,CT150,ST150..SE,SG HOUSING SIDE |
2 | ||
| 90410-04001 |
AT150,CT150,ST150..SE,SG VALVE SIDE |
2 | ||
| 90410-04001 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12030 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 44419-12030 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44419-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44419-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19055 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 45503-19056 |
AT15#,CT150,ST150..SE,SG,ST |
2 | ||
| 45503-19056 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19055 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 45503-19056 |
AT15#,CT150,ST150..SE,SG,ST |
2 | ||
| 45503-19056 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 90214-14002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 90214-14002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45523-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45523-12010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 45523-12010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 90501-23007 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 90501-23007 |
AT150,CT150,ST150..SE,SG |
1 | ||
| 90501-23024 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 45524-12010 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45524-16010 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 45524-12010 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-33003 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 90179-36002 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 90179-33003 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 90179-36002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-12040 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45535-20040 |
AT150,CT150,ST150..SE,SG TOYOTA KOKI |
1 | ||
| 45535-12040 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 45535-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYOTA KOKI |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
2 | ||
| 90949-01081 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
2 | ||
| 90949-01081 |
AT150,CT150,ST150..SE,SG TOYOTA |
2 | ||
| 90460-53002 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-53002 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
2 | ||
| 90949-01081 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
2 | ||
| 90949-01081 |
AT150,CT150,ST150..SE,SG TOYOTA |
2 | ||
| 90460-53002 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 90467-18003 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
2 | ||
| 90467-18003 |
AT150,CT150,ST150..SE,SG |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-12040 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 45535-20040 |
AT150,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 45535-12040 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 1 OF 2(8405-8508)AT150,CT150,ST150..SE,SG ; (8508-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20030 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 04445-12020 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 04445-12020 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 04445-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12010 |
AT15#,CT150,ST150..SE,SG,ST TOYOTA |
1 | ||
| 04455-20040 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG TOYODA KOKI |
1 | ||
| 04455-20040 |
AT150,CT150,ST150..SE,SG TOYODA KOKI |
1 | ||
| 04455-12010 |
AT150,CT150,ST150..SE,SG TOYOTA |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20040 |
AT150..SE,SG TOYODA KOKI |
1 | ||
| 44250-20041 |
AT150..SE,SG TOYODA KOKI |
1 | ||
| 44250-12031 |
AT150..SE,SG TOYOTA |
1 | ||
| 44250-12031 |
AT15#..SE,SG TOYOTA |
1 | ||
| 44250-12030 |
AT150..SE,SG TOYOTA |
1 | ||
| 44250-20041 |
AT15#..SE,SG TOYODA KOKI |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29135 |
AT15#,CT150,ST150 |
1 | ||
| 45046-19175 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45046-29135 |
AT15#,CT150,ST150 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12060 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45505-12020 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45514-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12010 |
AT15#..DX,SG,ST |
1 | ||
| 45505-12020 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12060 |
AT15#..DX,SG,ST |
1 | ||
| 45515-12070 |
AT15#..SE,SG,ST W/POWER STEERING |
1 | ||
| 45515-12070 |
AT150..SE,SG W/POWER STEERING |
1 | ||
| 45515-12070 |
AT150,CT150,ST150..SE,SG W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12060 |
AT150,CT150,ST150..SE,SG W/POWER STEERING,TOYOTA |
1 | ||
| 45517-12050 |
AT15#..DX,SG,ST |
1 | ||
| 45517-12060 |
AT15#,CT150,ST150..SE,SG,ST W/POWER STEERING,TOYOTA |
1 | ||
| 45517-20020 |
AT150,CT150,ST150..SE,SG W/POWER STEERING,TOYODA KOKI |
1 | ||
| 45517-20020 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG W/POWER STEERING,TOYODA KOKI |
1 | ||
| 45529 - INSULATOR, STEERING RACK BOOT HEAT | ||||
| 45529-12010 |
AT15# |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 91651-60612 | ||||
| 94115-51200 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
