AT150-AEKDS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )AT15#,CT150,ST150

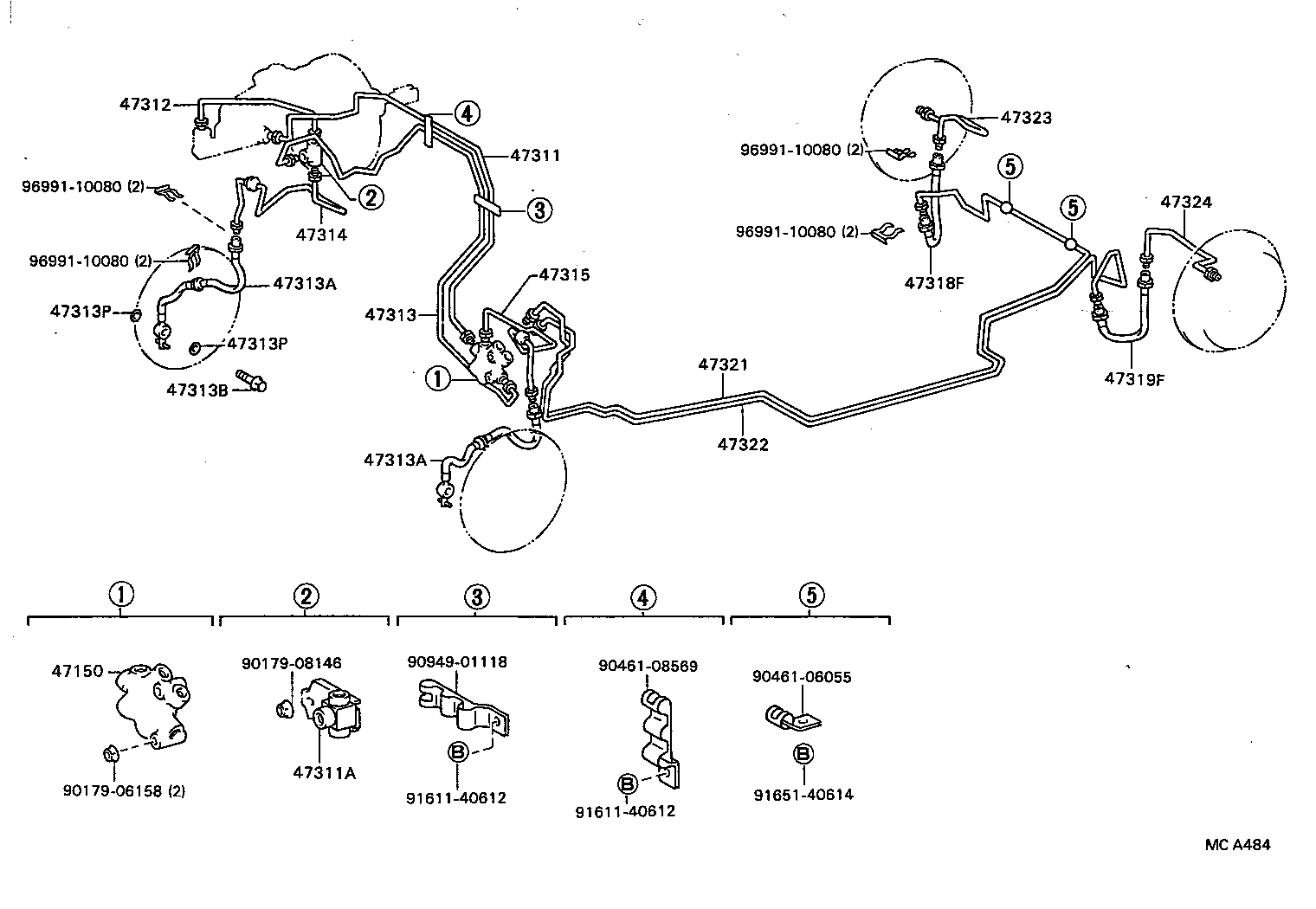

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 9017906158 9017908146 9046106055 9046108569 9094901118 9161140612 9161140612 9165140614 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12060

AT15#,CT150,ST150

 1
47150-16070

AT15#,CT150,ST150

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20400

AT150..DX,SE

 1
47311-20400

AT15#,CT150,ST150

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10158

AT15#,CT150,ST150

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20110

AT150..DX,SE

 1
47312-20110

AT15#,CT150,ST150

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20230

AT15#,CT150,ST150

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AT15#,160,CT150,ST150,162

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AT15#,160,CT150,ST150,162

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT15#,160,CT150,ST150,162

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT15#,160,CT150,ST150,162

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT15#,160,CT150,ST150,162

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20180

AT15#,CT150,ST150

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20310

AT15#,CT150,ST150

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96950-33455

AT15#,CT150,ST150

 1
96950-33456

AT15#,CT150,ST150

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96950-33455

AT15#,CT150,ST150

 1
96950-33456

AT15#,CT150,ST150

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20110

AT15#,CT150,ST150

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20200

AT15#,CT150,ST150

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-20040

AT15#,CT150,ST150

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-20040

AT15#,CT150,ST150

 1
Common parts
90179-06158
90179-08146
90461-06055
90461-08569
90949-01118
91611-40612
91651-40614
96991-10080
