Toyota Carina ff AT150 CLUTCH PEDAL & FLEXIBLE HOSE

AT150-AEKDS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988

Engine 3ALU

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

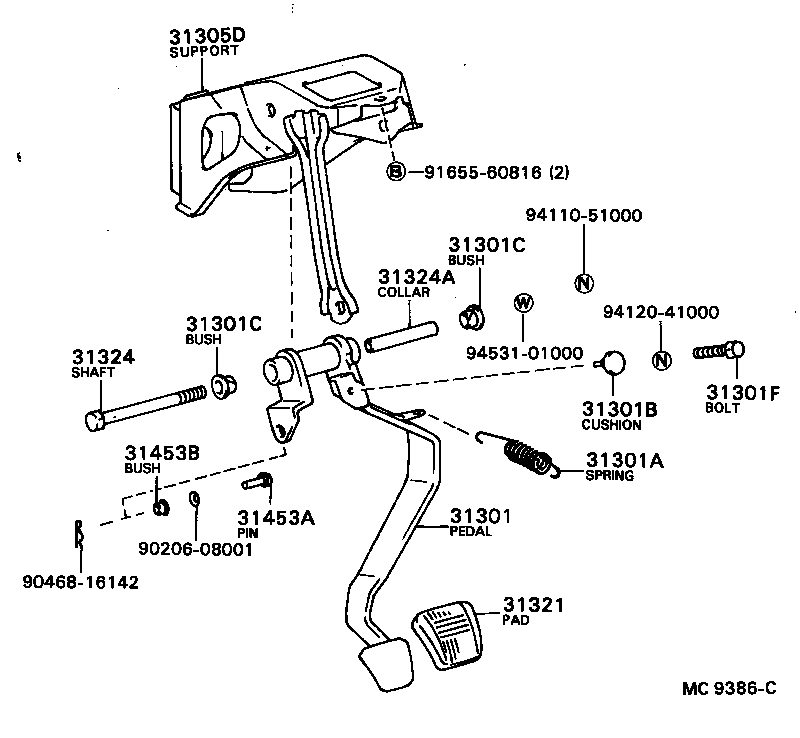

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20170	AT15#,160,CT150,ST150..MTM	05/1984 - 04/1988	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003	AT15#,160,CT150,ST150..MTM	05/1984 - 04/1988	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008	AT15#,160,CT150,ST150..MTM	05/1984 - 04/1988	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192	AT15#,160,CT150,ST150,162..MTM	05/1984 - 03/1986	2
90386-13015	AT15#,160,CT150,ST150,162..MTM	03/1986 - 04/1988	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192	AT15#,160,CT150,ST150,162..MTM	05/1984 - 03/1986	2
90386-13015	AT15#,160,CT150,ST150,162..MTM	03/1986 - 04/1988	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20051	AT15#,160,CT150,ST150..MTM	08/1985 - 04/1988	1
55107-20050	AT15#,CT150,ST150..MTM	05/1984 - 08/1985	1
31321 - PAD, CLUTCH PEDAL
31321-14020	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
31324 - SHAFT, CLUTCH PEDAL
90101-10100	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10002	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	AT15#,160,CT150,ST150,162..MTM 長さ=23.5	05/1984 - 04/1988	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
Common parts
90206-08001
90468-16142
91655-60816
94110-51000
94120-41000
94531-01000

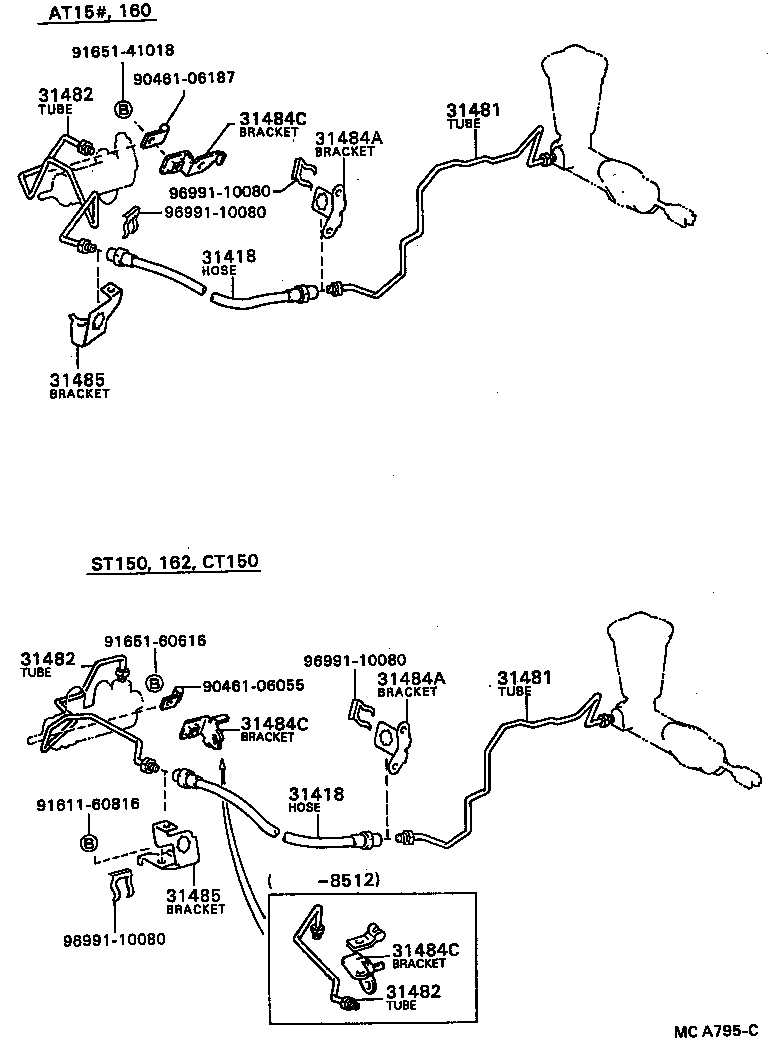

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
96816-50340	AT15#,160..MTM	05/1984 - 04/1988	1
31418 - HOSE, CLUTCH
96816-50340	AT15#,160..MTM	05/1984 - 04/1988	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20210	AT15#,160,ST150,162..MTM	05/1984 - 04/1988	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20210	AT15#,160,ST150,162..MTM	05/1984 - 04/1988	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010	AT15#,160..MTM	05/1984 - 04/1988	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010	AT15#,160..MTM	05/1984 - 04/1988	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010	AT15#,160..MTM	05/1984 - 04/1988	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20240	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20240	AT15#,160,CT150,ST150,162..MTM	05/1984 - 04/1988	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12100	AT15#,160..MTM	09/1984 - 04/1988	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12100	AT15#,160..MTM	09/1984 - 04/1988	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12100	AT15#,160..MTM	09/1984 - 04/1988	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12090	AT15#,160..MTM	08/1985 - 04/1988	1
31484-12060	AT15#..MTM	05/1984 - 08/1985	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12090	AT15#,160..MTM	08/1985 - 04/1988	1
31484-12060	AT15#..MTM	05/1984 - 08/1985	1
Common parts
90461-06055
90461-06187
91611-60816
91651-41018
91651-60616
96991-10080
