AT150-AEKDS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )3ALU

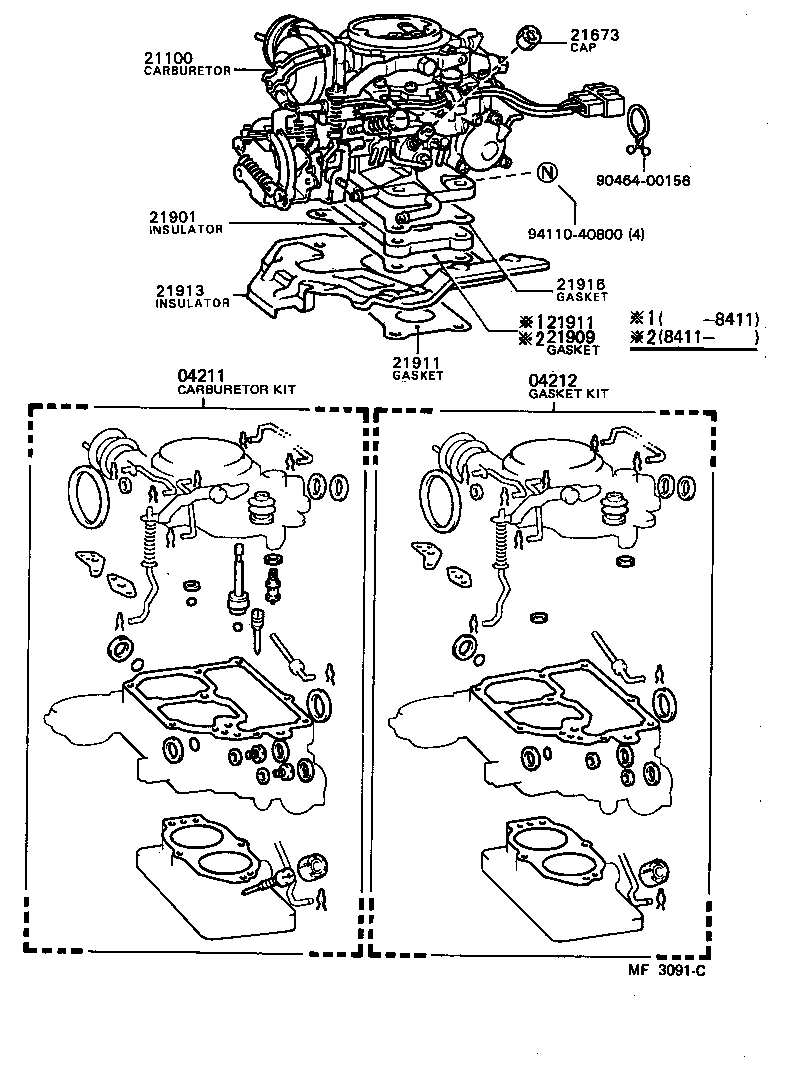

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 21909 21911 21911 21913 21916 9046400156 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-15130

3ALU..AT150

 1
04211-15150

3ALU..AT150

 1
04211-15150

3ALU..AT150..MTM

 1
04212 - GASKET KIT, CARBURETOR
04212-15080

3ALU..AT150

 1
21100 - CARBURETOR ASSY
21100-15321

3ALU..AT150..MTM

 1
21100-15322

3ALU..AT150..MTM

 1
21100-15440

3ALU..AT150..MTM

 1
21673 - CAP, IDLE LIMIT
21673-13280

3ALU..AT150

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15012

3ALU..AT150

 1
21909 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.3
21909-15010

3ALU..AT150

 1
21909-15011

3ALU..AT150

 1
21911 - GASKET, CARBURETOR
21916-15030

3ALU..AT150

 1
21916-15030

3ALU..AT150

 2
21911 - GASKET, CARBURETOR
21916-15030

3ALU..AT150

 1
21916-15030

3ALU..AT150

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15040

3ALU..AT150

 1
21916 - GASKET, CARBURETOR, NO.2
21914-15020

3ALU..AT150

 1
Common parts
90464-00156
94110-40800
