AT150-AEKDS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

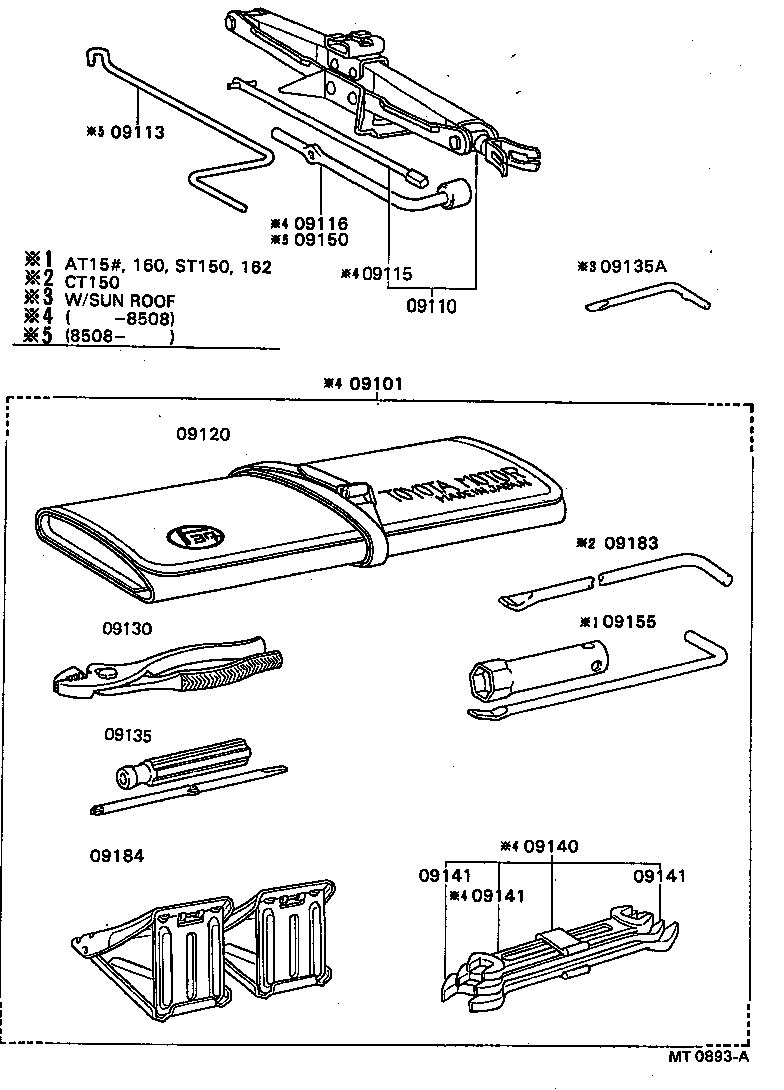

Click highlighted areas on diagram

diagram 09101 09110 09113 09115 09116 09120 09130 09135 09135A 09140 09141 09141 09141 09150 09155 09183 09184
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-12074

AT15#

 1
09110 - JACK ASSY
09111-24030

AT15#,160,CT150,ST150,162

 1
09111-20060

AT15#,160,CT150,ST150,162

 1
09118-14010

AT15#,CT150,ST150

 1
09113 - HANDLE, JACK
09113-24020

AT15#,160,CT150,ST150,162

 1
09113-20030

AT15#,160,CT150,ST150,162

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16020

AT15#,CT150,ST150

 1
09116 - LEVER, JACK HANDLE
09116-16010

AT15#,CT150,ST150

 1
09120 - BAG, TOOL
09120-10030

AT15#,160,CT150,ST150,162

 1
09120-12011

AT15#,CT150,ST150

 1
09130 - PLIERS
99913-11500

AT15#,160,CT150,ST150,162

 1
09135 - DRIVER, SCREW
99915-10700

AT15#,160,CT150,ST150,162

 1
09140 - SPANNER SET
09140-12011

AT15#,CT150,ST150

 1
09141 - SPANNER
99914-11012

AT15#,CT150,ST150

10 X 12,10X12

 1
99914-11417

AT15#,CT150,ST150

14 X 17,14X17

 1
99914-10810

AT15#,160,CT150,ST150,162

8 X 10,8X10

 1
99914-11214

AT15#,160,CT150,ST150,162

12 X 14,12X14

 1
09141 - SPANNER
99914-11012

AT15#,CT150,ST150

10 X 12,10X12

 1
99914-11417

AT15#,CT150,ST150

14 X 17,14X17

 1
99914-10810

AT15#,160,CT150,ST150,162

8 X 10,8X10

 1
99914-11214

AT15#,160,CT150,ST150,162

12 X 14,12X14

 1
09141 - SPANNER
99914-11012

AT15#,CT150,ST150

10 X 12,10X12

 1
99914-11417

AT15#,CT150,ST150

14 X 17,14X17

 1
99914-10810

AT15#,160,CT150,ST150,162

8 X 10,8X10

 1
99914-11214

AT15#,160,CT150,ST150,162

12 X 14,12X14

 1
09150 - WRENCH, HUB NUT BOX
09150-26010

AT15#,160,CT150,ST150,162

 1
09155 - WRENCH, SPARK PLUG
09155-44020

AT15#

 1
09155-41020

AT15#,ST150

 1
09155-44020

AT15#

 1
09184 - STOPPER, WHEEL
09184-00010

AT15#,160,CT150,ST150,162

 2
