Toyota Carina ff AT150 ACCELERATOR LINK

AT150-AEHFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988

Engine 3ALU

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

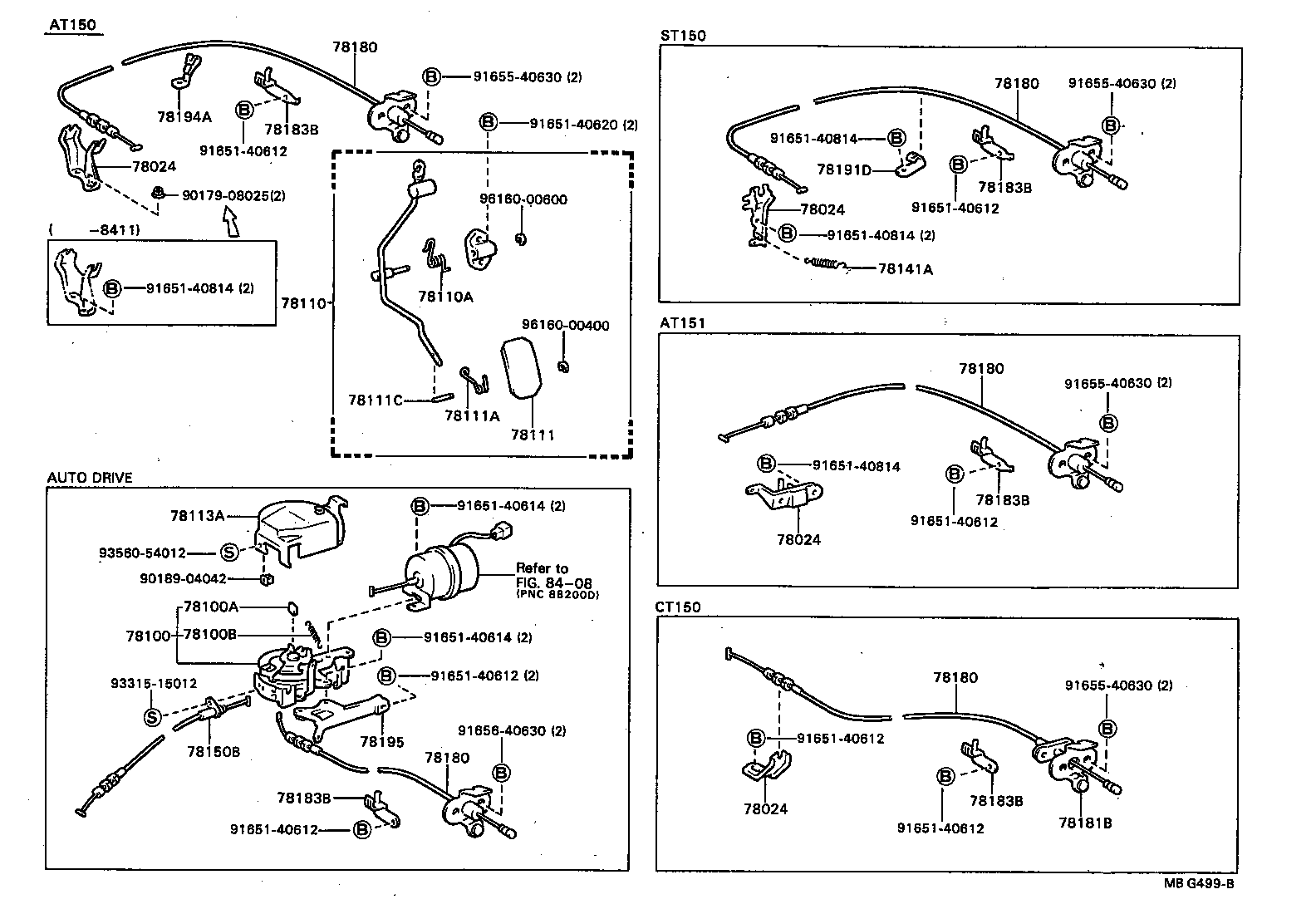

(8405-8508)

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-20190	AT15#,160,CT150..ATM	05/1984 - 04/1988	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048	AT15#,160,CT150,ST162..ATM	05/1984 - 04/1988	1
78111 - PEDAL, ACCELERATOR
78111-32010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-12020	AT150	05/1984 - 04/1988	1
Common parts
90179-08025
90189-04042
91651-40612
91651-40614
91651-40620
91651-40814
91655-40630
91656-40630
93315-15012
93560-54012
96160-00400
96160-00600
Linked diagrams
8408

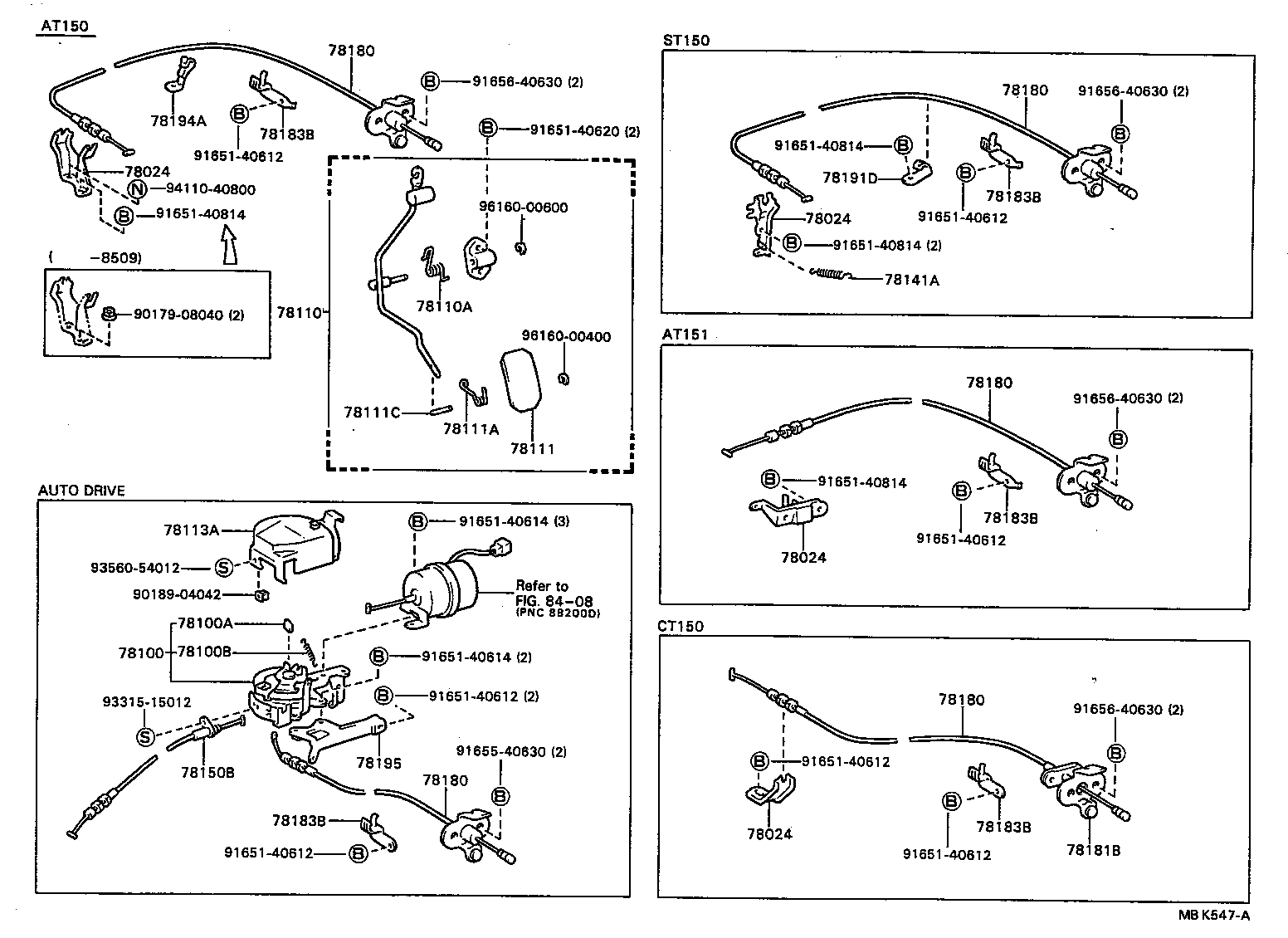

(8508- )AT15#,CT150,ST150

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-12160	AT150	05/1984 - 09/1985	1
78184-12210	AT150	09/1985 - 04/1988	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-20190	AT15#,160,CT150..ATM	05/1984 - 04/1988	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048	AT15#,160,CT150,ST162..ATM	05/1984 - 04/1988	1
78111 - PEDAL, ACCELERATOR
78111-32010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-20240	AT150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12060	AT15#,CT150,ST150	05/1984 - 04/1988	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-12020	AT150	05/1984 - 04/1988	1
Common parts
90179-08040
90189-04042
91651-40612
91651-40614
91651-40620
91651-40814
91655-40630
91656-40630
93315-15012
93560-54012
94110-40800
96160-00400
96160-00600
Linked diagrams
8408

AT150-AEHFS (1984)

(8405-8508)

(8508- )AT15#,CT150,ST150
