AT150-AEHFS (1984)
Toyota Carina Ff
(8405- )AT15#,CT150,ST150

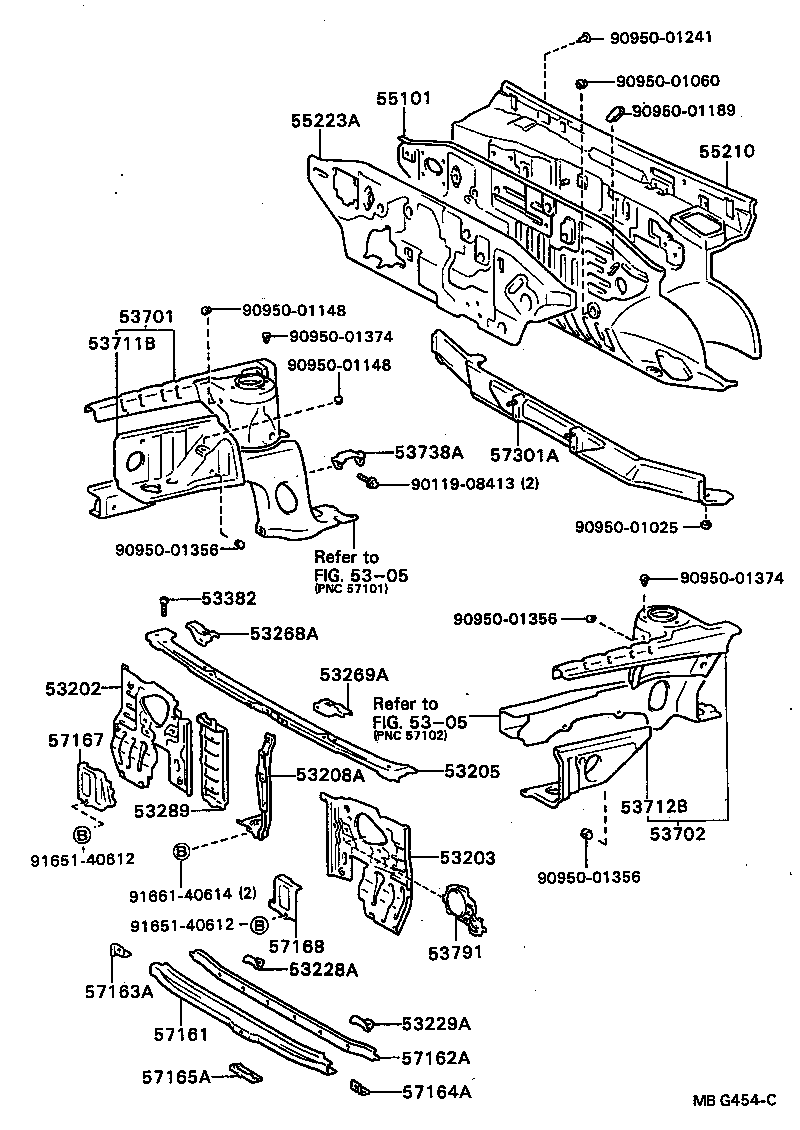

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53211-20121 |
AT15#,CT150,ST150 |
1 | ||
| 53211-20120 |
AT15#,CT150,ST150 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-20160 |
AT15#,CT150,ST150 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-20070 |
AT15#,CT150,ST150 |
1 | ||
| 53216-20040 |
AT15#,CT150,ST150 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-20060 |
AT15#,CT150,ST150 |
1 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-12060 |
AT15#,CT150,ST150 |
1 | ||
| 53229A - BRACKET, RADIATOR GRILLE MOUNTING | ||||
| 53229-12030 |
AT15#,CT150,ST150 |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-20010 |
AT15#..ATM |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20020 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-20450 |
AT15#,ST150 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20530 |
AT150 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-12180 |
AT15#,CT150,ST150 |
1 | ||
| 53711-20130 |
AT15#,CT150,ST150 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-12160 |
AT15#,CT150,ST150 |
1 | ||
| 53712-20200 |
AT15#,CT150,ST150 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-20943 |
AT15#,CT150,ST150..ATM |
1 | ||
| 55101-20934 |
AT15#,CT150,ST150..ATM |
1 | ||
| 55101-20861 |
AT15#,ST150..ATM |
1 | ||
| 55101-20751 |
AT15#,ST150..ATM |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-20100 |
AT15#,CT150,ST150 |
1 | ||
| 55210-20101 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-20070 |
AT15#,CT150,ST150 |
1 | ||
| 57161-12100 |
AT15#,CT150,ST150 |
1 | ||
| 57162A - MEMBER, FRONT CROSS, REAR | ||||
| 57162-20060 |
AT15#,CT150,ST150 |
1 | ||
| 57162-12100 |
AT15#,CT150,ST150 |
1 | ||
| 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 57163-20040 |
AT15#,CT150,ST150 |
1 | ||
| 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 57164-20040 |
AT15#,CT150,ST150 |
1 | ||
| 57165A - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 | ||||
| 57165-20040 |
AT15#,CT150,ST150 |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-12060 |
AT15#,CT150,ST150 |
1 | ||
| 57167-20060 |
AT15#,CT150,ST150 |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-20050 |
AT15#,CT150,ST150 |
1 | ||
| 57168-12060 |
AT15#,CT150,ST150 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-20021 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 57301-20020 |
AT15#,CT150,ST150 |
1 | ||
| Common parts | ||||
| 90119-08413 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01148 | ||||
| 90950-01189 | ||||
| 90950-01241 | ||||
| 90950-01356 | ||||
| 90950-01374 | ||||
| 91651-40612 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 5305 | ||||
