AT150-AEHFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )3ALU,4A#..ATM

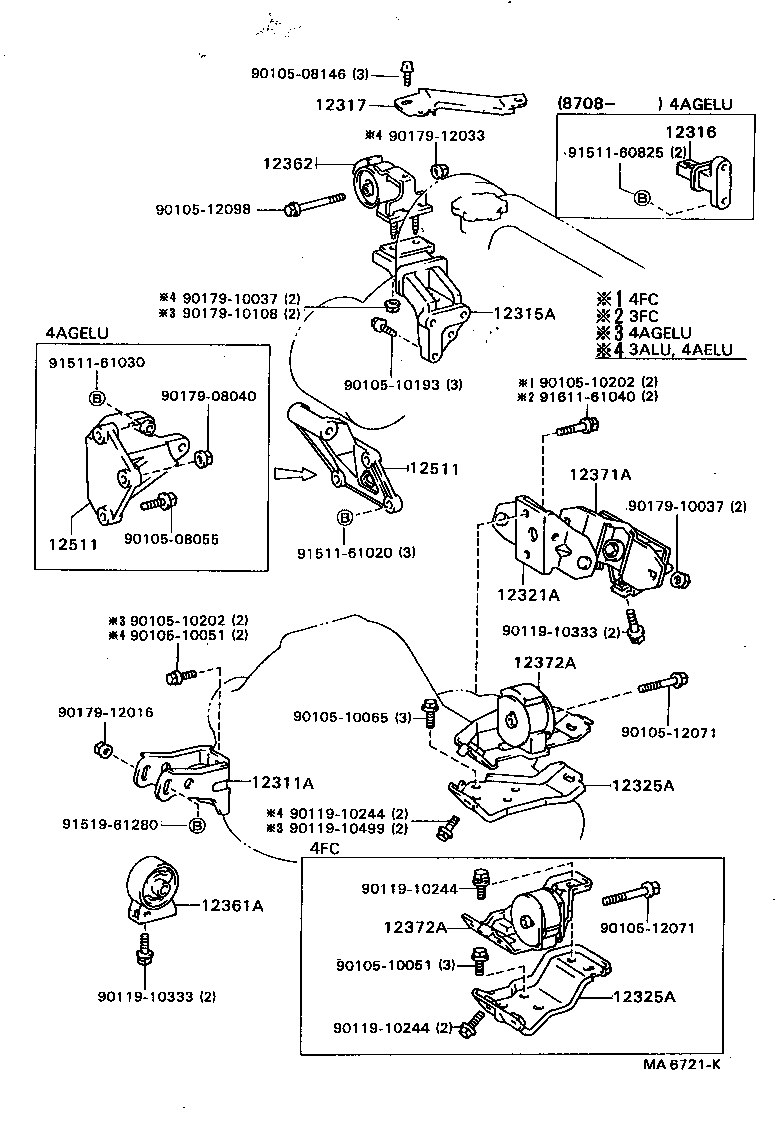

Click highlighted areas on diagram

diagram 12311A 12315A 12316 12317 12321A 12325A 12325A 12361A 12362 12371A 12372A 12372A 12511 12511 9010508055 9010508146 9010510051 9010510051 9010510065 9010510193 9010510202 9010510202 9010512071 9010512071 9010512098 9011910244 9011910244 9011910244 9011910333 9011910333 9011910499 9017908040 9017910037 9017910037 9017910108 9017912016 9017912033 9151160825 9151161020 9151161030 9151961280 9161161040
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15080

3ALU,4AELU..AT15#

 1
12311-15080

3ALU,4AELU..AT15#..ATM

 1
12311-15110

3ALU,4AELU..AT15#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15050

3ALU,4AELU..AT15#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15020

3ALU,4A#..AT15#,160..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15020

3ALU..AT150..3FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15020

3ALU..AT150..3FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15091

3ALU,4A#..AT15#,160..ATM

 1
12361-15090

3ALU,4AELU..AT15#..ATM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15111

3ALU,4AELU..AT15#

 1
12362-15030

3ALU,4AELU..AT15#

 1
12362-15112

3ALU,4AELU..AT15#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15120

3ALU,4AELU..AT15#..ATM

 1
12371-15131

3ALU,4AELU..AT15#..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15051

3ALU..AT150..3FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15051

3ALU..AT150..3FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15021

3ALU..AT150

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15021

3ALU..AT150

 1
Common parts
90105-08055
90105-08146
90105-10051
90105-10065
90105-10193
90105-10202
90105-12071
90105-12098
90119-10244
90119-10333
90119-10499
90179-08040
90179-10037
90179-10108
90179-12016
90179-12033
91511-60825
91511-61020
91511-61030
91519-61280
91611-61040
