AT150-AEHDS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

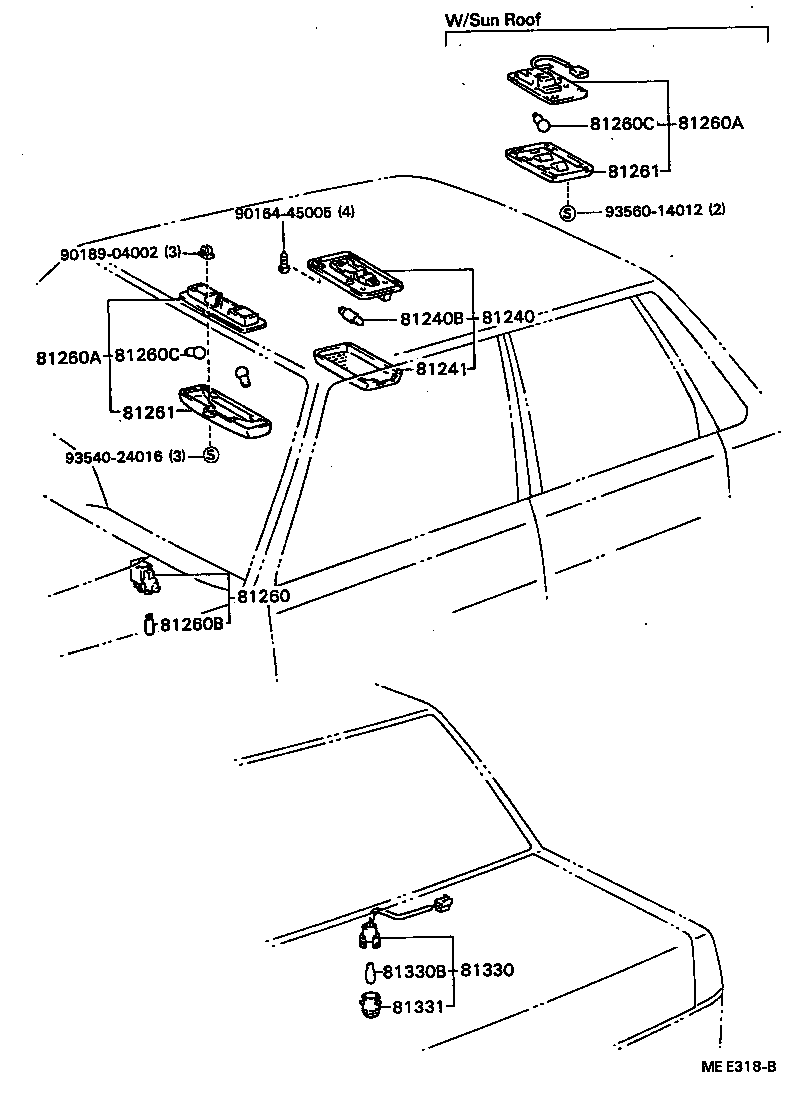

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260 81260A 81260A 81260B 81260C 81260C 81261 81261 81330 81330B 81331 9016445005 9018904002 9354024016 9356014012
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2006013

AT15#,160,CT150,ST150,162

GRAY,GRAY,TRIM1#,8#

 1
81240-2207023

AT15#,160,CT150,ST150,162

GRAY,GRAY,TRIM1#,8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AT15#,160,CT150,ST150,162

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

AT15#,160,CT150,ST150,162

 1
Common parts
90164-45005
90189-04002
93540-24016
93560-14012
