AT150-AEHDS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 3ALU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )AT15#,CT150,ST150

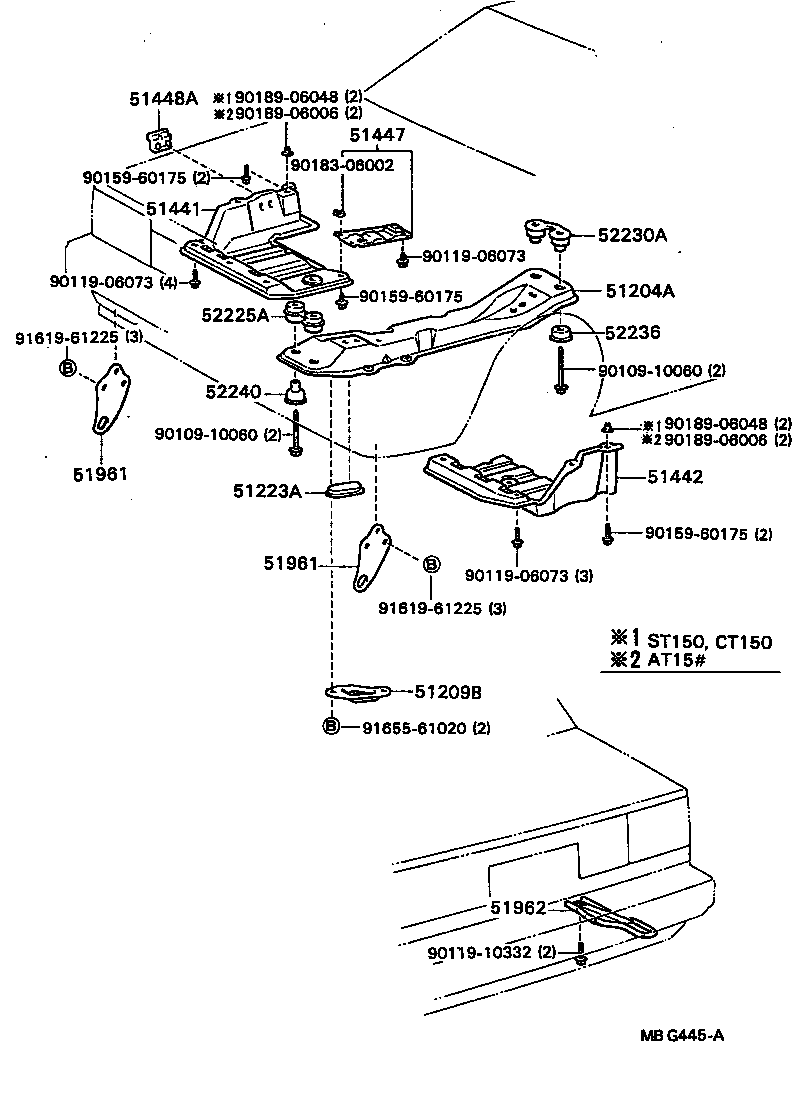

Click highlighted areas on diagram

diagram 51204A 51209B 51223A 51441 51442 51447 51448A 51961 51961 51962 52225A 52230A 52236 52240 9010910060 9010910060 9011906073 9011906073 9011906073 9011910332 9015960175 9015960175 9015960175 9018306002 9018906006 9018906006 9018906048 9018906048 9161961225 9161961225 9165561020
Part # Description Qty Price
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20011

AT15#,CT150,ST150

 1
51204-20010

AT15#,CT150,ST150

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-20010

AT15#,CT150,ST150..ATM

 1
51209-20010

AT15#,160,CT150,ST150,162

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AT15#,160,CT150,ST150,162

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20080

AT15#,CT150,ST150

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20020

AT15#,CT150,ST150..ATM

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-12070

AT15#

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

AT15#,CT150,ST150

 1
51448-20030

AT15#,160,CT150,ST150,162

 1
51961 - HOOK, NO.1
51963-20060

AT15#,CT150,ST150

 2
51961 - HOOK, NO.1
51963-20060

AT15#,CT150,ST150

 2
51962 - HOOK, NO.2
51095-20040

AT15#,CT150,ST150

 2
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20030

AT15#,160,CT150,ST150,162

 1
52225-20010

AT15#,CT150,ST150

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20030

AT15#,160,CT150,ST150,162

 1
52230-20010

AT15#,CT150,ST150

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20030

AT15#,160,CT150,ST150,162

 2
52236-20010

AT15#,CT150,ST150

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20010

AT15#,CT150,ST150

 2
52240-20030

AT15#,160,CT150,ST150,162

 2
Common parts
90109-10060
90119-06073
90119-10332
90159-60175
90183-06002
90189-06006
90189-06048
91619-61225
91655-61020
