ST203-CTPGK (1993)
Toyota Carina Ed

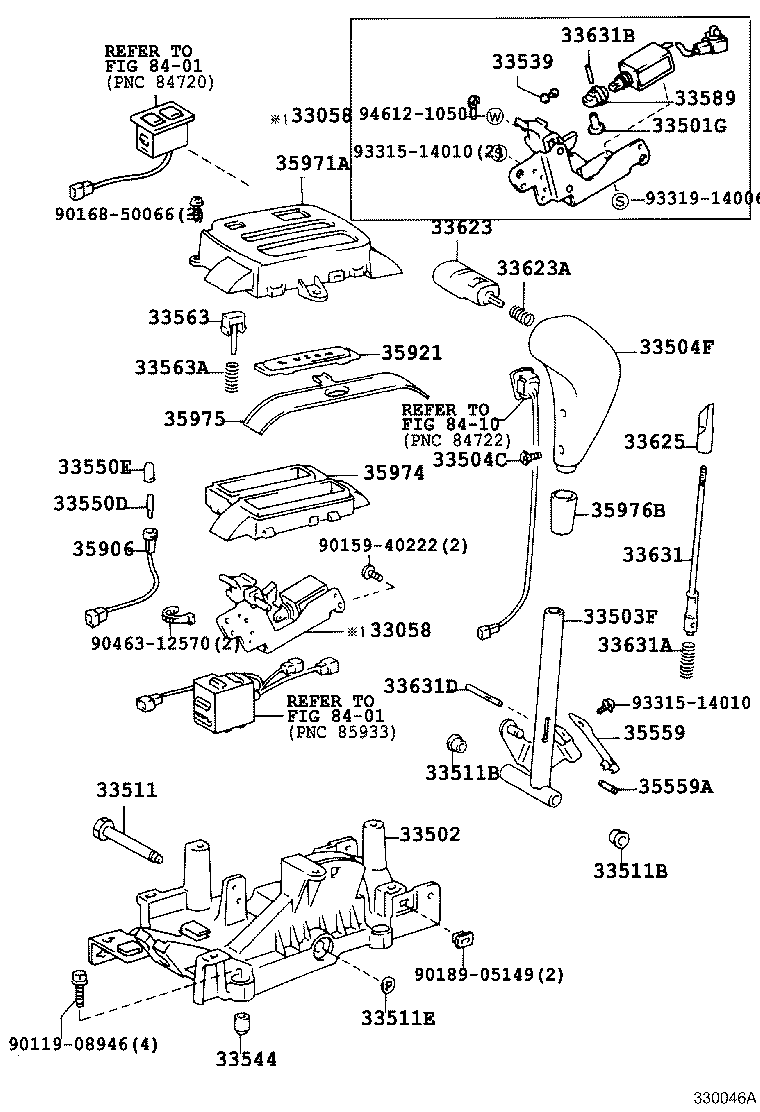

ILLUST NO. 1 OF 2(9309- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-20060 |
ST20#..ATM |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-20060 |
ST20#..ATM |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-03001 |
ST20#..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-20260 |
ST20#..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-20540 |
ST20#..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40244 |
ST20#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12180C0 |
ST200,201,202,203..ATM..X BLACK,TRIM1#,9# |
1 | ||
| 33542-12180C0 |
ST200,202,203,205..ATM..(F,GLIM,LIM4,SLIM) BLACK,TRIM1# |
1 | ||
| 33542-12181C0 |
ST200,202,203..ATM..X BLACK,TRIM1#,9# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12100 |
ST20#..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-09024 |
ST20#..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-09024 |
ST20#..ATM |
2 | ||
| 33511E - RING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90520-08001 |
ST20#..ATM |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-14010 |
ST20#..ATM |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
ST20#..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ST20#..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
ST20#..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-20090 |
ST20#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06076 |
ST20#..ATM |
1 | ||
| 33589 - LINK, SHIFT LOCK SOLENOID | ||||
| 33589-20030 |
ST20#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12100C0 |
ST200,201,202,203..ATM..X BLACK,TRIM1#,9# |
1 | ||
| 33623-12100C0 |
ST202,203..ATM..E;ST200,202,203,205..ATM..(F,GLIM,GT,GT4WD,LIM4,SLIM,V) BLACK,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07037 |
ST20#..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-12020 |
ST20#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20150 |
ST20#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
ST20#..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-02004 |
ST20#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04008 |
ST20#..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33010 |
ST20#..ATM |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90249-02005 |
ST20#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20070 |
ST20#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20330 |
ST20#..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20260 |
ST20#..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-20180 |
ST20#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20140 |
ST20#..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-20070C0 |
ST202,203..ATM..E;ST200,202,203,205..ATM..(F,GLIM,GT,GT4WD,LIM4,SLIM,V) BLACK,TRIM1# |
1 | ||
| 35976-20070C0 |
ST200,201,202,203..ATM..X BLACK,TRIM1#,9# |
1 | ||
| Common parts | ||||
| 90119-08946 | ||||
| 90159-40222 | ||||
| 90168-50066 | ||||
| 90189-05149 | ||||
| 90463-12570 | ||||
| 93315-14010 | ||||
| 93319-14006 | ||||
| 94612-10500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
ILLUST NO. 2 OF 2(9309- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B260 |
ST200,201,202,203..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90929-01335 |
ST200,201,202,203..ATM |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90929-01336 |
ST20#..ATM |
1 | ||
| 33821K - CLAMP, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90929-01337 |
ST200,201,202,203..ATM |
1 | ||
| 33821L - CLAMP | ||||
| 90929-01338 |
ST20#..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-32031 |
ST20#..ATM |
1 | ||
| Common parts | ||||
| 90119-06231 | ||||
| 90179-06200 | ||||
| 90179-08054 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60620 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 3513 | ||||
