ST203-CTMSK (1993)

Toyota Carina Ed

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

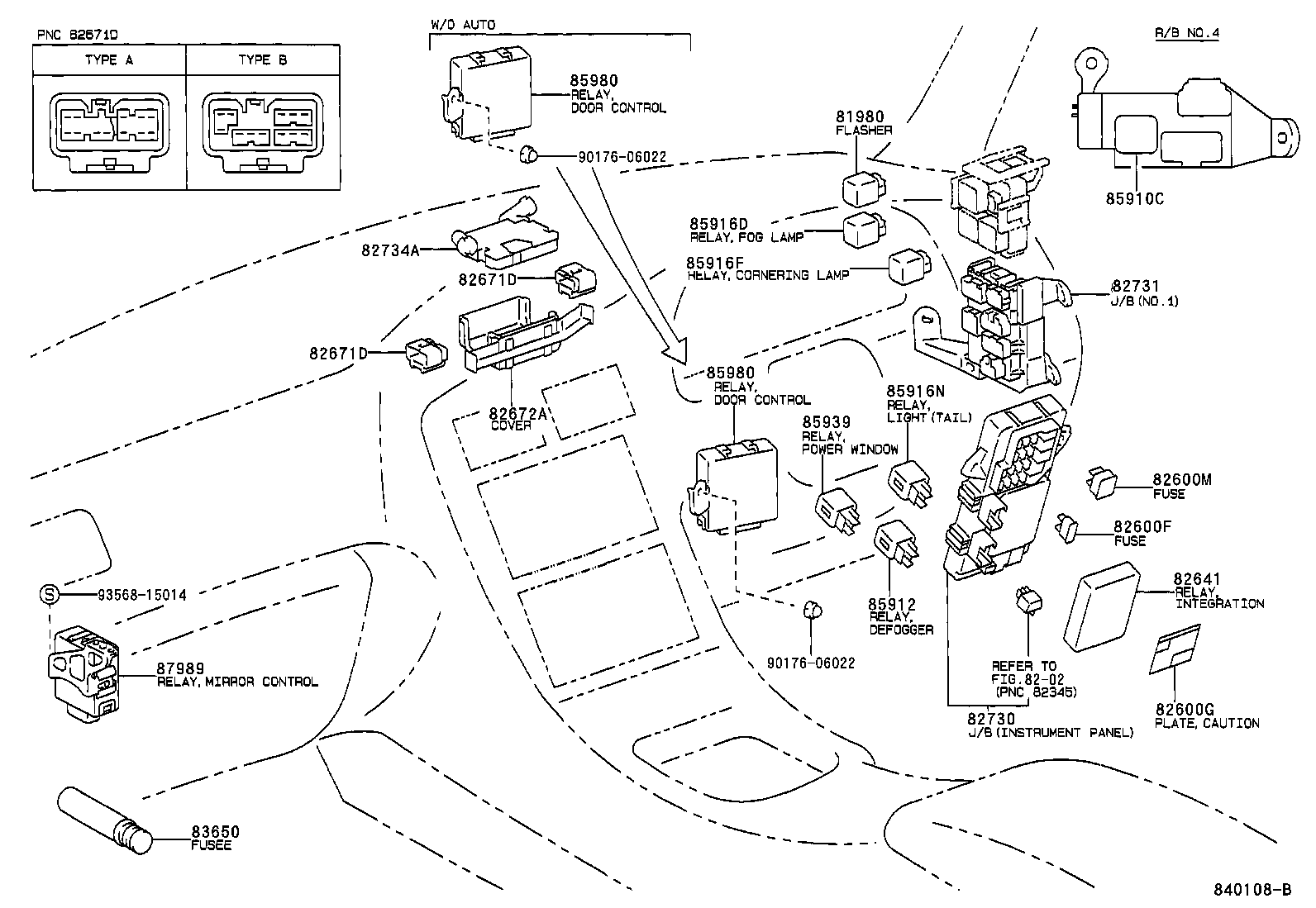

ILLUST NO. 4 OF 6(9309- )

Click highlighted areas on diagram

COWL

diagram 81980 8202 82600F 82600G 82600M 82641 82671D 82671D 82672A 82730 82731 82734A 83650 85910C 85912 85916D 85916F 85916N 85939 85980 85980 87989 9017606022 9017606022 9356815014
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070

ST20#

 1
82600F - FUSE, FUSE BLOCK
90982-09009

ST20#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09010

ST20#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09008

ST20#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09011

ST20#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09013

ST20#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-20120

ST20#

 1
82600M - FUSE, MEDIUM CURRENT
90982-10001

ST20#

30A,ﾋﾟﾝｸ

 1
90982-10002

ST20#

40A,緑

 1
82641 - RELAY, INTEGRATION NO.1
82641-20190

ST20#

 1
82671D - BLOCK, JUNCTION
82671-30350

ST20#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
82671D - BLOCK, JUNCTION
82671-30350

ST20#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
82672A - COVER, JUNCTION BLOCK
82672-2B120

ST20#

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-20010

ST20#

 1
82731 - BLOCK, DRIVER SIDE JUNCTION
82731-20010

ST20#

 1
83650 - FUSEE
90986-01005

ST20#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

ST20#

 1
85912 - RELAY, DEFOGGER
90987-02009

ST20#

 1
85916D - RELAY, FOG LAMP
90987-02009

ST20#

 1
85916F - RELAY, CORNERING LAMP
90987-02009

ST20#

 1
85916N - RELAY, TAIL LAMP
90987-02009

ST20#

 1
85939 - RELAY, POWER WINDOW
90987-02009

ST20#

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-20390

ST200,202,203..F,SLIM

 1
85980-20390

ST202,203..E;ST200,202,205..F,GT,GT4WD,V

 1
85980-20380

ST20#..GLIM,LIM4,SLIM,X

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-20390

ST200,202,203..F,SLIM

 1
85980-20390

ST202,203..E;ST200,202,205..F,GT,GT4WD,V

 1
85980-20380

ST20#..GLIM,LIM4,SLIM,X

 1
87989 - RELAY, MIRROR CONTROL
87989-20060

ST20#..GLIM,LIM4,SLIM,X

 1
Common parts
90176-06022
93568-15014
Linked diagrams
8202

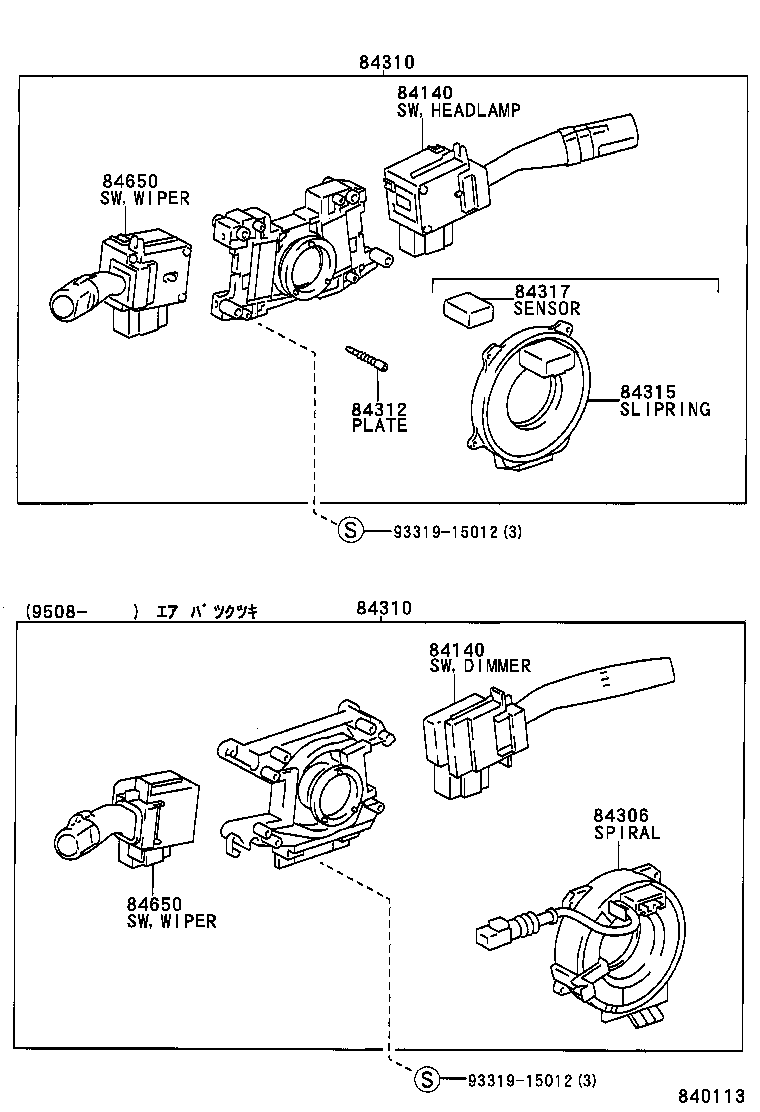

ILLUST NO. 5 OF 6(9309- )

Click highlighted areas on diagram

COMBINATION SWITCH

diagram 84140 84140 84306 84310 84310 84312 84315 84317 84650 84650 9331915012 9331915012
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-20510

ST20#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-20510

ST20#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-2L130

ST201,203..MTM

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84310-2L120

ST201,203..MTM

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-2L130

ST201,203..MTM

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
84310-2L120

ST201,203..MTM

 1
84312 - PLATE, HORN CONTACT
84312-12050

ST203..E;ST201..MTM;ST200,202,205;ST203..MTM..G;ST203..MTM..SLIM

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G270

ST20#

 1
84652-2G280

ST20#

ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G270

ST20#

 1
84652-2G280

ST20#

ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
Common parts
93319-15012

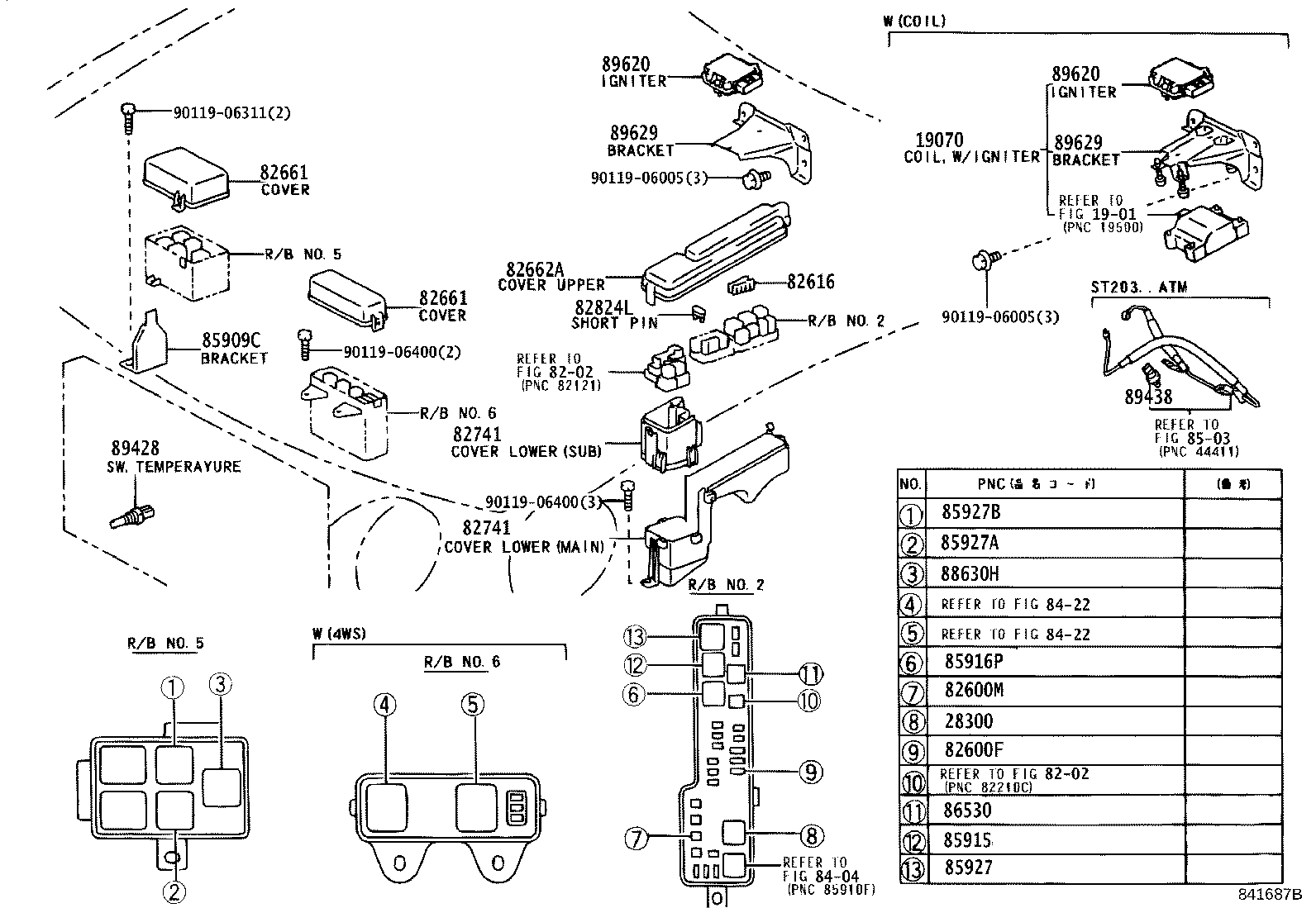

ILLUST NO. 2 OF 6(9309- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 1901 19070 28300 8202 8202 82600F 82600M 82616 82661 82661 82662A 82741 82741 82824L 8404 8422 8422 8503 85909C 85915 85916P 85927 85927A 85927B 86530 88630H 89428 89438 89620 89620 89629 89629 9011906005 9011906005 9011906311 9011906400 9011906400
Part # Description Qty Price
19070 - COIL ASSY, W/IGNITER
19070-74170

3S#,4SFE..ST20#

 1
28300 - RELAY ASSY, STARTER
28341-11010

3S#,4SFE..ST20#..MTM

 1
28300-10020

3S#,4SFE..ST20#

 1
82600F - FUSE, FUSE BLOCK
90982-09009

ST20#

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09010

ST20#

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09008

ST20#

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09011

ST20#

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
90982-09013

ST20#

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
82600M - FUSE, MEDIUM CURRENT
90982-10001

ST20#

30A,ﾋﾟﾝｸ

 1
90982-10002

ST20#

40A,緑

 1
82661 - COVER, RELAY BLOCK, NO.1
82662-20120

ST20#

ﾘﾚ-ﾌﾞﾛﾂｸ NO.5

 1
82662-20130

ST201,203

ﾘﾚ-ﾌﾞﾛﾂｸ NO.6

 1
82661 - COVER, RELAY BLOCK, NO.1
82662-20120

ST20#

ﾘﾚ-ﾌﾞﾛﾂｸ NO.5

 1
82662-20130

ST201,203

ﾘﾚ-ﾌﾞﾛﾂｸ NO.6

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-20110

ST20#

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-20010

ST20#

ﾒｲﾝ

 1
82741-20020

ST20#

ｻﾌﾞ

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-20010

ST20#

ﾒｲﾝ

 1
82741-20020

ST20#

ｻﾌﾞ

 1
82824L - PIN, SHORT
82824-20140

ST20#

 1
85909C - BRACKET SUB-ASSY, RELAY, NO.1
85909-20020

ST20#

 1
85915 - RELAY, MAIN
90987-04002

ST20#

 1
85916P - RELAY, HEADLAMP
90987-02006

ST20#

 1
85927 - RELAY, COOLING FAN
90987-03003

ST20#

 1
85927A - RELAY, COOLING FAN, NO.2
90987-02009

ST20#

 1
85927B - RELAY, COOLING FAN, NO.3
90987-04003

ST20#

 1
86530 - RELAY ASSY, HORN
86530-20070

ST20#

 1
88630H - RELAY ASSY, COOLER
90987-02009

ST20#

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-33010

ST20#

 1
89620 - IGNITER ASSY
89621-26010

ST20#

 1
89620 - IGNITER ASSY
89621-26010

ST20#

 1
89629 - BRACKET, IGNITER ASSY
89629-20160

ST20#

 1
89629 - BRACKET, IGNITER ASSY
89629-20160

ST20#

 1
Common parts
90119-06005
90119-06311
90119-06400
Linked diagrams
1901
8202
8404
8422
8503

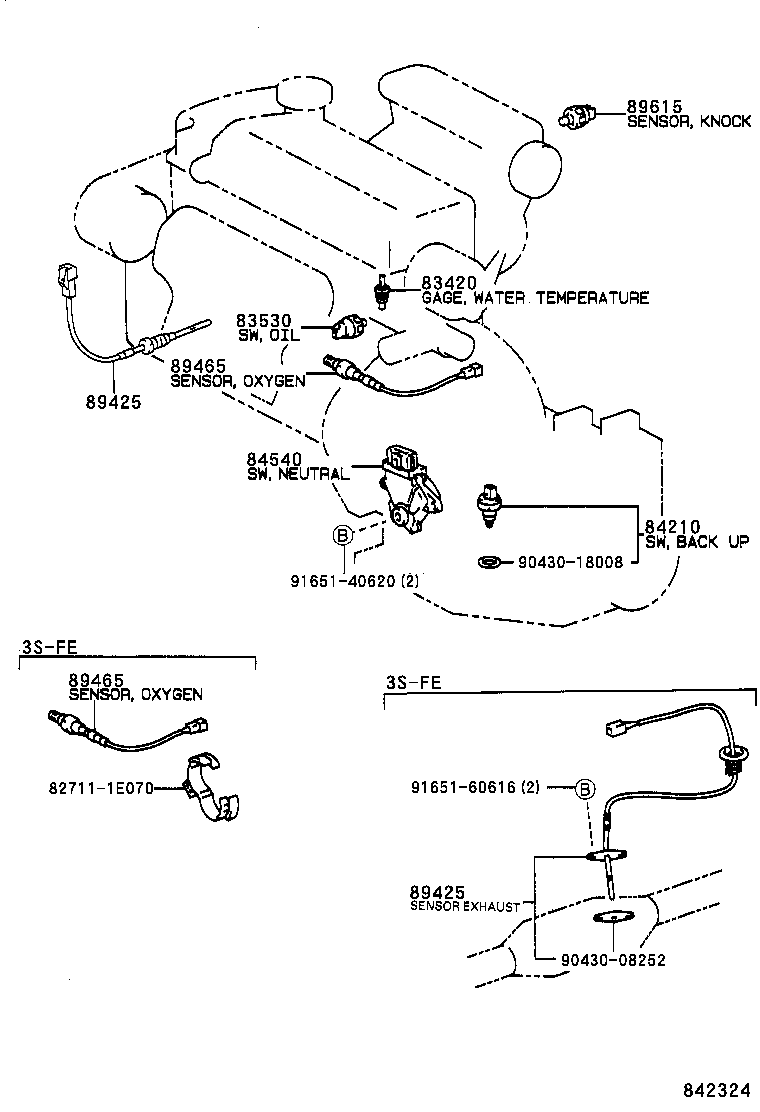

ILLUST NO. 1 OF 6(9309- )F,SLIM,V,X

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 827111E070 83420 83530 84210 84540 89425 89425 89465 89465 89615 9043008252 9043018008 9165140620 9165160616
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

ST202,203..G;ST202,203..GLIM,GT,SLIM;ST200,201,205..F,GT4WD,LIM4,X

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30090

ST20#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

ST20#..MTM

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-29805

ST202,203..SLIM,X

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-29805

ST202,203..SLIM,X

 1
89465 - SENSOR, OXYGEN
89465-20450

ST202,203..SLIM,X

 1
89465 - SENSOR, OXYGEN
89465-20450

ST202,203..SLIM,X

 1
89615 - SENSOR, KNOCK CONTROL
89615-33020

ST200,201,202,203..F,SLIM,V,X

NIPPON DENSO

 1
89615-20030

ST200,201,202,203..F,SLIM,V,X

TOYOTA

 1
Common parts
82711-1E070
90430-08252
90430-18008
91651-40620
91651-60616

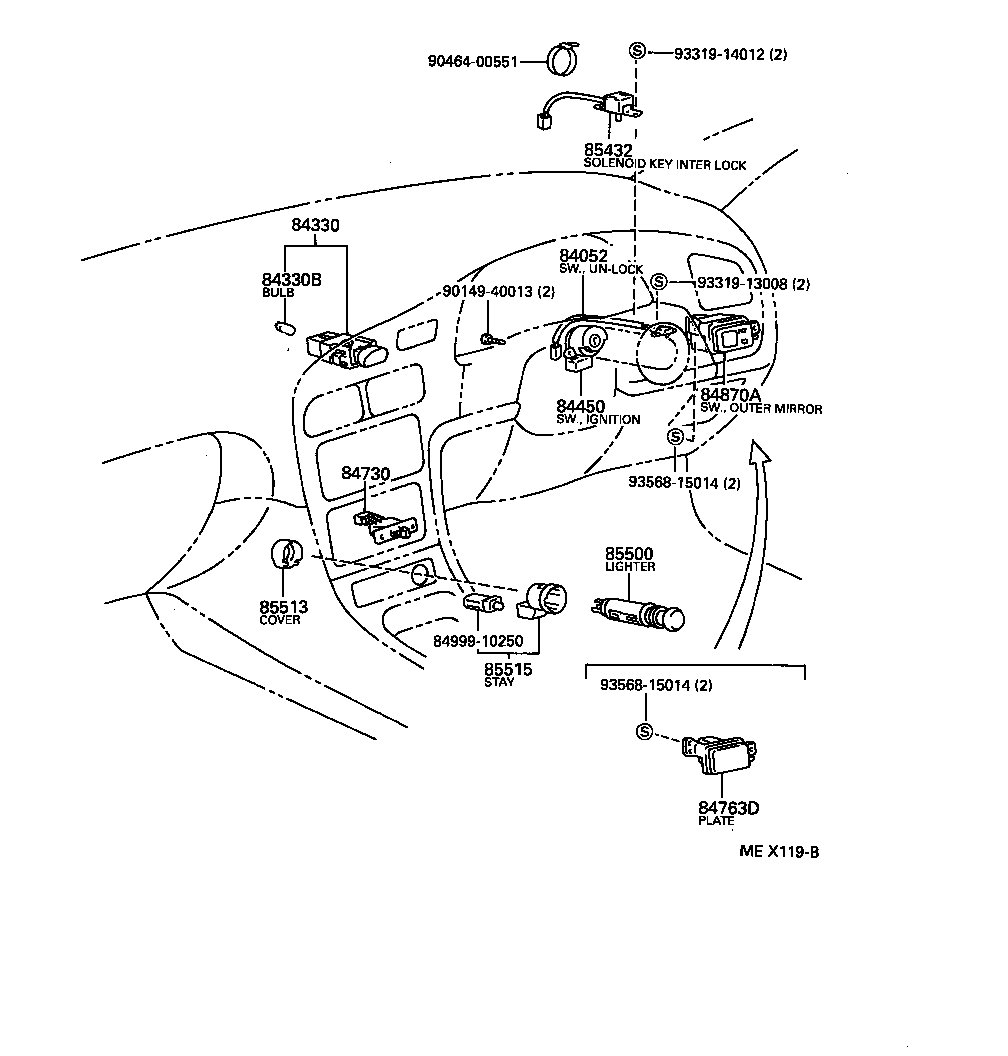

ILLUST NO. 3 OF 6(9309- )

Click highlighted areas on diagram

INSTRUMENT PANEL & DOOR SW

diagram 84052 84330 84330B 84450 84730 84763D 84870A 8499910250 85432 85500 85513 85515 9014940013 9046400551 9331913008 9331914012 9356815014 9356815014
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-20050

ST20#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20330

ST20#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320

ST20#

14V 0.84W

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-20260

ST20#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-20350

ST200,202,203,205..F,GT,GT4WD,SLIM,V

 1
84763D - PLATE, SWITCH
84763-20050

ST20#

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-20180

ST20#..GLIM,LIM4,SLIM,X

 1
84870-20170

ST200,202,203..F,SLIM

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-28050

ST20#

 1
85513 - COVER, CIGARETTE LIGHTER
85513-12020

ST20#

 1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-14010

ST20#

 1
Common parts
84999-10250
90149-40013
90464-00551
93319-13008
93319-14012
93568-15014

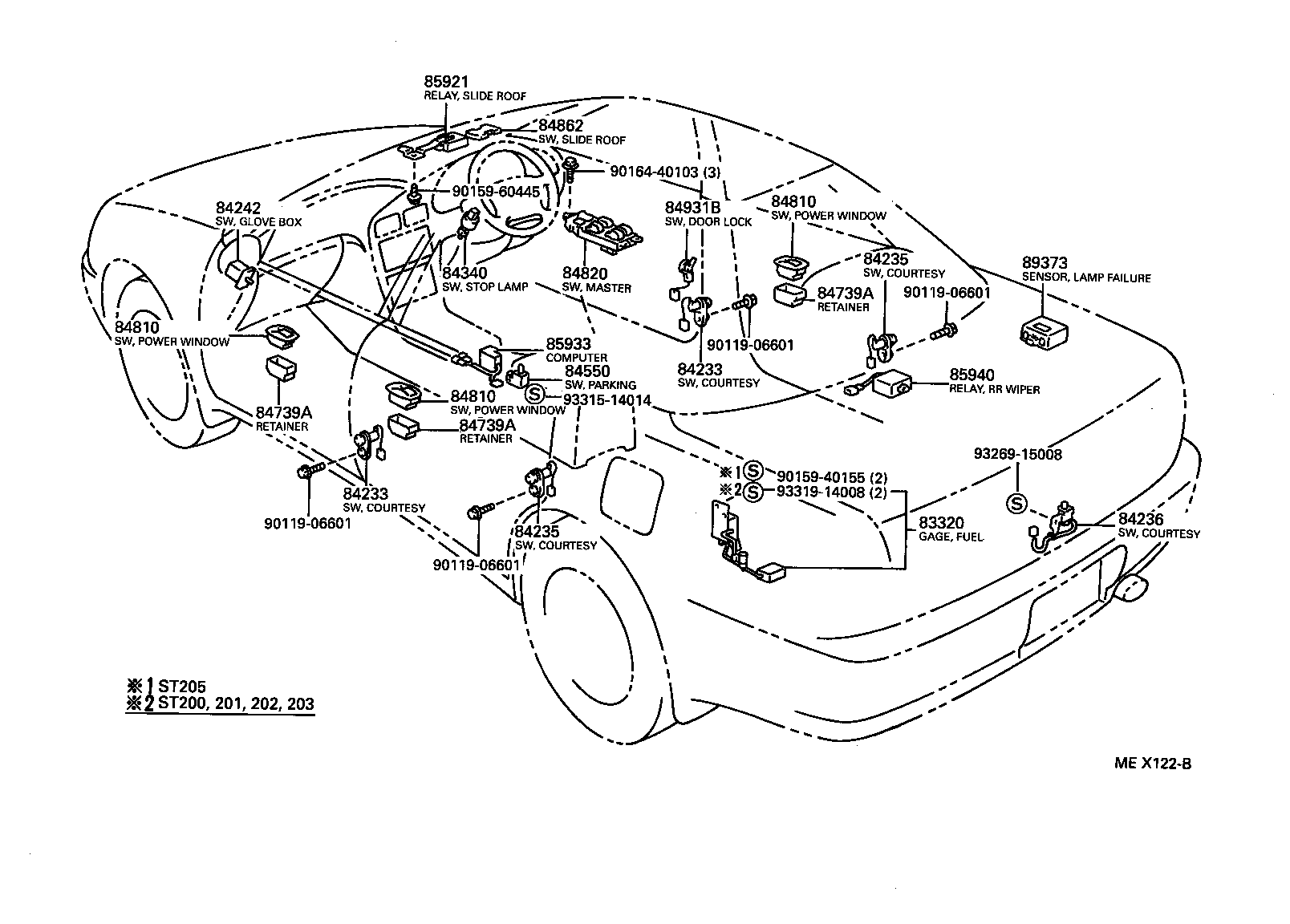

ILLUST NO. 6 OF 6(9309- )

Click highlighted areas on diagram

ROOF,DOOR SEAT,FLOOR & LUG

diagram 83320 84233 84233 84235 84235 84236 84242 84340 84550 84739A 84739A 84739A 84810 84810 84810 84820 84862 84931B 85921 85933 85940 89373 9011906601 9011906601 9011906601 9011906601 9015940155 9015960445 9016440103 9326915008 9331514014 9331914008
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80285

ST200,201,202,203

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-12080

ST20#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-12080

ST20#

 2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-32050

ST20#

 2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-32050

ST20#

 2
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-32060

ST20#

 1
84242 - SWITCH, GLOVE BOX LAMP
84242-20030

ST20#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-32090

ST20#

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010

ST20#

 1
84739A - RETAINER, SWITCH
84739-20020

ST20#

 3
84739A - RETAINER, SWITCH
84739-20020

ST20#

 3
84739A - RETAINER, SWITCH
84739-20020

ST20#

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-20210B0

ST20#

SHADOW GRAY,TRIM1#

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-20210B0

ST20#

SHADOW GRAY,TRIM1#

 3
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-20210B0

ST20#

SHADOW GRAY,TRIM1#

 3
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-20450

ST20#

 1
84862 - SWITCH, SLIDE ROOF MOTOR
84862-20060B0

ST20#..GLIM,LIM4,SLIM,X

LI.GRAY,TRIM1#

 1
84931B - SWITCH, DOOR CONTROL
84931-20130

ST20#

 1
85921 - RELAY, SLIDING ROOF CONTROL
85921-20110

ST20#..GLIM,GT,GT4WD,LIM4,SLIM,V,X

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-20200

ST20#

 1
89373 - SENSOR, LAMP FAILURE INDICATOR
89373-20230

ST20#..GLIM,GT,GT4WD,LIM4,SLIM,V,X

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
89373-20240

ST20#..GLIM,GT,GT4WD,LIM4,SLIM,V,X

 1
Common parts
90119-06601
90159-40155
90159-60445
90164-40103
93269-15008
93315-14014
93319-14008
