Toyota Carina ed ST203 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CARINA ED
ST203-CTMGK (1993)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ST203-CTMGK (1993)

Toyota Carina Ed

Production Sep 1993 - Aug 1995

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

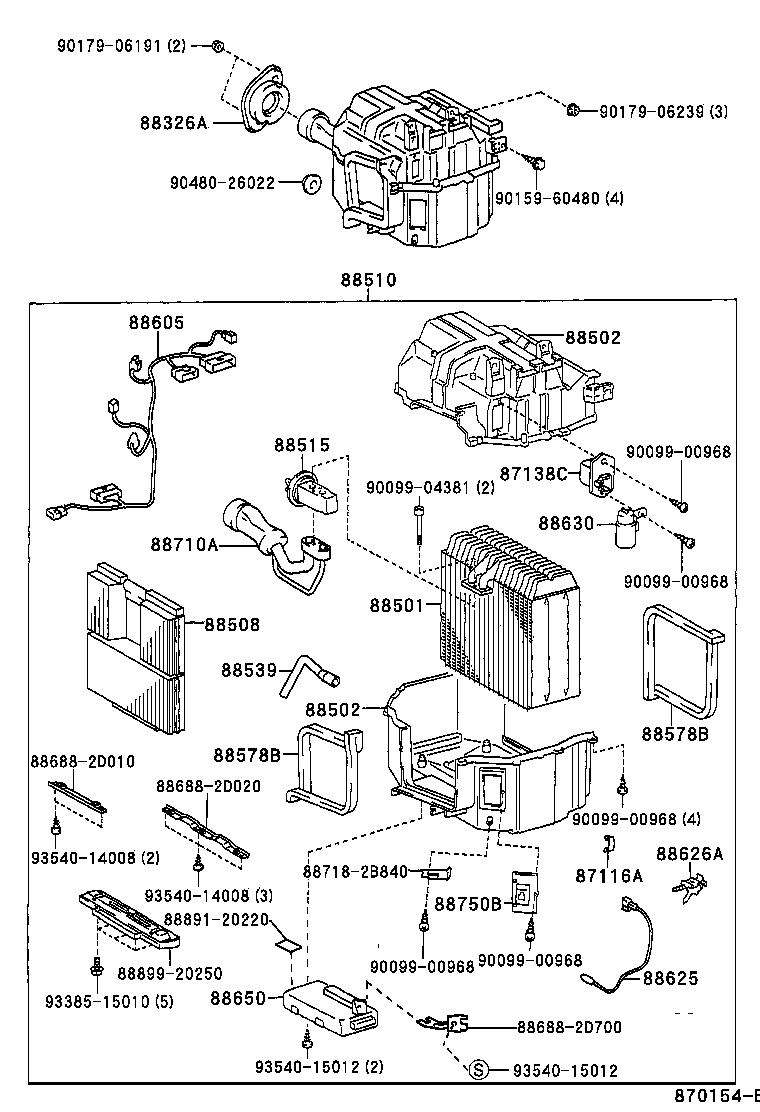

ILLUST NO. 2 OF 2(9309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

ｱﾘ(ｴｱﾌｲﾙﾀ)

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST20#	09/1993 - 12/2999	4
87138C - RESISTOR, BLOWER
87138-20140	ST200,202,203..F,SLIM ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
87138-20170	ST200,202,203..F,SLIM	09/1993 - 08/1995	1
87138-20210	ST20#..GLIM,LIM4,X ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 12/2999	1
87138-20200	ST20#..GLIM,LIM4,X	09/1993 - 08/1995	1
88326A - PLATE, COVER
88326-20050	ST20#	09/1993 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20360	ST20#	09/1993 - 10/1994	1
88501-20370	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 10/1994	1
88501-20361	ST20#	10/1994 - 08/1995	1
88501-20371	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	10/1994 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20200	ST20# 上側	09/1993 - 08/1995	1
88502-20220	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ),上側	09/1993 - 08/1995	1
88502-20210	ST20# 下側	09/1993 - 08/1995	1
88502-20230	ST20#..F,GLIM,LIM4,SLIM,X ｱﾘ(ｴｱﾌｲﾙﾀ),下側	09/1993 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20200	ST20# 上側	09/1993 - 08/1995	1
88502-20220	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ),上側	09/1993 - 08/1995	1
88502-20210	ST20# 下側	09/1993 - 08/1995	1
88502-20230	ST20#..F,GLIM,LIM4,SLIM,X ｱﾘ(ｴｱﾌｲﾙﾀ),下側	09/1993 - 12/2999	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20010	ST20#	09/1993 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-2B340	ST20#..GLIM,LIM4,X	09/1993 - 08/1995	1
88510-2B370	ST200,202,203..F,SLIM ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88510-2B360	ST200,202,203..F,SLIM	09/1993 - 08/1995	1
88510-2B350	ST20#..GLIM,LIM4,X ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88515 - VALVE, COOLER EXPANSION
88515-20120	ST20#	09/1993 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20230	ST20#	09/1993 - 08/1995	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20570	ST20# ﾌﾛﾝﾄ	10/1994 - 12/2999	1
88578-20470	ST20# ﾘﾔ	09/1993 - 12/2999	1
88578-20460	ST20# ﾌﾛﾝﾄ	09/1993 - 10/1994	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20570	ST20# ﾌﾛﾝﾄ	10/1994 - 12/2999	1
88578-20470	ST20# ﾘﾔ	09/1993 - 12/2999	1
88578-20460	ST20# ﾌﾛﾝﾄ	09/1993 - 10/1994	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D280	ST200,202,203..F,SLIM	09/1993 - 08/1995	1
88605-2D360	ST200,202,203..F,SLIM ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88605-2D340	ST20#..GLIM,LIM4,X ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88605-2D270	ST20#..GLIM,LIM4,X	09/1993 - 08/1995	1
88625 - THERMISTOR, COOLER, NO.1
88625-20350	ST20#	09/1993 - 08/1995	1
88626A - HOLDER, THERMISTOR
88626-28010	ST200,202,203..F,SLIM ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/1993 - 08/1995	2
88626-28010	ST20#	09/1993 - 12/2999	1
88630 - RELAY ASSY, COOLER
88630-20230	ST20#	09/1993 - 08/1995	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B280	ST20#	09/1993 - 08/1995	1
88650-2B150	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20500	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 12/2999	1
88710-20490	ST20#	09/1993 - 08/1995	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST20#..F,GLIM,LIM4,SLIM,X	09/1993 - 12/2999	1
Common parts
88688-2D010
88688-2D020
88688-2D700
88718-2B840
88891-20220
88899-20250
90099-00968
90099-04381
90159-60480
90179-06191
90179-06239
90480-26022
93385-15010
93540-14008
93540-15012

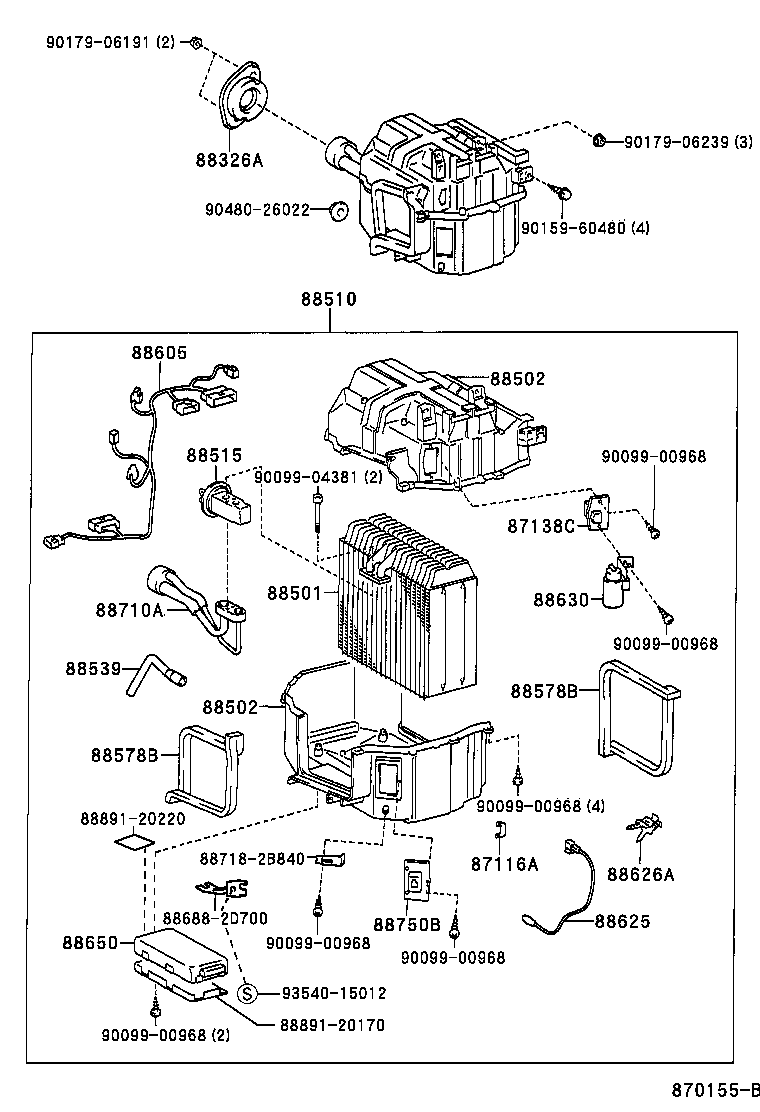

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST20#	09/1993 - 12/2999	4
87138C - RESISTOR, BLOWER
87138-20140	ST200,202,203..F,SLIM ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
87138-20170	ST200,202,203..F,SLIM	09/1993 - 08/1995	1
87138-20210	ST20#..GLIM,LIM4,X ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 12/2999	1
87138-20200	ST20#..GLIM,LIM4,X	09/1993 - 08/1995	1
88326A - PLATE, COVER
88326-20050	ST20#	09/1993 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20360	ST20#	09/1993 - 10/1994	1
88501-20370	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 10/1994	1
88501-20361	ST20#	10/1994 - 08/1995	1
88501-20371	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	10/1994 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20200	ST20# 上側	09/1993 - 08/1995	1
88502-20220	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ),上側	09/1993 - 08/1995	1
88502-20210	ST20# 下側	09/1993 - 08/1995	1
88502-20230	ST20#..F,GLIM,LIM4,SLIM,X ｱﾘ(ｴｱﾌｲﾙﾀ),下側	09/1993 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-20200	ST20# 上側	09/1993 - 08/1995	1
88502-20220	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ),上側	09/1993 - 08/1995	1
88502-20210	ST20# 下側	09/1993 - 08/1995	1
88502-20230	ST20#..F,GLIM,LIM4,SLIM,X ｱﾘ(ｴｱﾌｲﾙﾀ),下側	09/1993 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-2B340	ST20#..GLIM,LIM4,X	09/1993 - 08/1995	1
88510-2B370	ST200,202,203..F,SLIM ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88510-2B360	ST200,202,203..F,SLIM	09/1993 - 08/1995	1
88510-2B350	ST20#..GLIM,LIM4,X ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88515 - VALVE, COOLER EXPANSION
88515-20120	ST20#	09/1993 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20230	ST20#	09/1993 - 08/1995	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20570	ST20# ﾌﾛﾝﾄ	10/1994 - 12/2999	1
88578-20470	ST20# ﾘﾔ	09/1993 - 12/2999	1
88578-20460	ST20# ﾌﾛﾝﾄ	09/1993 - 10/1994	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20570	ST20# ﾌﾛﾝﾄ	10/1994 - 12/2999	1
88578-20470	ST20# ﾘﾔ	09/1993 - 12/2999	1
88578-20460	ST20# ﾌﾛﾝﾄ	09/1993 - 10/1994	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D280	ST200,202,203..F,SLIM	09/1993 - 08/1995	1
88605-2D360	ST200,202,203..F,SLIM ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88605-2D340	ST20#..GLIM,LIM4,X ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88605-2D270	ST20#..GLIM,LIM4,X	09/1993 - 08/1995	1
88625 - THERMISTOR, COOLER, NO.1
88625-20350	ST20#	09/1993 - 08/1995	1
88626A - HOLDER, THERMISTOR
88626-28010	ST200,202,203..F,SLIM ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/1993 - 08/1995	2
88626-28010	ST20#	09/1993 - 12/2999	1
88630 - RELAY ASSY, COOLER
88630-20230	ST20#	09/1993 - 08/1995	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B280	ST20#	09/1993 - 08/1995	1
88650-2B150	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 08/1995	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20500	ST20# ｱﾘ(ｴｱﾌｲﾙﾀ)	09/1993 - 12/2999	1
88710-20490	ST20#	09/1993 - 08/1995	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST20#..F,GLIM,LIM4,SLIM,X	09/1993 - 12/2999	1
Common parts
88688-2D700
88718-2B840
88891-20170
88891-20220
90099-00968
90099-04381
90159-60480
90179-06191
90179-06239
90480-26022
93540-15012
