ST202-CTPVF (1993)

Toyota Carina Ed

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

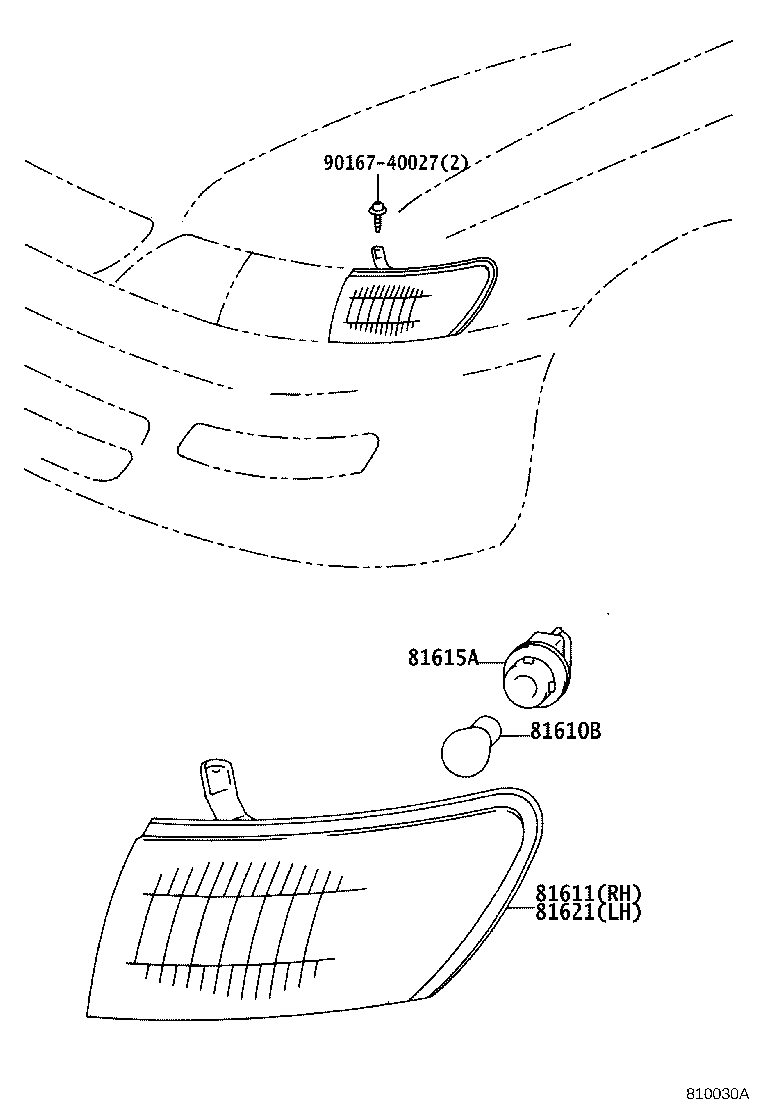

Click highlighted areas on diagram

diagram 81610B 81611 81615A 81621 9016740027
Part # Description Qty Price
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

ST20#

12V 35/5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20610

ST20#

 1
81615A - SOCKET PLUG, CLEARANCE LAMP
81615-20610

ST20#

 2
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20610

ST20#

 1
Common parts
90167-40027
