ST202-CTPVF (1993)

Toyota Carina Ed

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

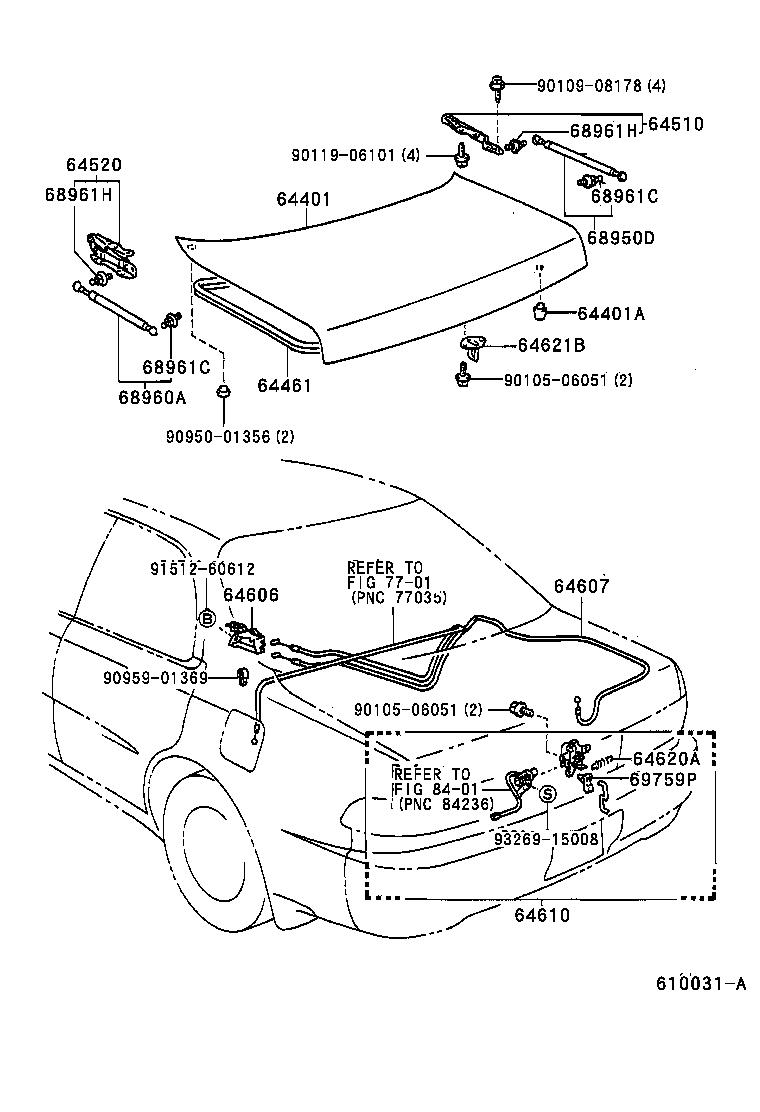

Click highlighted areas on diagram

diagram 64401 64401A 64461 64510 64520 64606 64607 64610 64620A 64621B 68950D 68960A 68961C 68961C 68961H 68961H 69759P 7701 8401 9010506051 9010506051 9010908178 9011906101 9095001356 9095901369 9151260612 9326915008
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B710

ST20#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ-)

 1
64401-2B700

ST20#

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09075

ST20#

 2
90541-09088

ST20#

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20400

ST20#

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20190

ST20#

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20180

ST20#

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20120

ST20#

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-2B010

ST20#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20250

ST20#

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-05001

ST20#

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-20180

ST20#

 1
68950D - STAY ASSY, LUGGAGE DOOR, RH
68950-80035

ST20#

ﾏｰｸ T

 1
68950-80036

ST20#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),ﾏｰｸ S

 1
68950-80034

ST20#

ﾏｰｸ E

 1
68960A - STAY ASSY, LUGGAGE DOOR, LH
68950-80035

ST20#

ﾏｰｸ T

 1
68950-80036

ST20#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),ﾏｰｸ S

 1
68950-80034

ST20#

ﾏｰｸ E

 1
68961C - BOLT, LUGGAGE DOOR STAY
68961-20130

ST20#

 2
68961C - BOLT, LUGGAGE DOOR STAY
68961-20130

ST20#

 2
68961H - BOLT, LUGGAGE DOOR STAY
68961-24030

ST20#

 2
68961H - BOLT, LUGGAGE DOOR STAY
68961-24030

ST20#

 2
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20040

ST20#

 1
Common parts
90105-06051
90109-08178
90119-06101
90950-01356
90959-01369
91512-60612
93269-15008
