ST202-CTPVF (1993)
Toyota Carina Ed
(9309- )3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

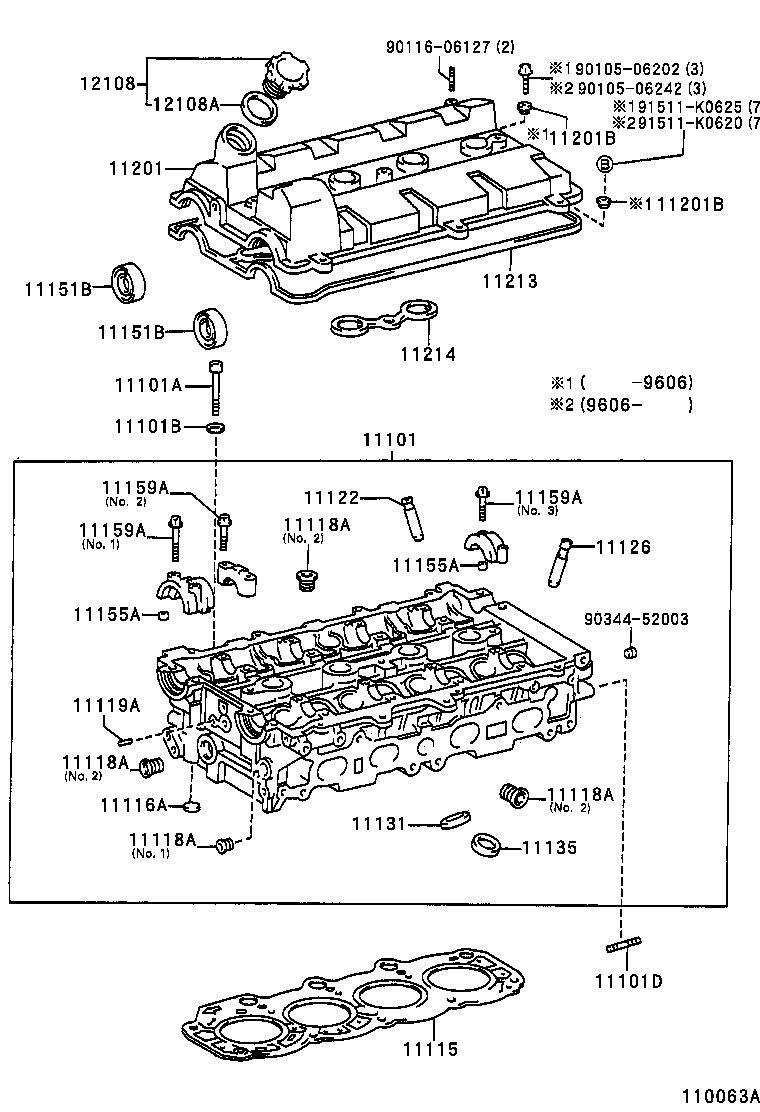

| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-88460 |
3SGE..ST202,205 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02094 |
3SGE..ST202,205 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10060 |
3SGE..ST202,205 |
10 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 90126-08008 |
3SGE..ST202,205 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88460 |
3SGE..ST202,205 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
3SGE..ST202,205 |
2 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-18010 |
3SGE..ST202,205 NO.1 |
1 | ||
| 90341-27003 |
3SGE..ST202,205 NO.2 |
4 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-18010 |
3SGE..ST202,205 NO.1 |
1 | ||
| 90341-27003 |
3SGE..ST202,205 NO.2 |
4 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-18010 |
3SGE..ST202,205 NO.1 |
1 | ||
| 90341-27003 |
3SGE..ST202,205 NO.2 |
4 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-18010 |
3SGE..ST202,205 NO.1 |
1 | ||
| 90341-27003 |
3SGE..ST202,205 NO.2 |
4 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-06003 |
3S#,4SFE..ST20# 長さ=14,外径=6 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-88460 |
3SGE..ST202,205 O/S 0.05 |
8 | ||
| 11122-88460 |
3SGE..ST202,205 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-88460 |
3SGE..ST202,205 O/S 0.05 |
8 | ||
| 11122-88460 |
3SGE..ST202,205 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-74010 |
3SGE..ST202,205 O/S 0.03 |
8 | ||
| 11131-74010 |
3SGE..ST202,205 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-74010 |
3SGE..ST202,205 O/S 0.03 |
8 | ||
| 11135-74010 |
3SGE..ST202,205 STD |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35022 |
3SGE..ST202,205 |
2 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35022 |
3SGE..ST202,205 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
3S#,4SFE..ST20# |
6 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
3S#,4SFE..ST20# |
6 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07002 |
3SGE..ST202,205 NO.2 |
16 | ||
| 90119-07001 |
3SGE..ST202,205 NO.1 |
4 | ||
| 90119-07003 |
3SGE..ST202,205 NO.3 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07002 |
3SGE..ST202,205 NO.2 |
16 | ||
| 90119-07001 |
3SGE..ST202,205 NO.1 |
4 | ||
| 90119-07003 |
3SGE..ST202,205 NO.3 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07002 |
3SGE..ST202,205 NO.2 |
16 | ||
| 90119-07001 |
3SGE..ST202,205 NO.1 |
4 | ||
| 90119-07003 |
3SGE..ST202,205 NO.3 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-88460 |
3SGE..ST202,205 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06012 |
3SGE..ST202,205 |
10 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06012 |
3SGE..ST202,205 |
10 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88460 |
3SGE..ST202,205 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-88460 |
3SGE..ST202,205 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
3S#,4SFE..ST20# |
1 | ||
| 12180-13030 |
3S#,4SFE..ST20# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
3S#,4SFE..ST20# |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-06242 | ||||
| 90116-06127 | ||||
| 90344-52003 | ||||
| 91511-K0620 | ||||
| 91511-K0625 | ||||
