ST202-CTMVF (1995)
Toyota Carina Ed

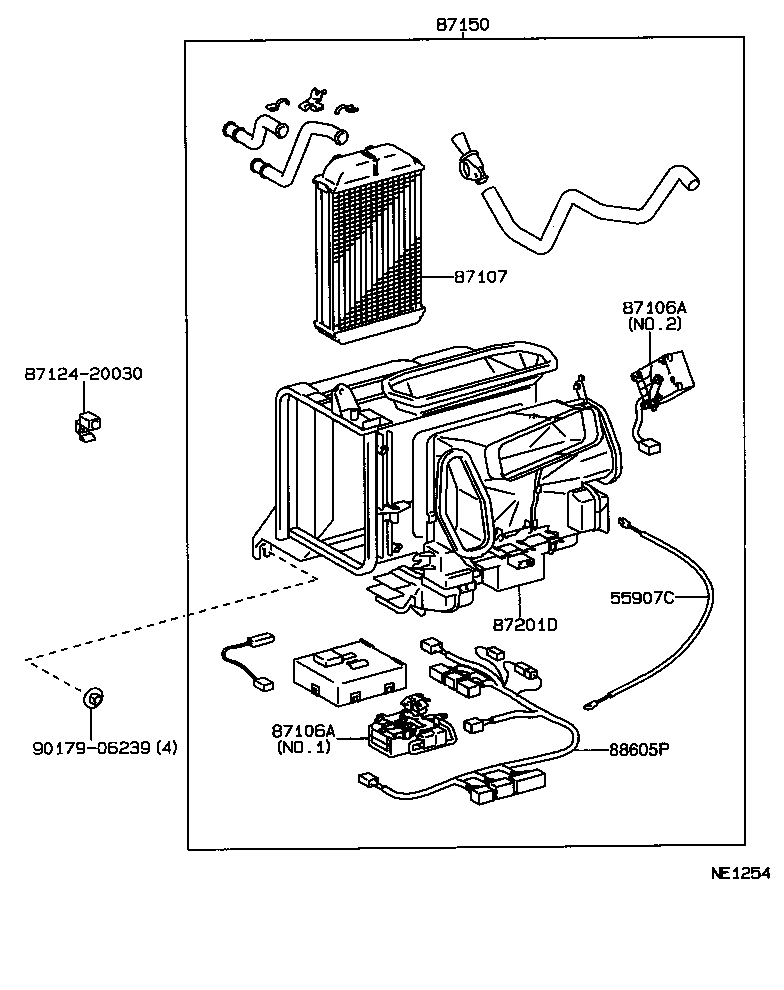

ILLUST NO. 2 OF 3(9508- )GT,GT4WD,V
ﾗｼﾞｴ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55941B - GUIDE, HEATER CONTROL | ||||
| 55941-20090 |
ST200,202,205..GT,GT4WD,V |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-20330 |
ST20#..F,GLIM,LIM4,SLIM,X ASSY TYPE A,C,NO.2 |
1 | ||
| 87106-20300 |
ST20#..F,GLIM,LIM4,SLIM,X NO.1 |
1 | ||
| 87106-20280 |
ST200,202,205..GT,GT4WD,V |
1 | ||
| 87106-20340 |
ST20#..F,GLIM,LIM4,SLIM,X ASSY TYPE B,E,NO.2 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20630 |
ST20# ASSY TYPE B,E |
1 | ||
| 87107-20620 |
ST20# ASSY TYPE A,C |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-2B280 |
ST200,202,203..F,SLIM TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B270 |
ST200,202,203..F,SLIM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B350 |
ST200,202,205..GT,GT4WD,V TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B330 |
ST202,203..E TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B360 |
ST200,202,205..GT,GT4WD,V TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B340 |
ST202,203..E TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-20350 |
ST20# ASSY TYPE B,E |
1 | ||
| 87201-20351 |
ST20# ASSY TYPE B,E |
1 | ||
| 87201-20340 |
ST20# ASSY TYPE A,C |
1 | ||
| 87201-20341 |
ST20# ASSY TYPE A,C |
1 | ||
| Common parts | ||||
| 87124-20030 | ||||
| 90179-06239 | ||||
ILLUST NO. 2 OF 3(9508- )E
ﾗｼﾞｴ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-20110 |
ST20#..F,GLIM,LIM4,SLIM,X |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-20330 |
ST20#..F,GLIM,LIM4,SLIM,X ASSY TYPE A,C,NO.2 |
1 | ||
| 87106-20300 |
ST20#..F,GLIM,LIM4,SLIM,X NO.1 |
1 | ||
| 87106-20280 |
ST200,202,205..GT,GT4WD,V |
1 | ||
| 87106-20340 |
ST20#..F,GLIM,LIM4,SLIM,X ASSY TYPE B,E,NO.2 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-20330 |
ST20#..F,GLIM,LIM4,SLIM,X ASSY TYPE A,C,NO.2 |
1 | ||
| 87106-20300 |
ST20#..F,GLIM,LIM4,SLIM,X NO.1 |
1 | ||
| 87106-20280 |
ST200,202,205..GT,GT4WD,V |
1 | ||
| 87106-20340 |
ST20#..F,GLIM,LIM4,SLIM,X ASSY TYPE B,E,NO.2 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20630 |
ST20# ASSY TYPE B,E |
1 | ||
| 87107-20620 |
ST20# ASSY TYPE A,C |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-2B280 |
ST200,202,203..F,SLIM TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B270 |
ST200,202,203..F,SLIM TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B350 |
ST200,202,205..GT,GT4WD,V TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B330 |
ST202,203..E TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B360 |
ST200,202,205..GT,GT4WD,V TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87150-2B340 |
ST202,203..E TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-20350 |
ST20# ASSY TYPE B,E |
1 | ||
| 87201-20351 |
ST20# ASSY TYPE B,E |
1 | ||
| 87201-20340 |
ST20# ASSY TYPE A,C |
1 | ||
| 87201-20341 |
ST20# ASSY TYPE A,C |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-2D320 |
ST200,202,203..F,SLIM ASSY TYPE B,E |
1 | ||
| 88605-2D460 |
ST202,203..E ASSY TYPE B |
1 | ||
| 88605-2D400 |
ST200,202,203..F,SLIM ASSY TYPE A,C |
1 | ||
| 88605-2D450 |
ST202,203..E ASSY TYPE A |
1 | ||
| Common parts | ||||
| 87124-20030 | ||||
| 90179-06239 | ||||
