ST202-CTMVF (1993)
Toyota Carina Ed
Production
Sep 1993
-
Aug 1995
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

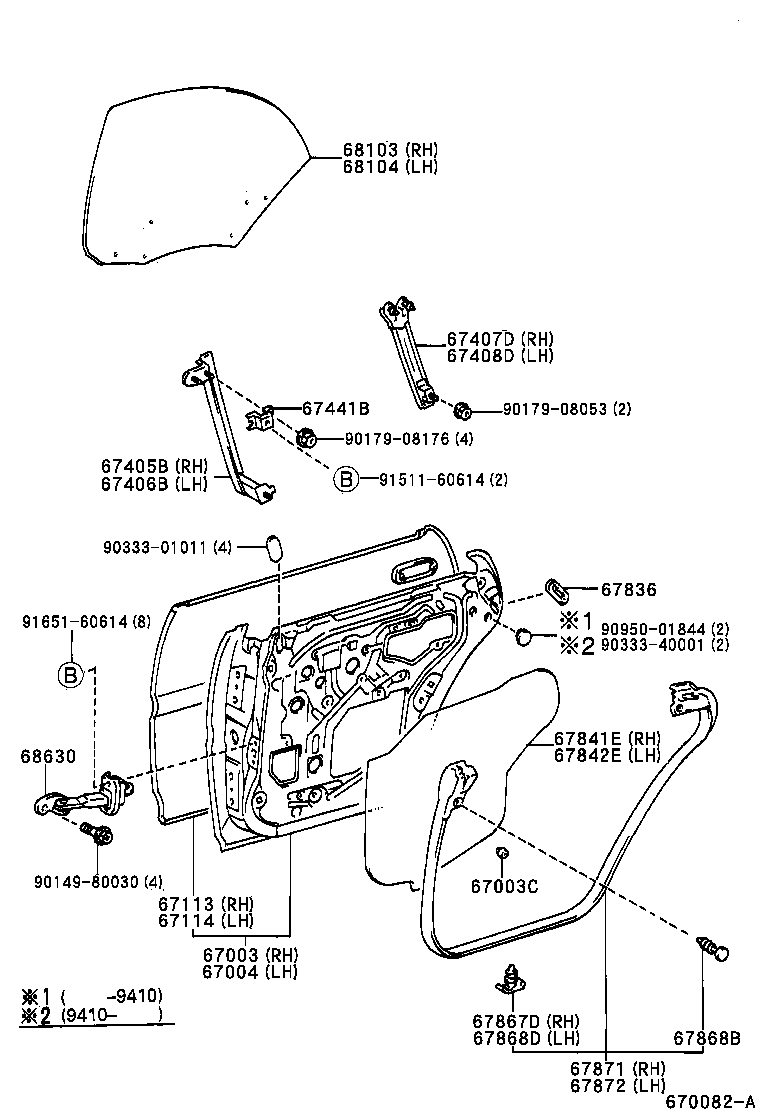

ILLUST NO. 2 OF 2(9309- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20720 |
ST20# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
ST20# |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20720 |
ST20# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20260 |
ST20# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20250 |
ST20# |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-20100 |
ST20# |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-20100 |
ST20# |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-20250 |
ST20# |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-20240 |
ST20# |
1 | ||
| 67441B - PLATE, REAR DOOR FRONT GUIDE, UPPER | ||||
| 67441-32030 |
ST20# |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
ST20# |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-20330 |
ST20# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-20230 |
ST20# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20130 |
ST20# |
17 | ||
| 67867-12150 |
ST20# |
17 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-20030 |
ST20# |
10 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20130 |
ST20# |
17 | ||
| 67867-12150 |
ST20# |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20320 |
ST20# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20320 |
ST20# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-20780 |
ST20# *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68113-20800 |
ST20# *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-20720 |
ST20# *TT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 68114-20700 |
ST20# *TT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20130 |
ST20# 右側 |
1 | ||
| 68640-20030 |
ST20# 左側 |
1 | ||
| Common parts | ||||
| 90149-80030 | ||||
| 90149-80033 | ||||
| 90179-08053 | ||||
| 90179-08176 | ||||
| 90333-01011 | ||||
| 90333-40001 | ||||
| 90950-01844 | ||||
| 91511-60614 | ||||
| 91651-60614 | ||||

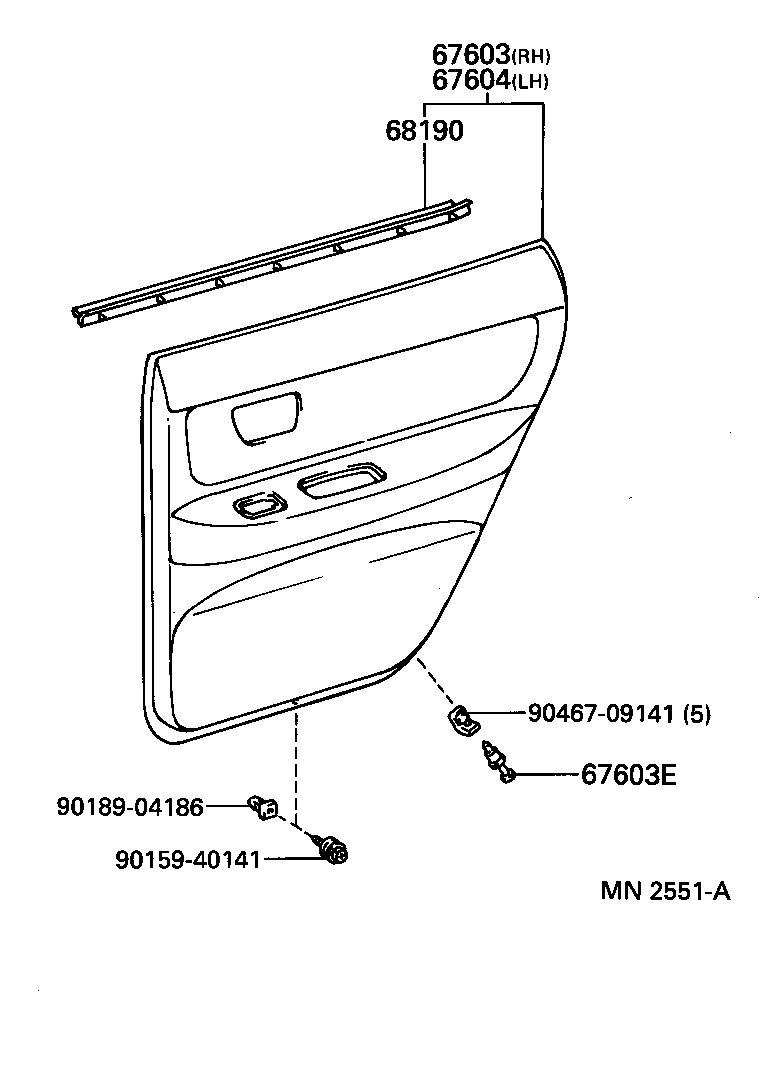

ILLUST NO. 1 OF 2(9309- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2H070B0 |
ST202,203,205..GLIM,LIM4,SLIM SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2D890B0 |
ST202,203,205..GLIM,LIM4,SLIM SHADOW GRAY,TRIM1# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-0706622 |
ST20# BLACK,TRIM1# |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2H030B0 |
ST202,203,205..GLIM,LIM4,SLIM SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2D830B0 |
ST202,203,205..GLIM,LIM4,SLIM SHADOW GRAY,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-20160 |
ST20# 左側 |
1 | ||
| 68190-20280 |
ST20# 右側 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90189-04186 | ||||
| 90467-09141 | ||||
