ST202-CTMSK (1993)

Toyota Carina Ed

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )3SFE,4SFE

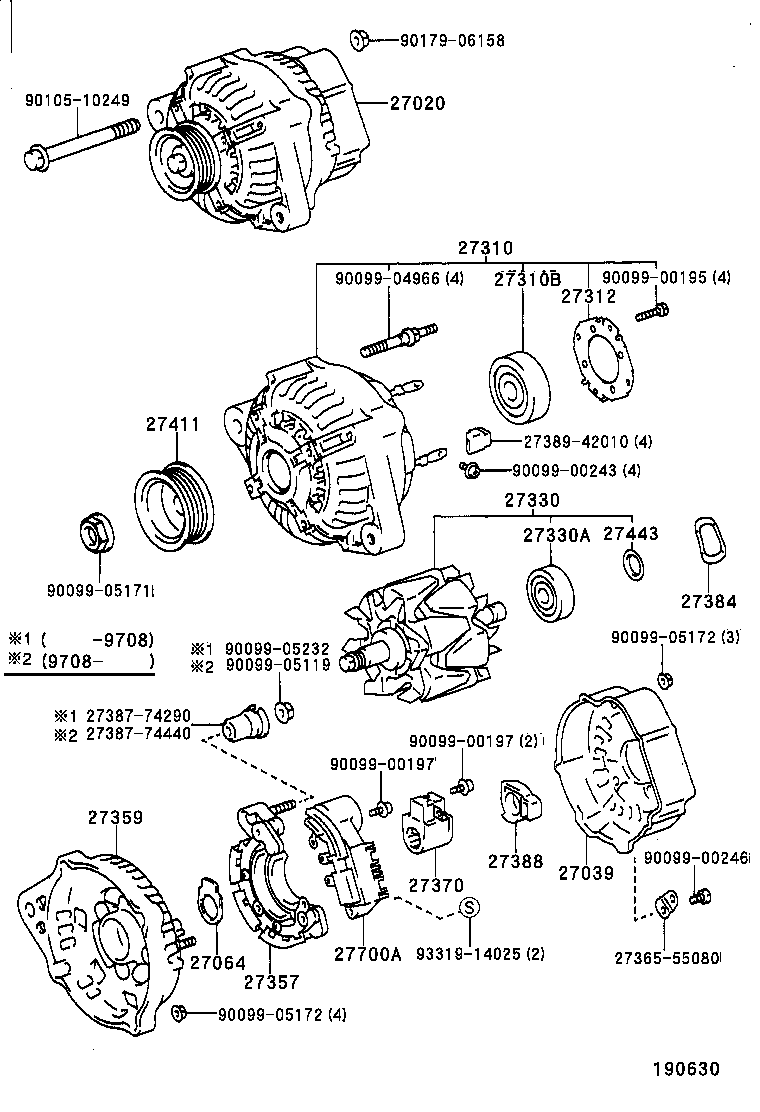

Click highlighted areas on diagram

12V 80A

diagram 27020 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 2736555080 27370 27384 2738774290 2738774440 27388 2738942010 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9009905232 9010510249 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74390

3SFE,4SFE..ST200,201,202,203

12V 80A

 1
27039 - COVER, ALTERNATOR REAR END
27039-74390

3SFE,4SFE..ST200,201,202,203

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

3S#,4SFE..ST20#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74120

3SFE,4SFE..ST200,201,202,203

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

3S#,4SFE..ST20#

 1
27312 - PLATE, RETAINER
27312-42010

3S#,4SFE..ST20#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

3S#,4SFE..ST20#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3S#,4SFE..ST20#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-74260

3S#,4SFE..ST20#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74140

3SFE,4SFE..ST200,201,202,203

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

3S#,4SFE..ST20#

 1
27384 - WASHER
27384-50030

3S#,4SFE..ST20#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

3S#,4SFE..ST20#

 1
27411 - PULLEY, ALTERNATOR
27411-42030

3S#,4SFE..ST20#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3S#,4SFE..ST20#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

3S#,4SFE..ST20#

 1
Common parts
27365-55080
27387-74290
27387-74440
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05232
90105-10249
90179-06158
93319-14025
