ST201-CTPGK (1993)

Toyota Carina Ed

Production Sep 1993 - Oct 1994
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

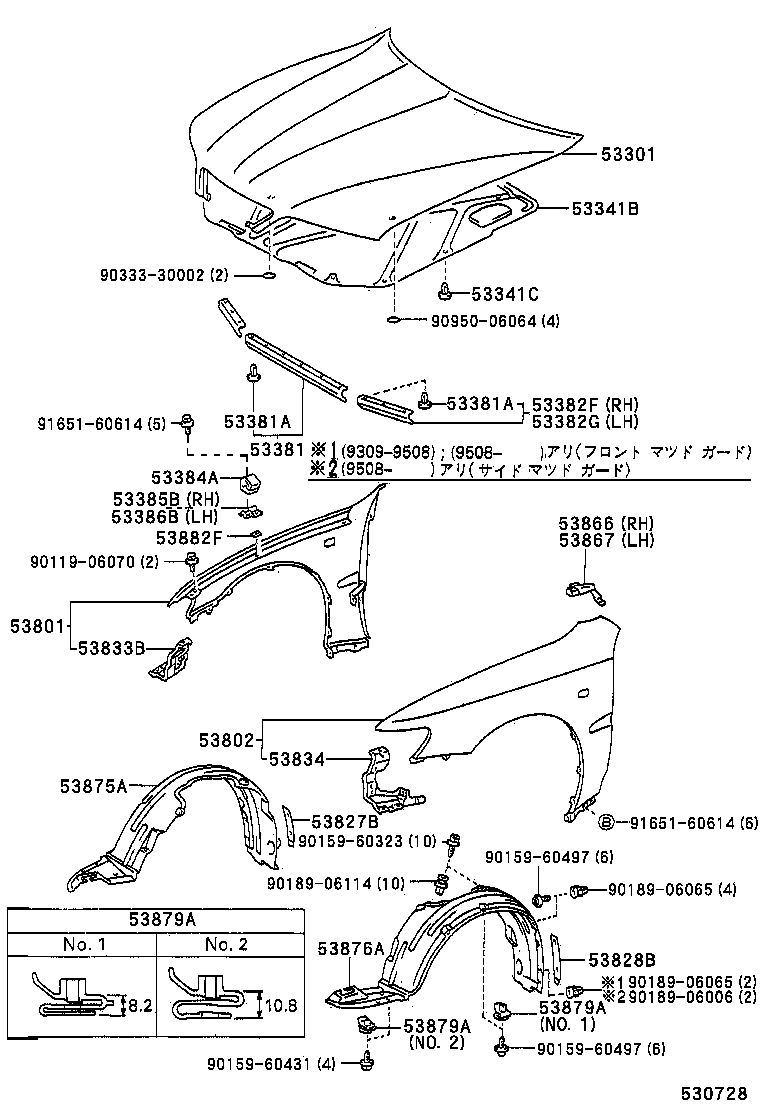

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53381A 53382F 53382G 53384A 53385B 53386B 53801 53802 53827B 53828B 53833B 53834 53866 53867 53875A 53876A 53879A 53879A 53879A 53882F 9011906070 9015960323 9015960431 9015960497 9015960497 9018906006 9018906065 9018906065 9018906114 9033330002 9095006064 9165160614 9165160614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-20530

ST20#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20140

ST20#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ST20#

 12
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ST20#

 12
53382F - SEAL, HOOD TO RADIATOR SUPPORT, RH
53382-20040

ST20#

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53382-20040

ST20#

 1
53384A - BUMPER, FENDER TO HOOD
53384-20030

ST20#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-12020

ST20#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-12020

ST20#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-2B370

ST20#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-2B360

ST20#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-2B370

ST20#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-2B360

ST20#

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-20070

ST20#

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-20070

ST20#

 1
53833B - PANEL, FRONT FENDER SIDE, RH
53083-20030

ST20#

 1
53834 - PANEL, FRONT FENDER SIDE, LOWER LH
53084-20030

ST20#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-20020

ST20#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-20040

ST20#

 1
53875A - LINER, FRONT FENDER, RH
53875-20270

ST20#

 1
53876A - LINER, FRONT FENDER, LH
53876-20280

ST20#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

ST20#

NO.1

 6
53879-17020

ST20#

NO.2

 4
53879A - RETAINER, FRONT FENDER LINER
53879-14010

ST20#

NO.1

 6
53879-17020

ST20#

NO.2

 4
53879A - RETAINER, FRONT FENDER LINER
53879-14010

ST20#

NO.1

 6
53879-17020

ST20#

NO.2

 4
53882F - SEAL, FRONT FENDER
53882-16030

ST20#

 6
Common parts
90119-06070
90159-60323
90159-60431
90159-60497
90189-06006
90189-06065
90189-06114
90333-30002
90950-06064
91651-60614
