ST201-CTMGK (1993)
Toyota Carina Ed
Production
Sep 1993
-
Oct 1994
Engine
4SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

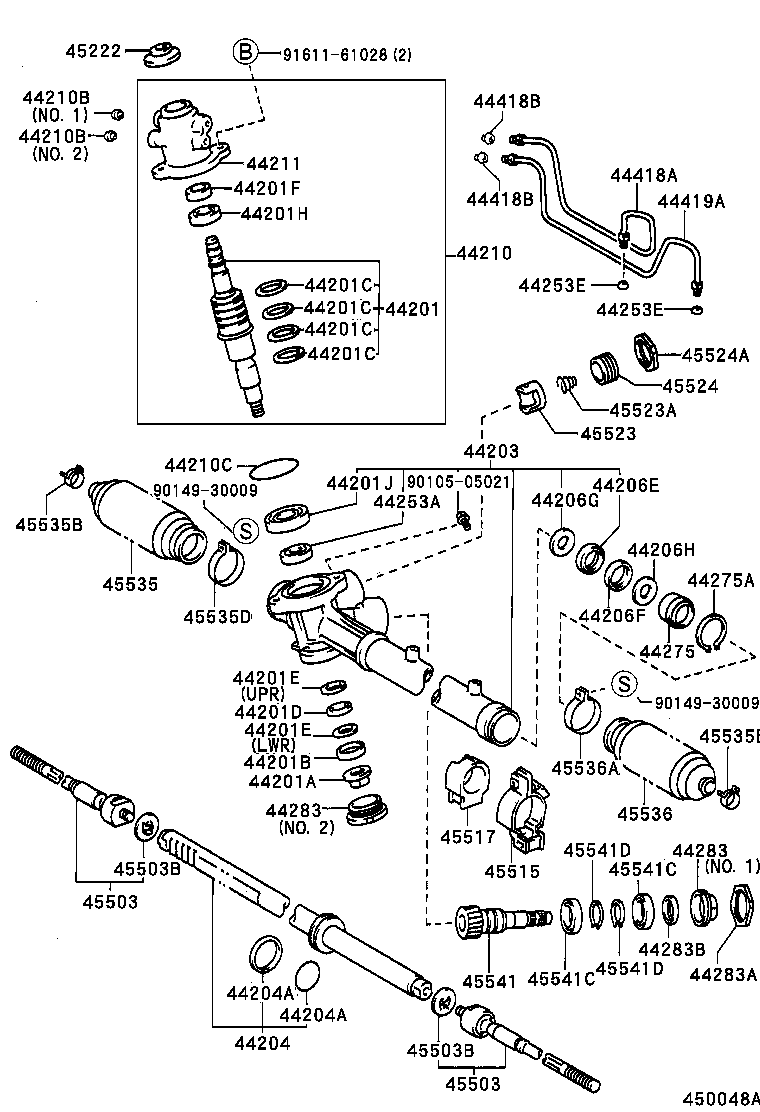

ILLUST NO. 2 OF 2(9309- )ST201,203
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20410 |
ST201,203 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-12089 |
ST201,203 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12043 |
ST201,203 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
ST201,203 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
ST201,203 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
ST201,203 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
ST201,203 |
4 | ||
| 44201D - BEARING, THRUST NEEDLE ROLLER(FOR CONTROL VALVE) | ||||
| 90374-12001 |
ST201,203 |
1 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-12063 |
ST201,203 下側 |
1 | ||
| 90201-12062 |
ST201,203 上側 |
1 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-12063 |
ST201,203 下側 |
1 | ||
| 90201-12062 |
ST201,203 上側 |
1 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
ST20# |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
ST20# |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-28007 |
ST201,203 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-20470 |
ST201,203 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20190 |
ST201,203 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41002 |
ST201,203 外側 |
1 | ||
| 90301-38004 |
ST201,203 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41002 |
ST201,203 外側 |
1 | ||
| 90301-38004 |
ST201,203 内側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30010 |
ST201,203 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-30010 |
ST201,203 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-30009 |
ST201,203 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-30009 |
ST201,203 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20500 |
ST201,203 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
ST201,203 NO.2 |
1 | ||
| 90410-04006 |
ST201,203 NO.1 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
ST201,203 NO.2 |
1 | ||
| 90410-04006 |
ST201,203 NO.1 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96711-24060 |
ST20# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20100 |
ST20# |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-28003 |
ST201,203 |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-04003 |
ST20# |
2 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-04003 |
ST20# |
2 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20070 |
ST201,203 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-54002 |
ST201,203 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-20020 |
ST201,203 NO.1 |
1 | ||
| 44283-32010 |
ST201,203 NO.2 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-20020 |
ST201,203 NO.1 |
1 | ||
| 44283-32010 |
ST201,203 NO.2 |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-55001 |
ST201,203 |
1 | ||
| 44283B - SEAL, OIL(FOR RACK HOUSING CAP) | ||||
| 90311-20004 |
ST201,203 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20290 |
ST201,203 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
ST20# |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 96390-71200 |
ST20# |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20280 |
ST201,203 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
ST20# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29515 |
ST200,201,202,203 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29515 |
ST200,201,202,203 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
ST20# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
ST20# |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-20240 |
ST201,203 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-20240 |
ST201,203 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45053-20010 |
ST201,203 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-29026 |
ST201,203 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20020 |
ST201,203 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
ST20# |
1 | ||
| 90179-36004 |
ST201,203 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20160 |
ST201,203 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
ST20# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
ST20# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-51001 |
ST20# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-20180 |
ST201,203 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-56003 |
ST201,203 |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-20040 |
ST201,203 |
1 | ||
| 45541C - BEARING, RADIAL BALL(FOR STEERING PINION) | ||||
| 90363-28007 |
ST201,203 |
2 | ||
| 45541C - BEARING, RADIAL BALL(FOR STEERING PINION) | ||||
| 90363-28007 |
ST201,203 |
2 | ||
| 45541D - RING, SHAFT SNAP(FOR STEERING PINION) | ||||
| 90520-26047 |
ST201,203 |
2 | ||
| 45541D - RING, SHAFT SNAP(FOR STEERING PINION) | ||||
| 90520-26047 |
ST201,203 |
2 | ||
| Common parts | ||||
| 90105-05021 | ||||
| 90149-30009 | ||||
| 91611-61028 | ||||

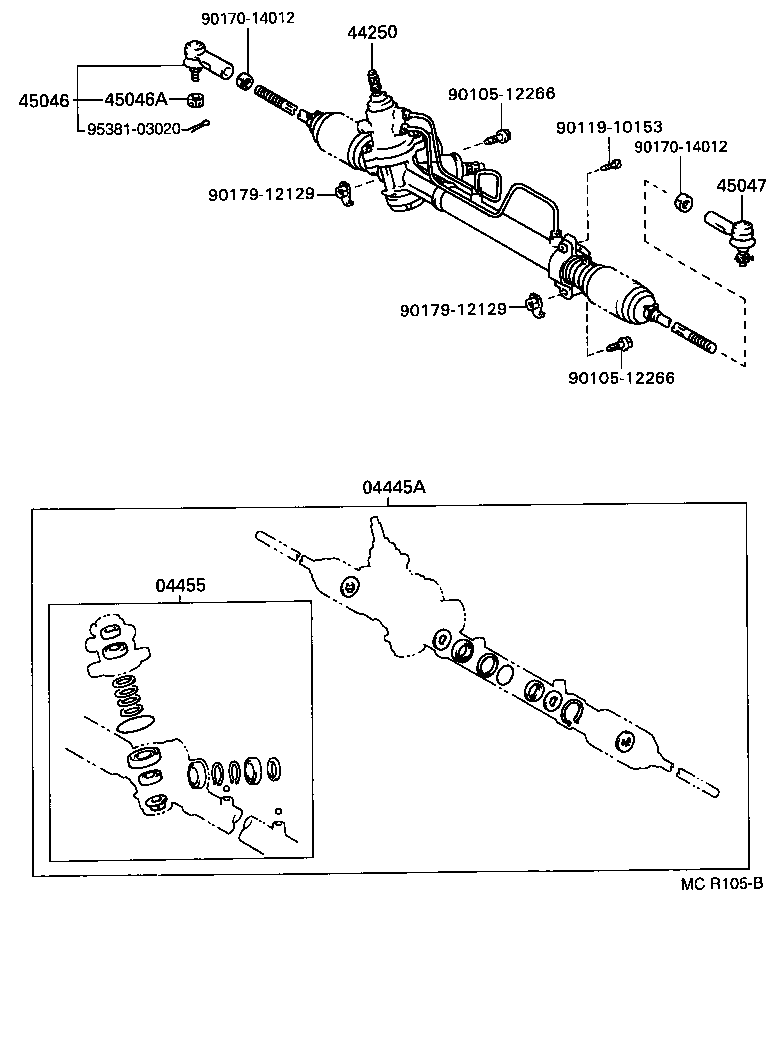

ILLUST NO. 1 OF 2(9309- )ST201,203
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20103 |
ST201,203 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20092 |
ST201,203 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20670 |
ST201,203 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
ST201,203 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ST20# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
ST201,203 |
1 | ||
| Common parts | ||||
| 90105-12266 | ||||
| 90119-10153 | ||||
| 90170-14012 | ||||
| 90179-12129 | ||||
| 95381-03020 | ||||
