ST200-CTPEK (1993)
Toyota Carina Ed
Production
Sep 1993
-
Aug 1995
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )4SFE

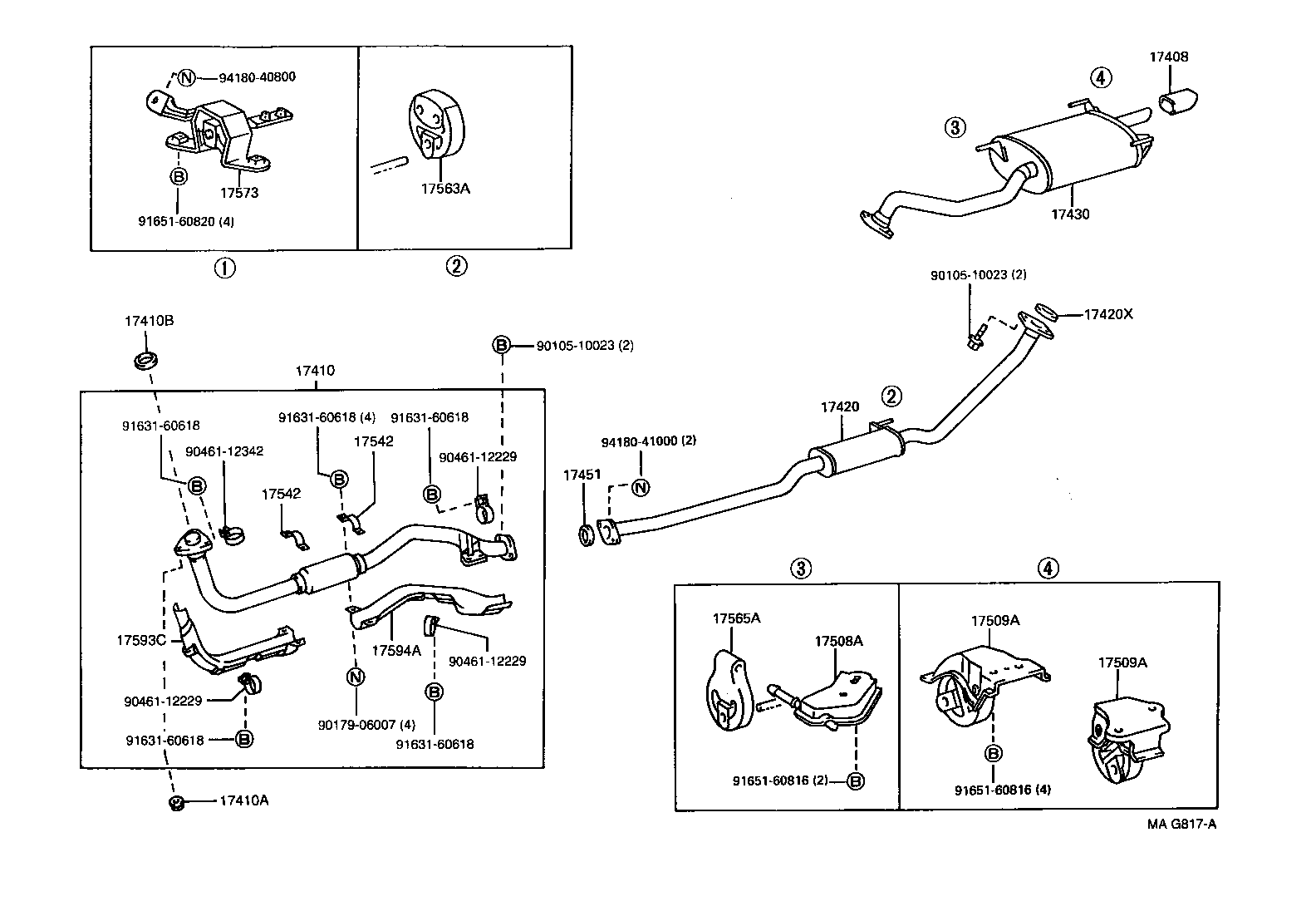

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE | ||||
| 17408-46020 |
3S#,4SFE..ST20# |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-7A220 |
4SFE..ST200,201 |
1 | ||
| 17410-7A222 |
4SFE..ST200 |
1 | ||
| 17410-7A221 |
4SFE..ST200 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3S#,4SFE..ST20# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
4SFE..ST200,201 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-74730 |
4SFE..ST200,201 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
3S#,4SFE..ST20# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-7A340 |
3SFE,4SFE..ST200,201,202,203 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
4SFE..ST200,201 |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-74080 |
3S#,4SFE..ST200,201,202,203 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-74140 |
3S#,4SFE..ST200,201,202,203 右側 |
1 | ||
| 17509-74130 |
3S#,4SFE..ST200,201,202,203 左側 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-74140 |
3S#,4SFE..ST200,201,202,203 右側 |
1 | ||
| 17509-74130 |
3S#,4SFE..ST200,201,202,203 左側 |
1 | ||
| 17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2 | ||||
| 17542-11040 |
4SFE..ST200,201 |
2 | ||
| 17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2 | ||||
| 17542-11040 |
4SFE..ST200,201 |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-64180 |
3S#,4SFE..ST200,201,202,203 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-16230 |
3S#,4SFE..ST200,201,202,203 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-74150 |
3S#,4SFE..ST200,201,202,203 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-74570 |
4SFE..ST200,201 |
1 | ||
| 17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-74510 |
4SFE..ST200,201 |
1 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90179-06007 | ||||
| 90461-12229 | ||||
| 90461-12342 | ||||
| 91631-60618 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||
