ST200-CTMGK (1993)
Toyota Carina Ed
Production
Sep 1993
-
Aug 1995
Engine
4SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )

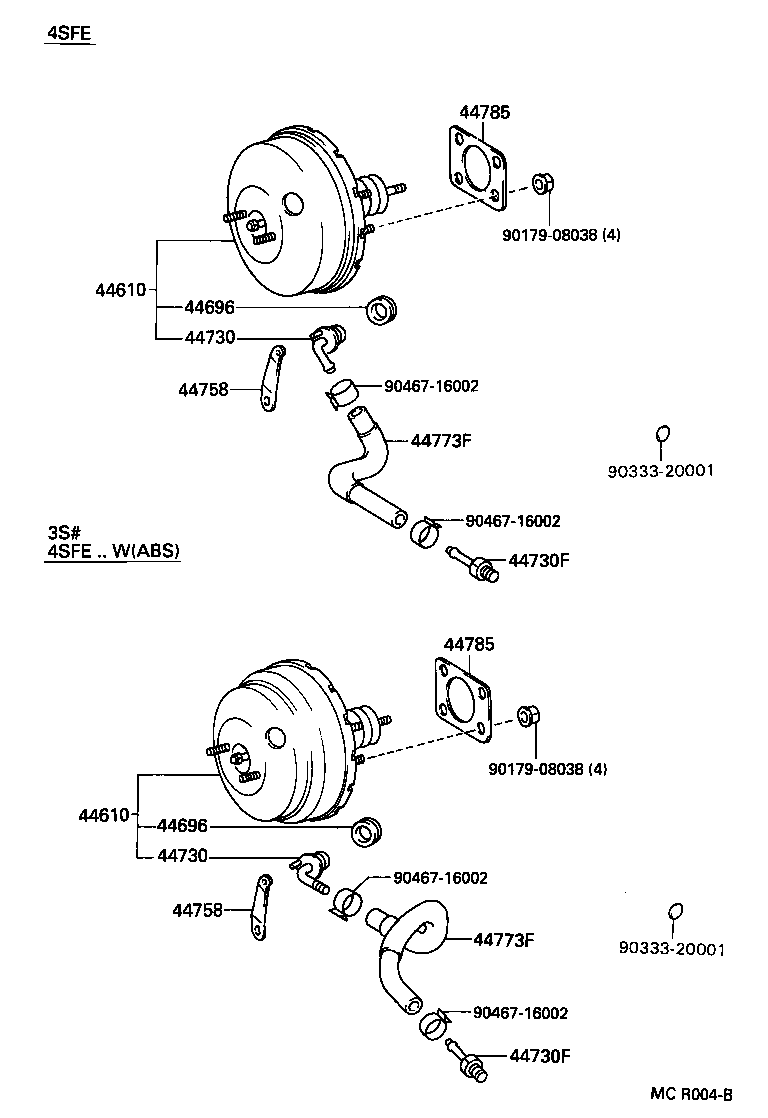

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2D630 |
ST200,201 JKC |
1 | ||
| 44610-2D650 |
ST200,201 AISIN |
1 | ||
| 44610-2D640 |
ST200,201,202,203 ｱﾘ(ABS) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2D630 |
ST200,201 JKC |
1 | ||
| 44610-2D650 |
ST200,201 AISIN |
1 | ||
| 44610-2D640 |
ST200,201,202,203 ｱﾘ(ABS) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
ST200,201 JKC |
1 | ||
| 90480-24439 |
ST200,202,203 ｱﾘ(ABS) |
1 | ||
| 90480-24439 |
ST200,201 AISIN |
1 | ||
| 90480-24439 |
ST20# ｱﾘ(ABS) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
ST200,201 JKC |
1 | ||
| 90480-24439 |
ST200,202,203 ｱﾘ(ABS) |
1 | ||
| 90480-24439 |
ST200,201 AISIN |
1 | ||
| 90480-24439 |
ST20# ｱﾘ(ABS) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
ST200,201 AISIN |
1 | ||
| 44730-14050 |
ST20# ｱﾘ(ABS) |
1 | ||
| 44730-14050 |
ST200,202,203 ｱﾘ(ABS) |
1 | ||
| 44730-28010 |
ST200,201 JKC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
ST200,201 AISIN |
1 | ||
| 44730-14050 |
ST20# ｱﾘ(ABS) |
1 | ||
| 44730-14050 |
ST200,202,203 ｱﾘ(ABS) |
1 | ||
| 44730-28010 |
ST200,201 JKC |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
ST20# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
ST20# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20270 |
ST200,201 |
1 | ||
| 44758-20280 |
ST20# ｱﾘ(ABS) |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20270 |
ST200,201 |
1 | ||
| 44758-20280 |
ST20# ｱﾘ(ABS) |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-2B010 |
ST200,201 |
1 | ||
| 44773-2B020 |
ST200,201,202,203..F,SLIM,V,X ｱﾘ(ABS) |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-2B010 |
ST200,201 |
1 | ||
| 44773-2B020 |
ST200,201,202,203..F,SLIM,V,X ｱﾘ(ABS) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20020 |
ST20# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20020 |
ST20# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90333-20001 | ||||
| 90467-16002 | ||||
