Toyota Carina ed ST183 WIRING & CLAMP

ST183-CTPVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993

Engine 3SGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(8909- )

Click highlighted areas on diagram

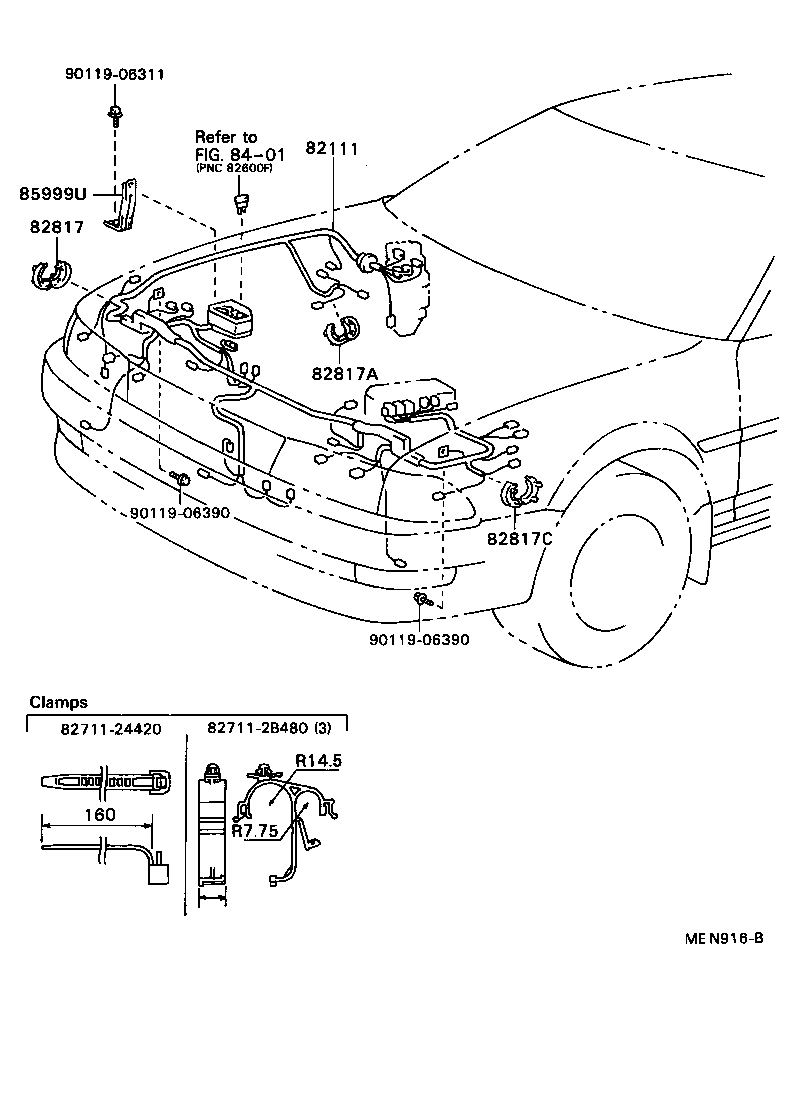

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2D250	ST183 ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ(ｵ-ﾄﾄﾞﾗｲﾌﾞ))	09/1989 - 08/1990	1
82111-2D230	ST181,183	09/1989 - 08/1990	1
82111-2G240	ST181,183	08/1991 - 09/1993	1
82111-2G250	ST183 ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ(ｵ-ﾄﾄﾞﾗｲﾌﾞ))	08/1991 - 09/1993	1
82111-2D251	ST183 ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ(ｵ-ﾄﾄﾞﾗｲﾌﾞ))	08/1990 - 08/1991	1
82111-2D231	ST181,183	08/1990 - 08/1991	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B200	ST18#	09/1989 - 09/1993	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32420	ST18#	09/1989 - 01/1990	1
82817-2B730	ST18#	01/1990 - 09/1993	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-2B200	ST18#	09/1989 - 09/1993	1
85999U - BRACKET, RELAY BLOCK
85999-20360	ST18#	09/1989 - 09/1993	1
Common parts
82711-24420
82711-2B480
90119-06311
90119-06390
Linked diagrams
8401

ILLUST NO. 2 OF 9(8909- )TWC

Click highlighted areas on diagram

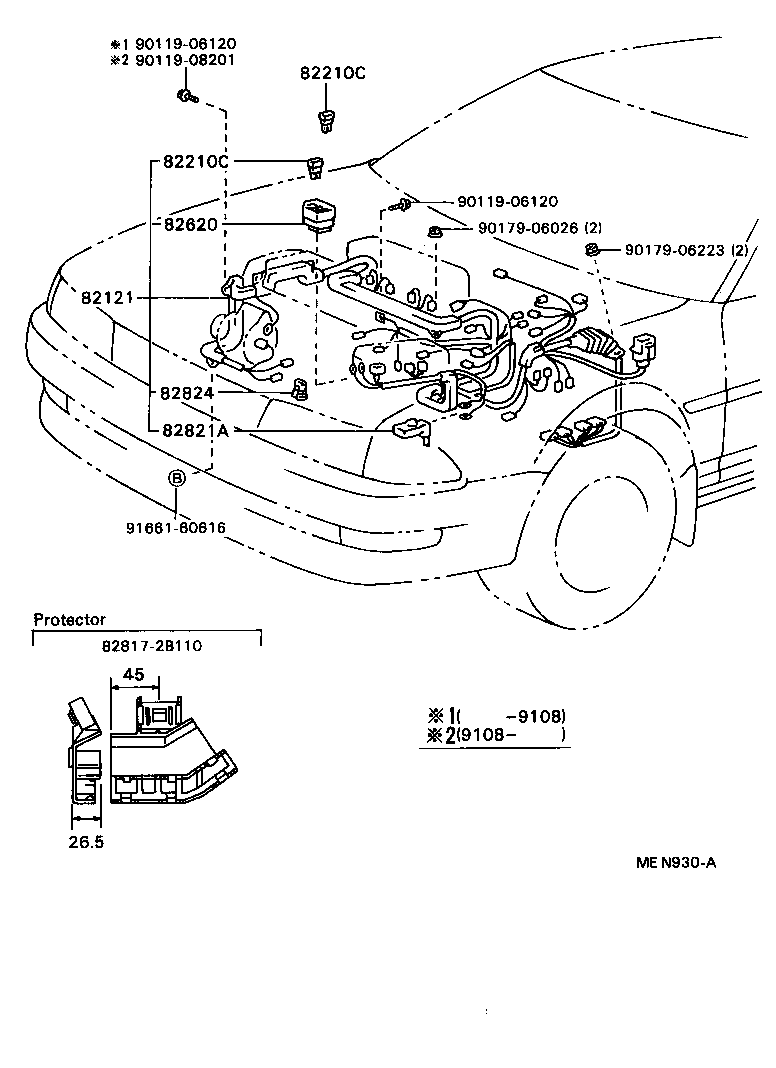

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2B840	ST182,183..ATM..TWC	09/1989 - 08/1990	1
82121-2B841	ST182,183..ATM..TWC	08/1990 - 08/1991	1
82121-2G590	ST182,183..ATM..TWC	08/1991 - 11/1992	1
82121-2G591	ST182,183..ATM..TWC	11/1992 - 09/1993	1
82210C - FUSIBLE LINK
90982-08188	ST18# 30A,ﾒｽ端子,ﾋﾟﾝｸ	09/1989 - 09/1993	1
90982-08190	ST18# 60A,ﾒｽ端子,黄	09/1989 - 09/1993	1
90982-08189	ST18# 40A,ﾒｽ端子,緑	09/1989 - 09/1993	2
90982-08246	ST18# 100A,ｵｽ端子,青	09/1989 - 09/1993	1
82210C - FUSIBLE LINK
90982-08188	ST18# 30A,ﾒｽ端子,ﾋﾟﾝｸ	09/1989 - 09/1993	1
90982-08190	ST18# 60A,ﾒｽ端子,黄	09/1989 - 09/1993	1
90982-08189	ST18# 40A,ﾒｽ端子,緑	09/1989 - 09/1993	2
90982-08246	ST18# 100A,ｵｽ端子,青	09/1989 - 09/1993	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-20140	ST18#	09/1989 - 09/1993	1
82821A - COVER, CONNECTOR
82821-20160	ST18#	09/1989 - 09/1993	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	ST182,183..TWC ENGINE WIRE	08/1991 - 09/1993	1
82824-20060	ST18# COWL WIRE	09/1989 - 09/1993	1
Common parts
82817-2B110
90119-06120
90119-08201
90179-06026
90179-06223
91661-60616

ILLUST NO. 3 OF 9(8909- )

Click highlighted areas on diagram

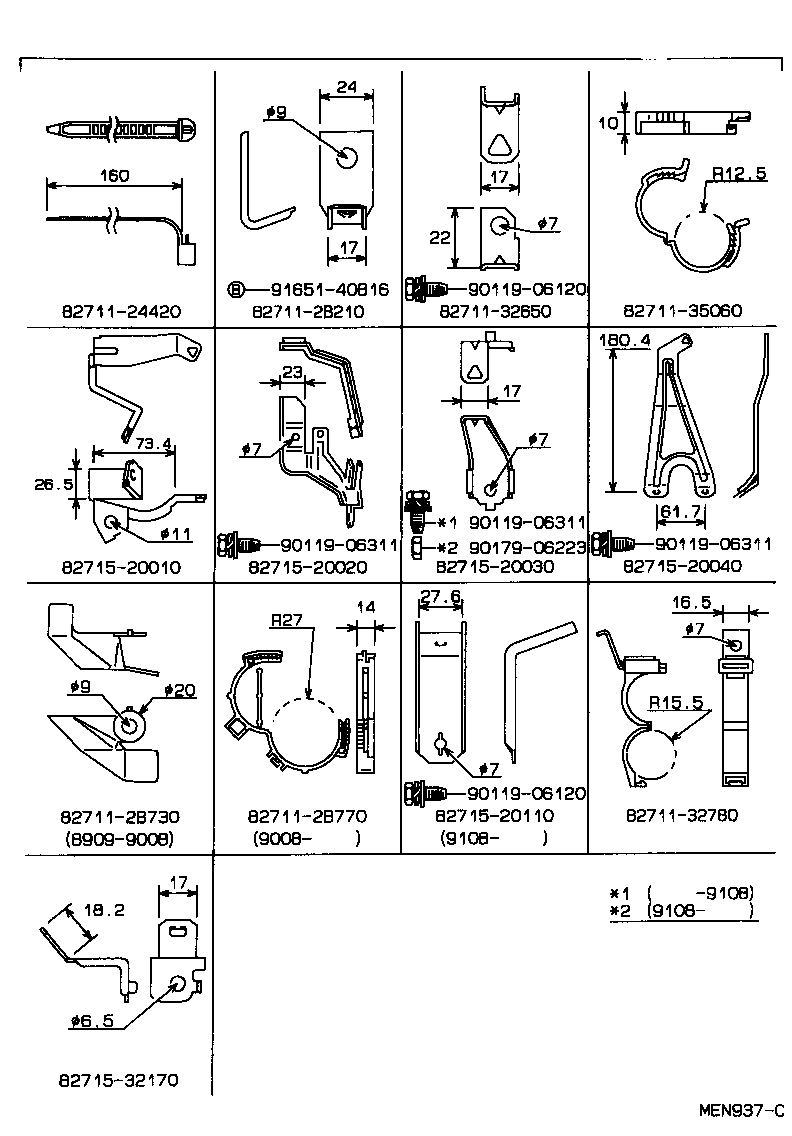

ENGINE WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-24420
82711-2B210
82711-2B730
82711-2B770
82711-32650
82711-32780
82711-35060
82715-20010
82715-20020
82715-20030
82715-20040
82715-20110
82715-32170
90119-06120
90119-06311
90179-06223
91651-40816

ILLUST NO. 4 OF 9(8909- )

Click highlighted areas on diagram

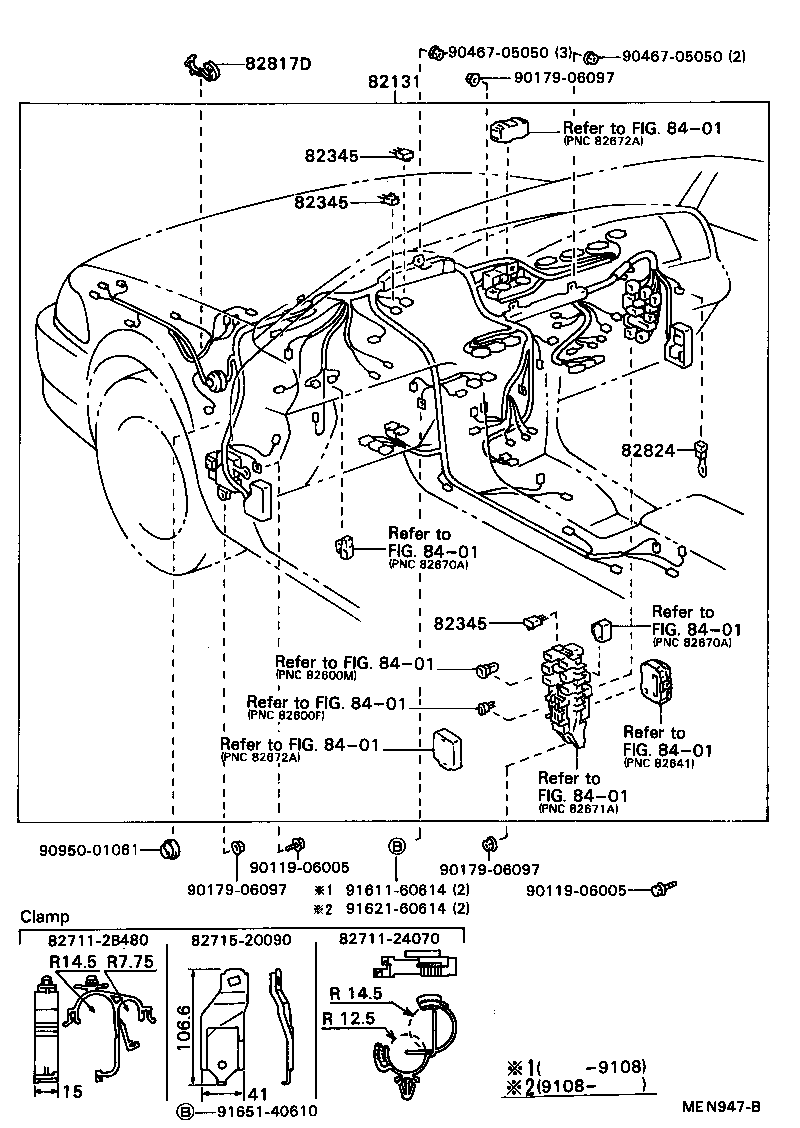

COWL WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-2H820	ST182..TWC;ST183..ATM;ST183..MTM..TWC ｱﾘ(*66)	10/1989 - 08/1990	1
82131-2H800	ST182..TWC;ST183..ATM;ST183..MTM..TWC	10/1989 - 08/1990	1
82131-2H821	ST182..TWC;ST183..ATM;ST183..MTM..TWC ｱﾘ(*66)	08/1990 - 08/1991	1
82131-2H801	ST182..TWC;ST183..ATM;ST183..MTM..TWC	08/1990 - 08/1991	1
82131-2M550	ST182,183..TWC	08/1991 - 09/1993	1
82131-2M560	ST182,183..TWC ｱﾘ(*66)	08/1991 - 09/1993	1

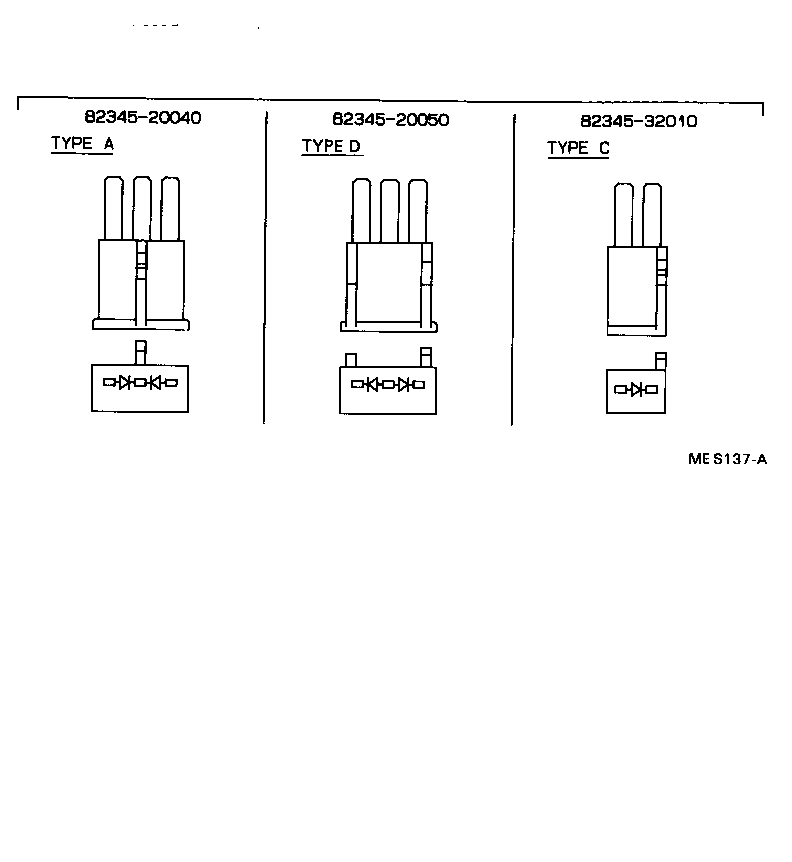

82345 - DIODE
82345-20040	ST18# COWL WIRE,TYPE A	09/1989 - 09/1993	1
82345-32010	ST182..MTM;ST182..ATM..TWC;ST180,181,183..GLIM,SLIM,X COWL WIRE,TYPE C	09/1989 - 09/1993	1
82345-32020	ST18# COWL WIRE,TYPE D	09/1989 - 09/1993	1
82345 - DIODE
82345-20040	ST18# COWL WIRE,TYPE A	09/1989 - 09/1993	1
82345-32010	ST182..MTM;ST182..ATM..TWC;ST180,181,183..GLIM,SLIM,X COWL WIRE,TYPE C	09/1989 - 09/1993	1
82345-32020	ST18# COWL WIRE,TYPE D	09/1989 - 09/1993	1
82345 - DIODE
82345-20040	ST18# COWL WIRE,TYPE A	09/1989 - 09/1993	1
82345-32010	ST182..MTM;ST182..ATM..TWC;ST180,181,183..GLIM,SLIM,X COWL WIRE,TYPE C	09/1989 - 09/1993	1
82345-32020	ST18# COWL WIRE,TYPE D	09/1989 - 09/1993	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-2B730	ST18#	01/1990 - 09/1993	1
82817-32420	ST18#	09/1989 - 01/1990	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	ST182,183..TWC ENGINE WIRE	08/1991 - 09/1993	1
82824-20060	ST18# COWL WIRE	09/1989 - 09/1993	1
Common parts
82711-24070
82711-2B480
82715-20090
90119-06005
90179-06097
90467-05050
90950-01061
91611-60614
91621-60614
91651-40610
Linked diagrams
8401

ILLUST NO. 6 OF 9(8909- )

Click highlighted areas on diagram

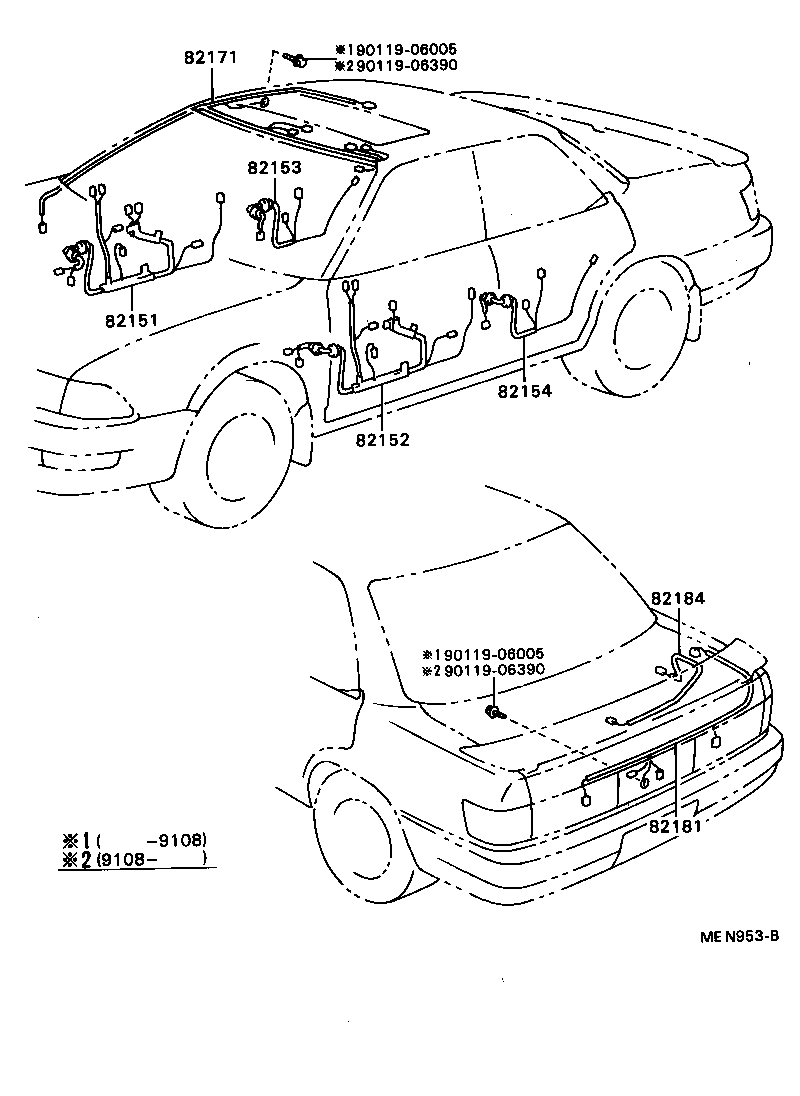

DOOR,ROOF,LUGGAGE WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-2B410	ST18#..GLIM,X	09/1989 - 08/1991	1
82151-2B400	ST18#..F,S,SLIM ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	09/1989 - 08/1991	1
82151-2D280	ST18#..F,S,SLIM	08/1991 - 09/1993	1
82151-2B420	ST18#..GLIM,X ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	09/1989 - 08/1991	1
82151-2B380	ST18#..F,S,SLIM	09/1989 - 08/1991	1
82151-2D020	ST18#..GLIM,S,SLIM,X ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾄﾞｱﾐﾗ-)	08/1990 - 08/1991	1
82151-2B410	ST18#..S,SLIM ｱﾘ(ﾃﾞﾝﾄﾞｳｶﾄｳｼｷﾄﾞｱﾐﾗ-)	09/1989 - 08/1991	1
82151-2D300	ST18#..GLIM,X	08/1991 - 09/1993	1
82151-2B420	ST18#..S,SLIM ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶﾄｳｼｷﾄﾞｱﾐﾗ-)	09/1989 - 08/1991	1
82151-2D030	ST18#..GLIM,S,SLIM,X ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾄﾞｱﾐﾗ- & 10SP)	08/1990 - 08/1991	1
82151-2D330	ST18#..GLIM,SLIM,X ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶﾄｳｼｷｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1991 - 09/1993	1
82151-2D310	ST18#..GLIM,X ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	08/1991 - 09/1993	1
82151-2D290	ST18#..F,GLIM,S,X ｱﾘ(10 ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾌｴﾝﾀﾞﾐﾗ-)	01/1993 - 09/1993	1
82151-2D320	ST18#..GLIM,S,SLIM,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶﾄｳｼｷｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1991 - 09/1993	1
82152 - WIRE, FRONT DOOR, LH
82152-2B280	ST18#..S,SLIM ｱﾘ(ﾃﾞﾝﾄﾞｳｶﾄｳｼｷﾄﾞｱﾐﾗ-)	09/1989 - 08/1990	1
82152-2B270	ST18#..F,S,SLIM ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	09/1989 - 08/1991	1
82152-2B321	ST18#..S,SLIM ｱﾘ(ﾃﾞﾝﾄﾞｳｶﾄｳｼｷﾄﾞｱﾐﾗ-)	08/1990 - 08/1991	1
82152-2B280	ST18#..(GLIM,X)..(CI,TWC)	09/1989 - 08/1990	1
82152-2B290	ST18#..(GLIM,X)..(CI,TWC) ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	09/1989 - 08/1990	1
82152-2B321	ST18#..GLIM,X	08/1990 - 08/1991	1
82152-2B760	ST18#..GLIM,S,SLIM,X ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾄﾞｱﾐﾗ-)	08/1990 - 08/1991	1
82152-2B250	ST18#..F,S,SLIM	09/1989 - 08/1991	1
82152-2B290	ST18#..S,SLIM ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶﾄｳｼｷﾄﾞｱﾐﾗ-)	09/1989 - 08/1990	1
82152-2B770	ST18#..GLIM,S,SLIM,X ｱﾘ(ﾃﾞﾝﾄﾞｳﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾄﾞｱﾐﾗ- & 10SP)	08/1990 - 08/1991	1
82152-2B331	ST18#..GLIM,X ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	08/1990 - 08/1991	1
82152-2D140	ST18#..GLIM,X	08/1991 - 09/1993	1
82152-2D170	ST18#..GLIM,SLIM,X ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶﾄｳｼｷｳﾃｷｼﾞﾖｷﾖﾄﾞｱﾐﾗ-)	08/1991 - 09/1993	1
82152-2B331	ST18#..S,SLIM ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾃﾞﾝﾄﾞｳｶﾄｳｼｷﾄﾞｱﾐﾗ-)	08/1990 - 08/1991	1
82152-2D160	ST18#..GLIM,S,SLIM,X ｱﾘ(ﾃﾞﾝﾄﾞｳｶﾄｳｼｷｳﾃｷｼﾞﾖｷﾖﾄﾞｱ- ﾐﾗ-)	08/1991 - 09/1993	1
82152-2D130	ST18#..F,GLIM,S,X ｱﾘ(10 ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ & ﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾌｴﾝﾀﾞﾐﾗ-)	01/1993 - 09/1993	1
82152-2D150	ST18#..GLIM,X ｱﾘ(10ｽﾋﾟ-ｶﾖｳﾗｼﾞｵ )	08/1991 - 09/1993	1
82152-2D120	ST18#..F,S,SLIM	08/1991 - 09/1993	1
82153 - WIRE, REAR DOOR, NO.1
82153-20161	ST18#..GLIM,X	08/1991 - 11/1991	1
82153-20241	ST18#..F,S,SLIM	08/1991 - 11/1991	1
82153-20241	ST180,181;ST182,183..GLIM,SLIM	01/1990 - 08/1991	1
82153-20240	ST180,181;ST182,183..GLIM,SLIM	09/1989 - 01/1990	1
82153-20161	ST18#	11/1991 - 09/1993	1
82154 - WIRE, REAR DOOR, NO.2
82154-20161	ST18#	11/1991 - 09/1993	1
82154-20161	ST18#..GLIM,X	08/1991 - 11/1991	1
82154-20241	ST180,181;ST182,183..GLIM,SLIM	01/1990 - 08/1991	1
82154-20240	ST180,181;ST182,183..GLIM,SLIM	09/1989 - 01/1990	1
82154-20241	ST18#..F,S,SLIM	08/1991 - 11/1991	1
82171 - WIRE, ROOF, NO.1
82171-20580	ST18#..GLIM,SLIM,X	08/1990 - 09/1993	1
82171-20580	ST182,183..TWC	09/1989 - 08/1990	1
82171-20570	ST18#..GLIM,SLIM,X ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	08/1991 - 09/1993	1
82171-20570	ST18# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/1989 - 08/1991	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20580	ST18#	09/1989 - 08/1991	1
82181-20790	ST18#	08/1991 - 09/1993	1
82184 - WIRE, BACK DOOR, NO.1
82184-20120	ST18#	09/1989 - 08/1991	1
82184-20121	ST18#	08/1991 - 09/1993	1
Common parts
90119-06005
90119-06390

ILLUST NO. 7 OF 9(8909- )

Click highlighted areas on diagram

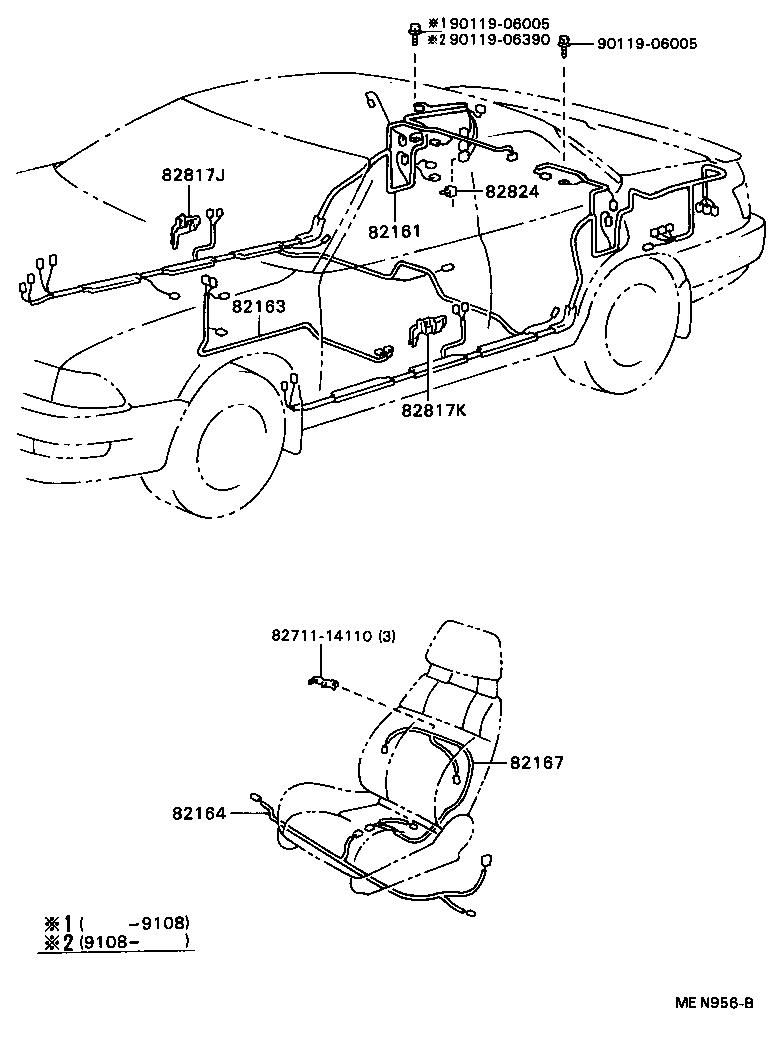

SEAT,FLOOR WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2D770	ST183 ｱﾘ(TEMS)	09/1989 - 05/1990	1
82161-2D740	ST181,183	09/1989 - 05/1990	1
82161-2D760	ST181,183..GLIM,SLIM,X ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/1989 - 05/1990	1
82161-2D780	ST183 ｱﾘ(TEMS & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/1989 - 05/1990	1
82161-2D761	ST181,183..GLIM,SLIM,X ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1990 - 08/1991	1
82161-2D771	ST183 ｱﾘ(TEMS)	05/1990 - 08/1991	1
82161-2H290	ST181,183	08/1991 - 09/1993	1
82161-2D781	ST183 ｱﾘ(TEMS & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1990 - 08/1991	1
82161-2H320	ST183 ｱﾘ(TEMS)	08/1991 - 09/1993	1
82161-2H310	ST181,183..GLIM,SLIM,X ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1991 - 09/1993	1
82161-2H330	ST183 ｱﾘ(TEMS & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1991 - 09/1993	1
82161-2D741	ST181,183	05/1990 - 08/1991	1
82163 - WIRE, FLOOR, NO.3
82163-20130	ST18#	09/1989 - 08/1991	1
82163-20170	ST18#..GLIM,SLIM,X	08/1991 - 09/1993	1
82164 - WIRE, FRAME
82164-20150	ST182,183..TWC	08/1991 - 09/1993	1
82164-20050	ST182,183..TWC	09/1989 - 08/1991	1
82167 - WIRE, SEAT, NO.1
82167-20050	ST182,183..GLIM,SLIM	08/1991 - 09/1993	1
82167-20060	ST182,183..TWC	09/1989 - 08/1991	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-2B320	ST18#	09/1989 - 09/1993	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-2B330	ST18#	09/1989 - 09/1993	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	ST182,183..TWC ENGINE WIRE	08/1991 - 09/1993	1
82824-20060	ST18# COWL WIRE	09/1989 - 09/1993	1
Common parts
82711-14110
90119-06005
90119-06390

ILLUST NO. 8 OF 9(8909- )

Click highlighted areas on diagram

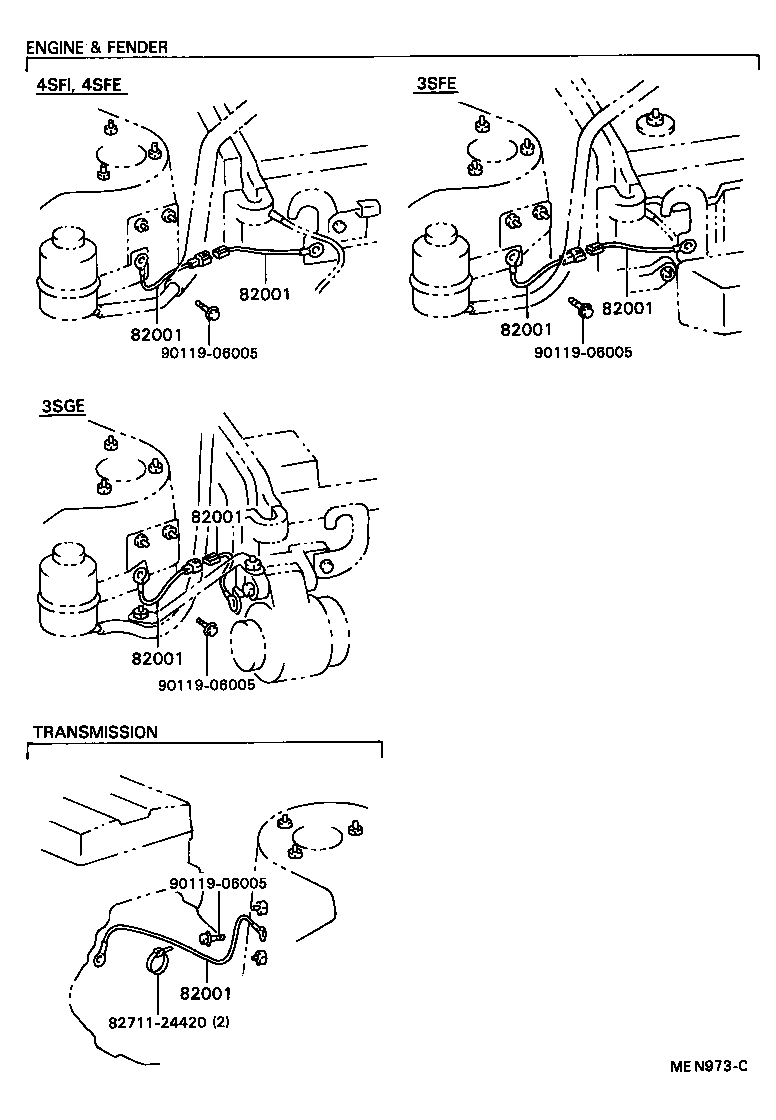

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
82001 - CABLE, BOND, NO.1
90980-07264	ST18# TRANSMISSION	09/1989 - 09/1993	1
90980-07206	ST18# FENDER RH	09/1989 - 09/1993	1
90980-07307	ST182,183..TWC ENGINE HANGGER	09/1989 - 08/1991	1
90980-07307	ST182,183..TWC ENGINE HANGER	08/1991 - 09/1993	1
Common parts
82711-24420
90119-06005

ILLUST NO. 9 OF 9(8909- )

Click highlighted areas on diagram

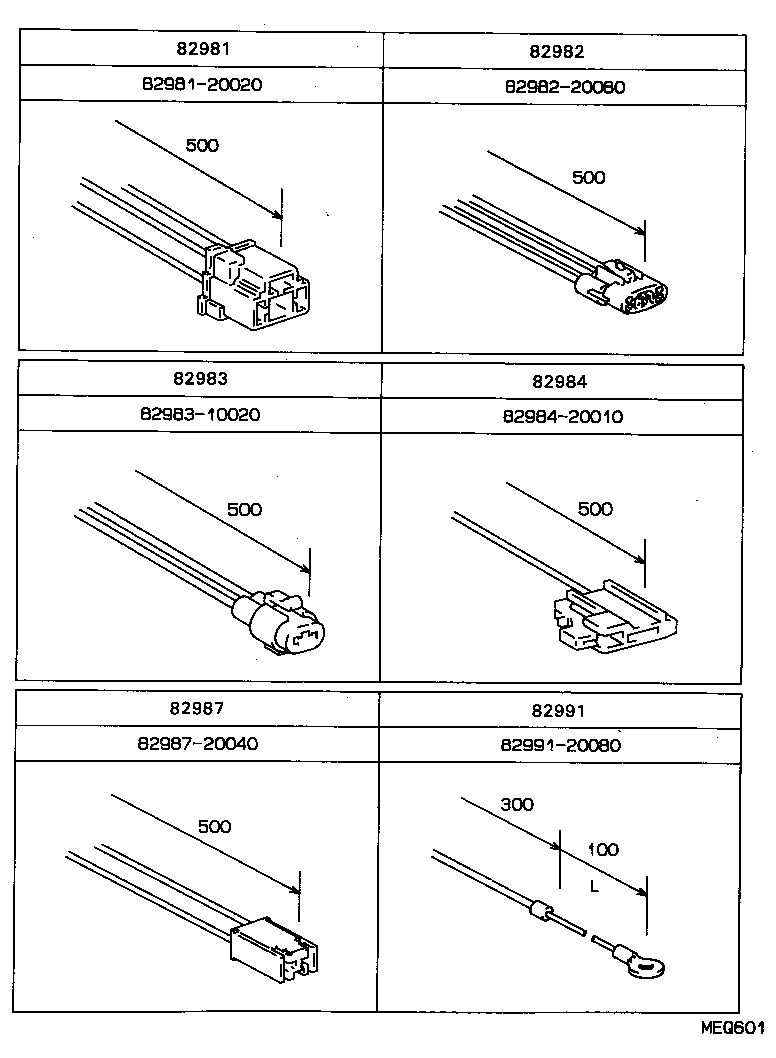

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-20020	ST18#	09/1989 - 08/1991	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-20020	ST18#	09/1989 - 09/1993	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-10020	ST18#	09/1989 - 09/1993	1
82984 - WIRE, HORN REPAIR
82984-20010	ST18#	09/1989 - 09/1993	1
82987 - WIRE, FOG LAMP REPAIR
82987-20040	ST18#	09/1989 - 09/1993	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20090	ST18# 4WS	09/1989 - 09/1993	1
82991-20080	ST18# MAIN	09/1989 - 09/1993	1
Common parts
82981-20020
82982-20080
82983-10020
82984-20010
82987-20040
82991-20080

ILLUST NO. 5 OF 9(8909- )

Click highlighted areas on diagram

COWL WIRE DIODE

Part #	Description	Period	Qty	Price
Common parts
82345-20040
82345-20050
82345-32010

ILLUST NO. 9 OF 9(8909- )

Click highlighted areas on diagram

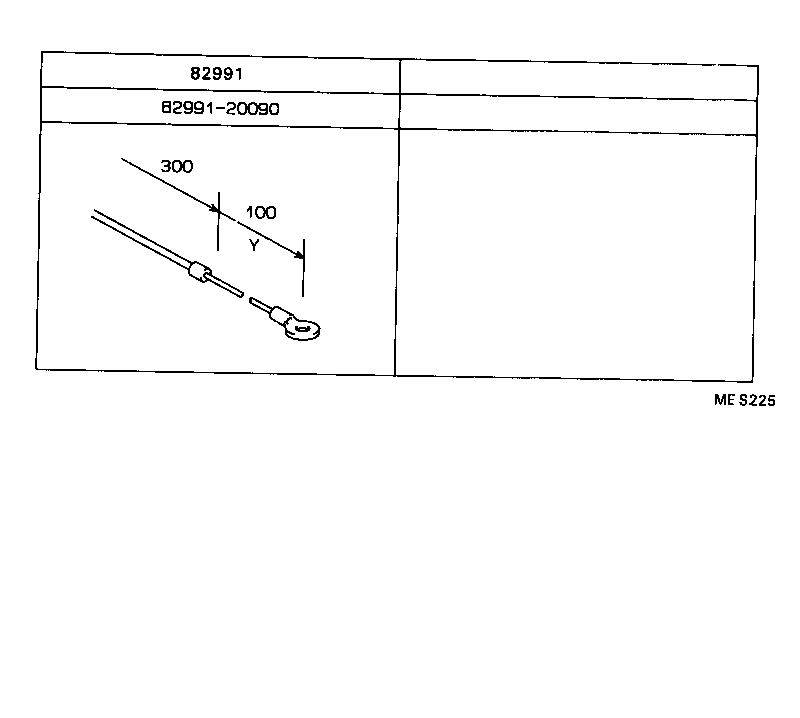

REPAIR WIRE

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20090	ST18# 4WS	09/1989 - 09/1993	1
82991-20080	ST18# MAIN	09/1989 - 09/1993	1
Common parts
82991-20090

ST183-CTPVF (1989)

ILLUST NO. 1 OF 9(8909- )

ILLUST NO. 2 OF 9(8909- )TWC

ILLUST NO. 3 OF 9(8909- )

ILLUST NO. 4 OF 9(8909- )

ILLUST NO. 6 OF 9(8909- )

ILLUST NO. 7 OF 9(8909- )

ILLUST NO. 8 OF 9(8909- )

ILLUST NO. 9 OF 9(8909- )

ILLUST NO. 5 OF 9(8909- )

ILLUST NO. 9 OF 9(8909- )

Part Price Details
