ST183-CTPVF (1989)
Toyota Carina Ed
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

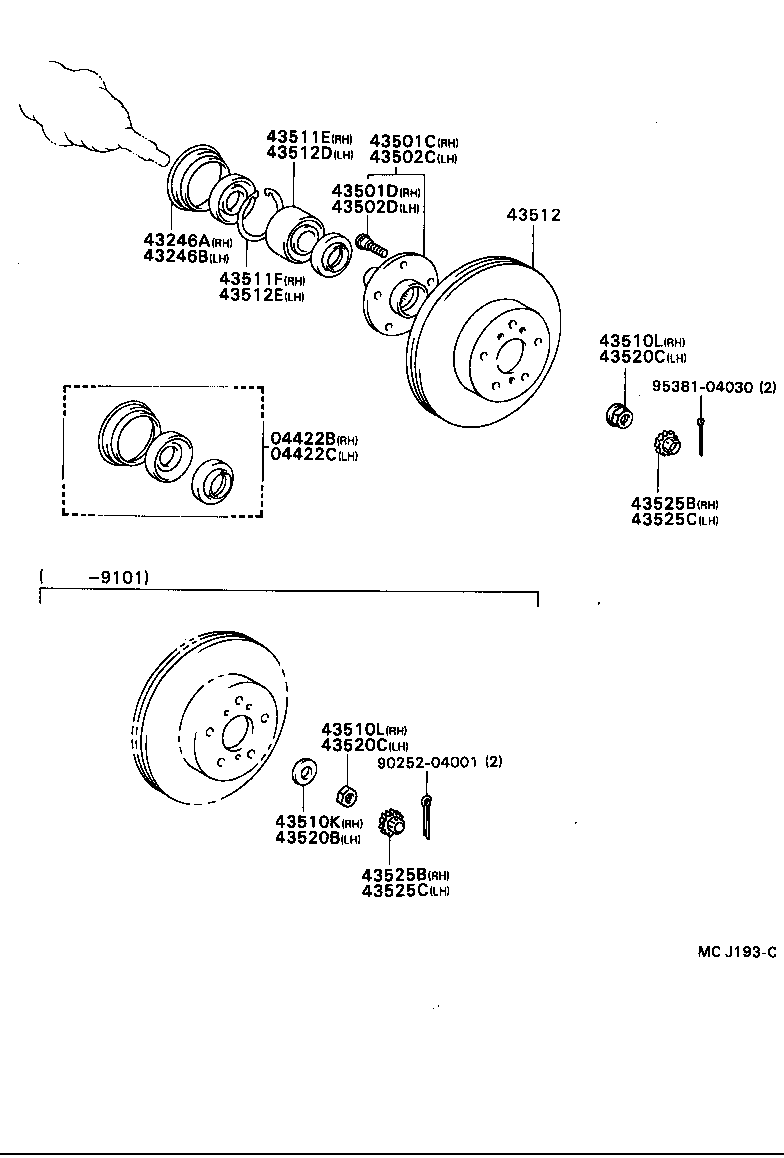

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04422B - SEAL KIT, FRONT AXLE OIL, RH | ||||
| 04422-20020 |
ST18# |
1 | ||
| 04422-20060 |
ST18# *66 |
1 | ||
| 04422C - SEAL KIT,FRONT AXLE OIL, LH | ||||
| 04422-20060 |
ST18# *66 |
1 | ||
| 04422-20020 |
ST18# |
1 | ||
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43246-20010 |
ST18# |
1 | ||
| 43246-12020 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 43246-12020 |
ST18# ｱﾘ(*66) |
1 | ||
| 43246-20010 |
ST18# |
1 | ||
| 43246-20010 |
ST182,183..TWC |
1 | ||
| 43246-12020 |
ST182,183..TWC ｱﾘ(*66) |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43246-12020 |
ST181,183 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-20100 |
ST18# |
1 | ||
| 43502-20100 |
ST182,183 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
ST182,183 |
5 | ||
| 90942-02049 |
ST18# |
5 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-20100 |
ST18# |
1 | ||
| 43502-20100 |
ST182,183 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
ST182,183 |
5 | ||
| 90942-02049 |
ST18# |
5 | ||
| 43510K - WASHER (FOR STEERING KNUCKLE RH) | ||||
| 90201-20012 |
ST18# |
1 | ||
| 43510L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-22020 |
ST18# |
1 | ||
| 90170-19001 |
ST18# |
1 | ||
| 43510L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-22020 |
ST18# |
1 | ||
| 90170-19001 |
ST18# |
1 | ||
| 43511E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-38003 |
ST18# |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-79002 |
ST18# |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-20360 |
ST182,183..TWC |
2 | ||
| 43512-20430 |
ST182,183 |
2 | ||
| 43512-20440 |
ST182,183 |
2 | ||
| 43512D - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-38003 |
ST18# |
1 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-79002 |
ST18# |
1 | ||
| 43520B - WASHER (FOR STEERING KNUCKLE LH) | ||||
| 90201-20012 |
ST18# |
1 | ||
| 43520C - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90170-19001 |
ST18# |
1 | ||
| 90179-22020 |
ST18# |
1 | ||
| 43520C - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90170-19001 |
ST18# |
1 | ||
| 90179-22020 |
ST18# |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-16010 |
ST18# |
1 | ||
| 43525-20030 |
ST18# |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-16010 |
ST18# |
1 | ||
| 43525-20030 |
ST18# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-16010 |
ST18# |
1 | ||
| 43525-20030 |
ST18# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-16010 |
ST18# |
1 | ||
| 43525-20030 |
ST18# |
1 | ||
| Common parts | ||||
| 90252-04001 | ||||
| 95381-04030 | ||||
