ST183-CTPVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ATM

Click highlighted areas on diagram

A140L,A140E

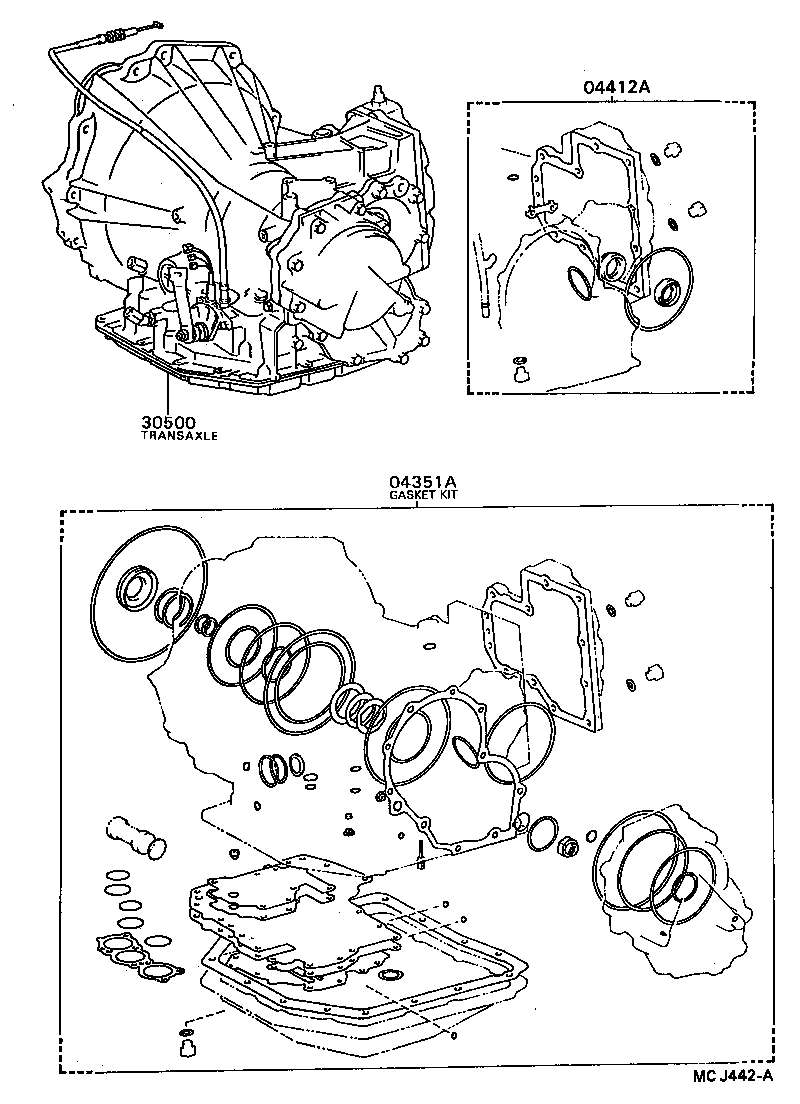

diagram 04351A 04412A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-20090

ST182,183..ATM

 1
04412A - GASKET KIT, DIFFERENTIAL CARRIER(ATM)
04412-16020

ST18#..ATM

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30110-20680

ST182,183..ATM..TWC

 1
30500-2B190

ST182,183..ATM..TWC

 1
30500-2B191

ST182,183..ATM..TWC

 1
30110-2B190

ST182,183..ATM..TWC

 1
