ST183-CTMVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

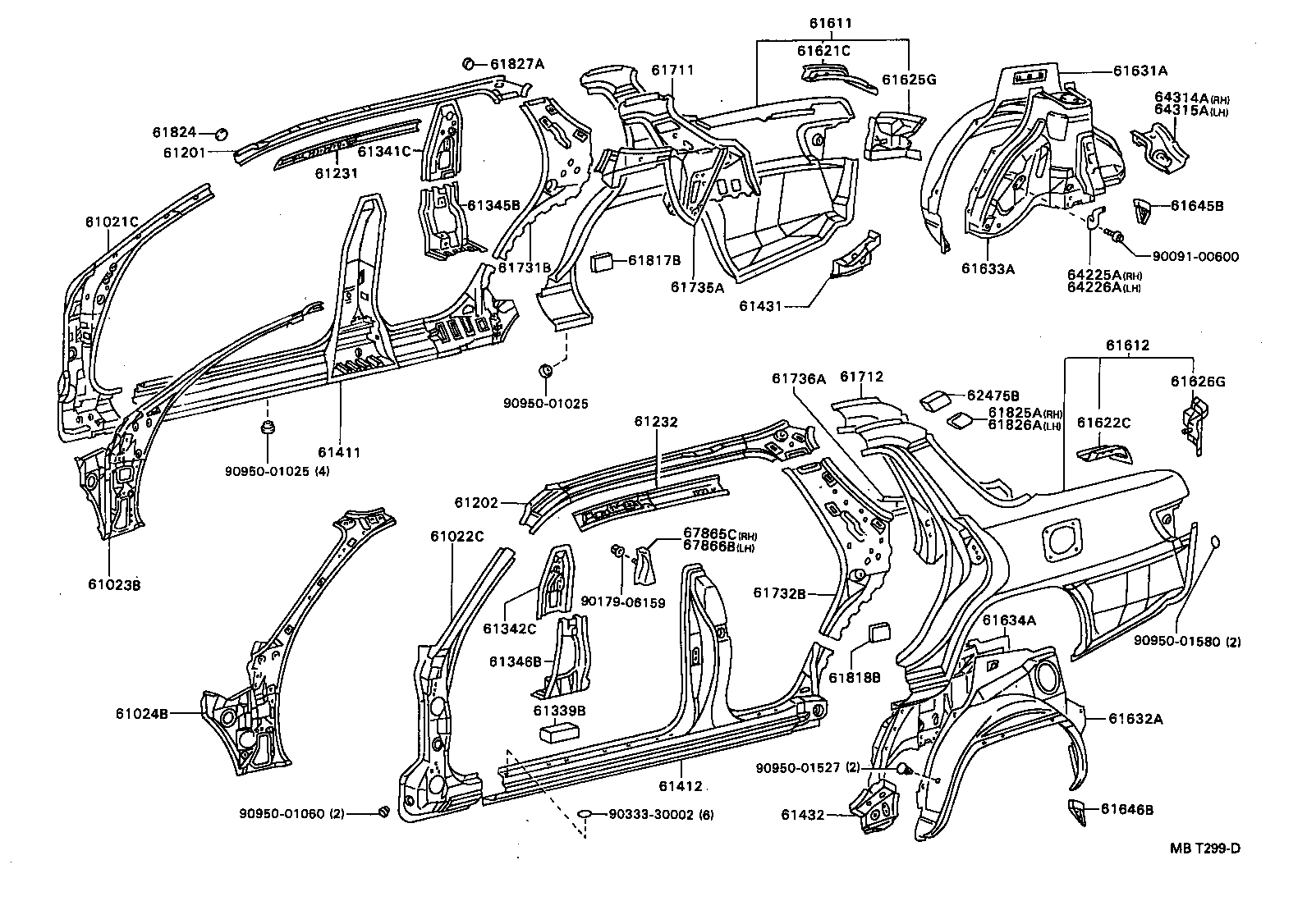

Click highlighted areas on diagram

diagram 61021C 61022C 61023B 61024B 61201 61202 61231 61232 61339B 61341C 61342C 61345B 61346B 61411 61412 61431 61432 61611 61612 61621C 61622C 61625G 61626G 61631A 61632A 61633A 61634A 61645B 61646B 61711 61712 61731B 61732B 61735A 61736A 61817B 61818B 61824 61825A 61826A 61827A 62475B 64225A 64226A 64314A 64315A 67865C 67866B 9009100600 9017906159 9033330002 9095001025 9095001025 9095001060 9095001527 9095001580
Part # Description Qty Price
61021C - PILLAR SUB-ASSY, FRONT BODY, RH
61021-20490

ST18#

 1
61022C - PILLAR SUB-ASSY, FRONT BODY, LH
61022-20420

ST18#

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-20060

ST18#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-20070

ST18#

 1
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-20090

ST18#

 1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-20090

ST18#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-20340

ST18#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-20330

ST18#

 1
61339B - SEAL, CENTER BODY PILLAR, INNER NO.1
61339-20010

ST18#

 2
61341C - PILLAR, CENTER BODY, INNER UPPER RH
61341-20130

ST18#

 1
61342C - PILLAR, CENTER BODY, INNER UPPER LH
61342-20130

ST18#

 1
61345B - PILLAR, CENTER BODY, INNER LOWER RH
61345-20060

ST18#

 1
61346B - PILLAR, CENTER BODY, INNER LOWER LH
61346-20060

ST18#

 1
61411 - PANEL, ROCKER, OUTER RH
61401-20340

ST18#

 1
61412 - PANEL, ROCKER, OUTER LH
61402-20340

ST18#

 1
61431 - PANEL, ROCKER, OUTER REAR RH
61431-20010

ST18#

 1
61432 - PANEL, ROCKER, OUTER REAR LH
61432-20010

ST18#

 1
61611 - PANEL, QUARTER, RH
61601-2B640

ST18#

 1
61612 - PANEL, QUARTER, LH
61602-2B770

ST18#

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-20160

ST18#

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-20160

ST18#

 1
61625G - EXTENSION, QUARTER PANEL, REAR RH
61625-20110

ST18#

 1
61626G - EXTENSION, QUARTER PANEL, REAR LH
61626-20110

ST18#

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-20250

ST18#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-20230

ST18#

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-20916

ST18#

 1
61607-20917

ST18#..(GLIM,S,SLIM,X)..(EFI,TWC)

ｱﾘ(*66)

 1
61607-20917

ST181,182,183

ｱﾘ(*66)

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-20911

ST18#

 1
61608-20912

ST18#..EFI,TWC

ｱﾘ(*66)

 1
61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-20080

ST18#

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-20080

ST18#

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-20901

ST18#

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-20901

ST18#

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-20250

ST18#

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-20250

ST18#

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-20160

ST18#

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-20150

ST18#

 1
61817B - COVER, ROOF SIDE, INNER LOWER RH
61817-20010

ST18#

 1
61818B - COVER, ROOF SIDE, INNER LWR LH
61817-20010

ST18#

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-20120

ST18#

 1
61825A - PLATE, NOISE CONTROL, NO.2
61825-20110

ST18#

 1
61826A - PLATE, NOISE CONTROL, NO.3
61826-20060

ST18#

 1
61827A - PLATE, NOISE CONTROL, NO.4
61827-20020

ST18#

T=2.0

 4
90333-30002

ST18#

 4
62475B - SEAL, ROOF SIDE, INNER
62475-20230

ST18#

 2
64225A - HANGER, REAR SEAT CUSHION SUPPORT
64225-20020

ST18#

 1
64226A - HANGER, REAR SEAT CUSHION SUPPORT, NO.2
64226-20050

ST18#

 1
64314A - REINFORCEMENT, PACKAGE TRAY BRACKET, RH
64314-20160

ST18#

 1
64315A - REINFORCEMENT, PACKAGE TRAY BRACKET, LH
64315-20150

ST18#

 1
67865C - WEATHERSTRIP, CENTER PILLAR UPPER END, RH
67865-20010

ST18#

 1
67866B - WEATHERSTRIP, CENTER PILLAR UPPER END, LH
67866-20010

ST18#

 1
Common parts
90091-00600
90179-06159
90333-30002
90950-01025
90950-01060
90950-01527
90950-01580
