ST183-CTMVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )3SGE

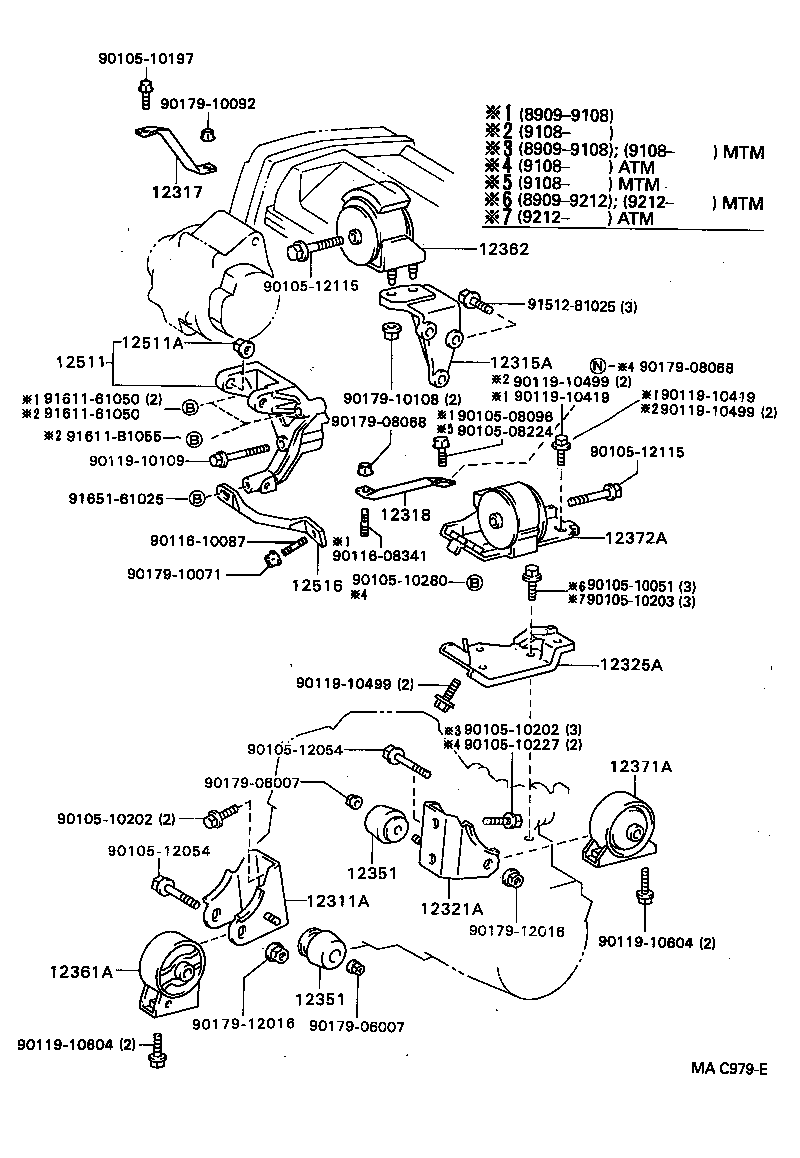

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12351 12351 12361A 12362 12371A 12372A 12511 12511A 12516 9010508096 9010508224 9010510051 9010510197 9010510202 9010510202 9010510203 9010510227 9010510280 9010512054 9010512054 9010512115 9010512115 9011608341 9011610087 9011910109 9011910419 9011910419 9011910499 9011910499 9011910499 9011910604 9011910604 9017906007 9017906007 9017908068 9017908068 9017910071 9017910092 9017910108 9017912016 9017912016 9151281025 9161161050 9161161050 91611B1055 9165161025
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74080

3S#,4SF#..ST18#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74030

3S#,4SF#..ST18#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-74070

3SGE..ST182,183

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-74090

3S#,4SF#..ST18#..MTM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74180

3S#,4SF#..ST18#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74080

3S#,4SF#..ST18#..MTM

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74060

3S#,4SF#..ST18#..MTM

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74060

3S#,4SF#..ST18#..MTM

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74130

3S#,4SF#..ST18#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74150

3SGE..ST182,183..MTM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74180

3S#,4SF#..ST18#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74200

3S#,4SF#..ST18#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74060

3SGE..ST182,183

 1
12511A - BUSH, ALTERNATOR BRACKET
27351-70010

3SGE..ST182,183

 1
12516 - BRACKET, ALTERNATOR, NO.2
12512-74030

3SGE..ST182,183

 1
Common parts
90105-08096
90105-08224
90105-10051
90105-10197
90105-10202
90105-10203
90105-10227
90105-10280
90105-12054
90105-12115
90116-08341
90116-10087
90119-10109
90119-10419
90119-10499
90119-10604
90179-06007
90179-08068
90179-10071
90179-10092
90179-10108
90179-12016
91512-81025
91611-61050
91611-B1055
91651-61025
