ST183-CTMSK (1989)
Toyota Carina Ed
ILLUST NO. 2 OF 2(8909- )
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20050 |
ST182,183 |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
ST18# |
2 | ||
| 44543-14010 |
ST182,183 |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-14010 |
ST18# |
2 | ||
| 44543-14010 |
ST182,183 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
ST182,183 |
3 | ||
| 44545-22070 |
ST182,183 |
3 | ||
| 44545-14010 |
ST18# |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
ST182,183 |
3 | ||
| 44545-22070 |
ST182,183 |
3 | ||
| 44545-14010 |
ST18# |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-14010 |
ST182,183 |
3 | ||
| 44545-22070 |
ST182,183 |
3 | ||
| 44545-14010 |
ST18# |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
ST18# |
3 | ||
| 44546-14010 |
ST182,183 |
3 | ||
| 44546-22070 |
ST182,183 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
ST18# |
3 | ||
| 44546-14010 |
ST182,183 |
3 | ||
| 44546-22070 |
ST182,183 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-14010 |
ST18# |
3 | ||
| 44546-14010 |
ST182,183 |
3 | ||
| 44546-22070 |
ST182,183 |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-20011 |
ST18#..EFI,TWC |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90413-10244 |
ST18#..EFI,TWC |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-20031 |
ST18#..EFI,TWC |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-20011 |
ST18#..EFI,TWC |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-20012 |
ST18#..EFI,TWC |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-20011 |
ST18#..EFI,TWC |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-20040 |
ST18#..EFI,TWC |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-20010 |
ST18#..EFI,TWC |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20040 |
ST18#..EFI,TWC |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44595-20010 |
ST18#..EFI,TWC |
1 | ||
| 44598A - COVER, BRAKE ACTUATOR | ||||
| 44598-20020 |
ST18# |
1 | ||
| 44598-20010 |
ST18#..EFI,TWC |
1 | ||
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12100 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47150-20140 |
ST182,183 |
1 | ||
| 47150-32060 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47150-16040 |
ST182,183 |
1 | ||
| Common parts | ||||
| 90091-40608 | ||||
| 90099-04400 | ||||
| 90119-08778 | ||||
| 90179-10074 | ||||
| 90467-11064 | ||||
| 90949-01582 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||
| 91661-60814 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12100 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47150-20140 |
ST182,183 |
1 | ||
| 47150-32060 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47150-16040 |
ST182,183 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20721 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47311-20690 |
ST182,183 |
1 | ||
| 47311-20800 |
ST182,183 |
1 | ||
| 47311-20790 |
ST182,183 |
1 | ||
| 47311-20720 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10208 |
ST182,183 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
ST18# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20460 |
ST182,183 |
1 | ||
| 47313-20491 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47313-20490 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47313-20560 |
ST182,183 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47389-30010 |
ST18# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47389-30010 |
ST18# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20370 |
ST182,183 |
1 | ||
| 47314-20430 |
ST182,183 |
1 | ||
| 47314-20380 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47314-20381 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20500 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47315-20470 |
ST18# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST182,183 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST182,183 |
4 | ||
| 47389-30010 |
ST182,183 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST182,183 |
4 | ||
| 47389-30010 |
ST182,183 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20250 |
ST18# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20370 |
ST18# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20030 |
ST18# |
1 | ||
| 47371-20150 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47371-20150 |
ST18# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20210 |
ST18# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20160 |
ST18#..EFI,TWC |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20230 |
ST18# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-20090 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06437 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-08588 | ||||
| 90468-08032 | ||||
| 90480-01514 | ||||
| 91651-B0614 | ||||

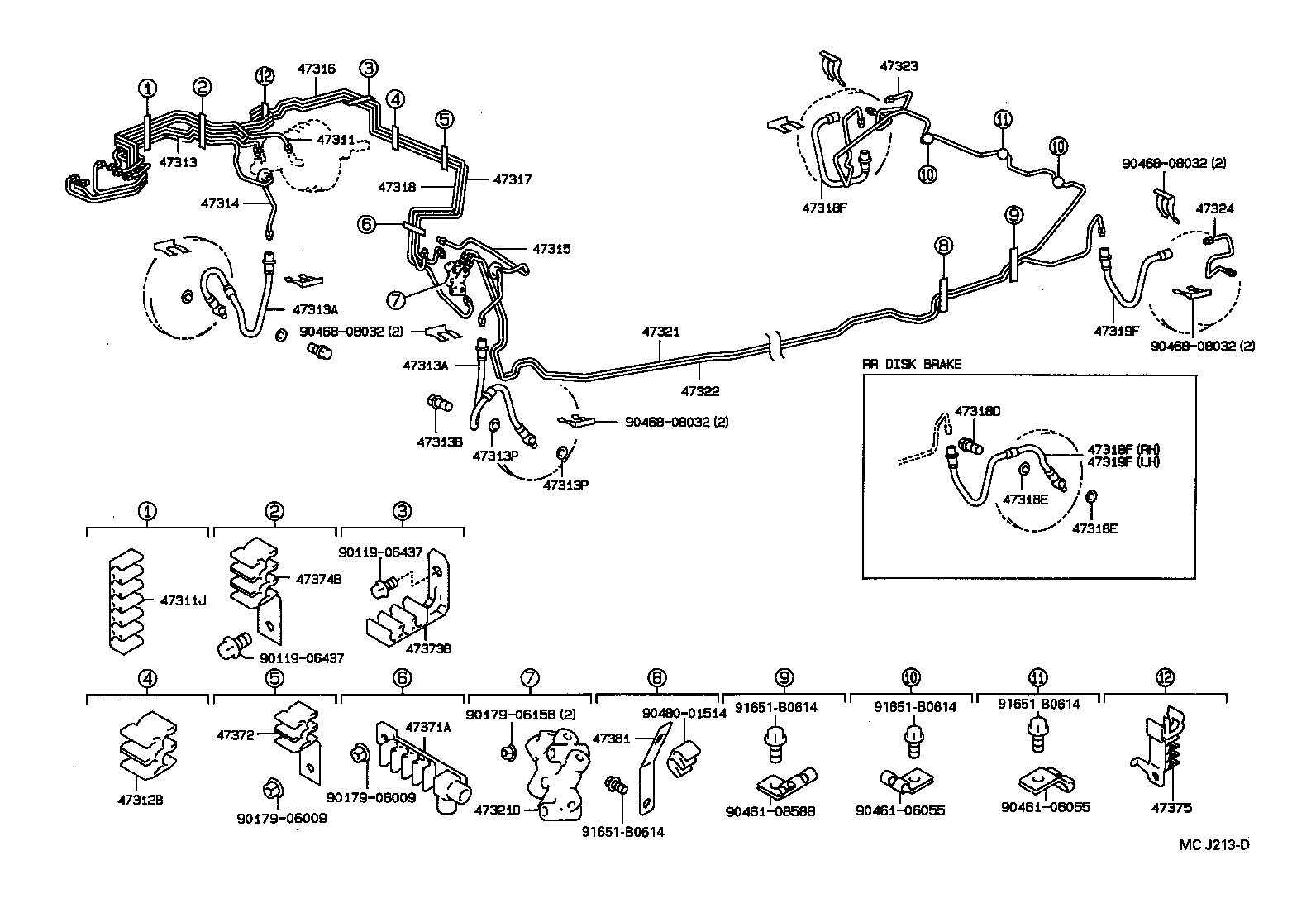

ILLUST NO. 1 OF 2(8909- )
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20721 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47311-20690 |
ST182,183 |
1 | ||
| 47311-20800 |
ST182,183 |
1 | ||
| 47311-20790 |
ST182,183 |
1 | ||
| 47311-20720 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01433 |
ST18#..EFI,TWC |
1 | ||
| 47312B - GROMMET, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90480-01556 |
ST18#..EFI,TWC |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20460 |
ST182,183 |
1 | ||
| 47313-20491 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47313-20490 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47313-20560 |
ST182,183 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47389-30010 |
ST18# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47389-30010 |
ST18# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20370 |
ST182,183 |
1 | ||
| 47314-20430 |
ST182,183 |
1 | ||
| 47314-20380 |
ST182,183 ｱﾘ(*66) |
1 | ||
| 47314-20381 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20500 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47315-20470 |
ST18# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20460 |
ST182,183 |
1 | ||
| 47316-20461 |
ST18#..EFI,TWC |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20101 |
ST18#..EFI,TWC |
1 | ||
| 47317-20100 |
ST182,183 |
1 | ||
| 47317-20102 |
ST18# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20232 |
ST18# |
1 | ||
| 47318-20231 |
ST18#..EFI,TWC |
1 | ||
| 47318-20230 |
ST182,183 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST182,183 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST182,183 |
4 | ||
| 47389-30010 |
ST182,183 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST182,183 |
4 | ||
| 47389-30010 |
ST182,183 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02598 |
ST182,183 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20250 |
ST18# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ST18#..EFI,TWC |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20370 |
ST18# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20030 |
ST18# |
1 | ||
| 47371-20150 |
ST18#..EFI,TWC ｱﾘ(*66) |
1 | ||
| 47371-20150 |
ST18# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20210 |
ST18# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20160 |
ST18#..EFI,TWC |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20200 |
ST18# ｱﾘ(*66) |
1 | ||
| 47371-20240 |
ST18# |
1 | ||
| 47371-20200 |
ST18#..EFI,TWC |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20230 |
ST18# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-20090 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06437 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90461-06055 | ||||
| 90461-08588 | ||||
| 90468-08032 | ||||
| 90480-01514 | ||||
| 91651-B0614 | ||||
