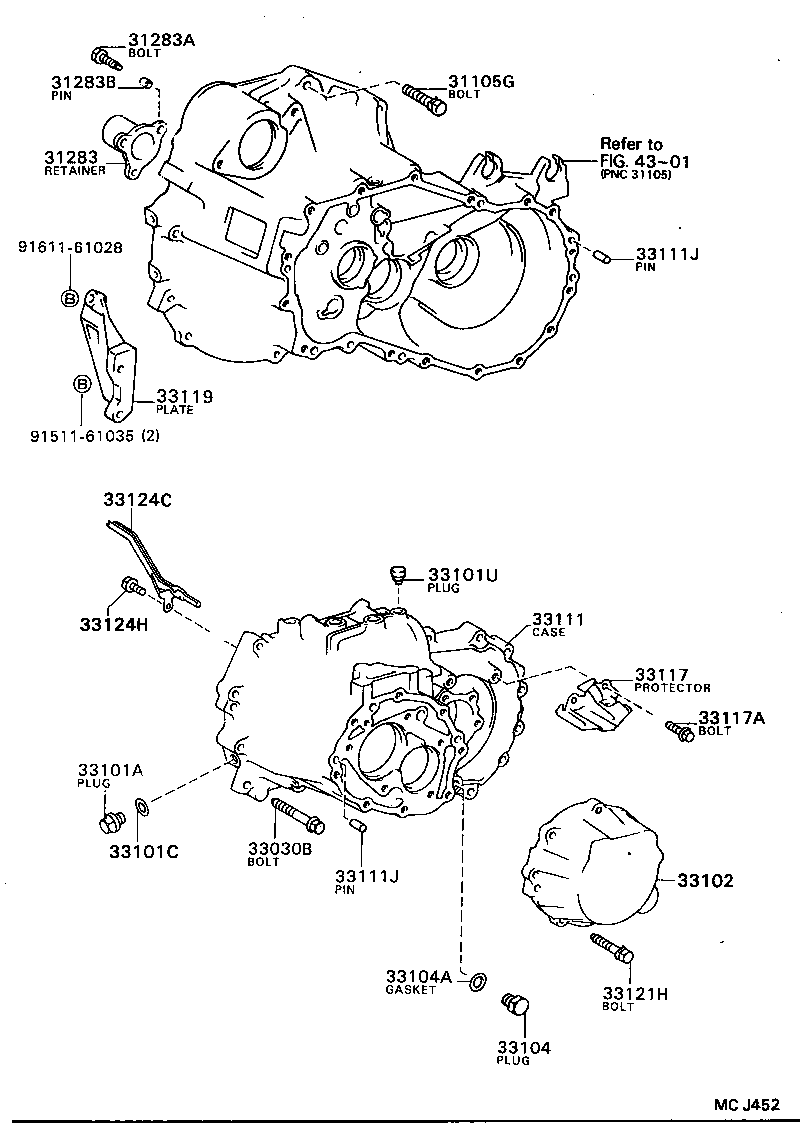

Toyota Carina ed ST183 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12168	ST18#..MTM *12−1.25PX55−30	09/1989 - 09/1993	3
90105-08040	ST18#..MTM *8−1.25PX18−15	09/1989 - 09/1993	1
90105-10077	ST18#..MTM *10−1.25PX43−26	09/1989 - 09/1993	1
91651-41022	ST18#..MTM *10−1.25PX22−22	09/1989 - 09/1993	1
31283 - RETAINER, CLUTCH RELEASE BEARING HUB
31283-32010	ST18#..MTM	09/1989 - 09/1993	1
31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90105-06023	ST18#..MTM	09/1989 - 09/1993	3
31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90253-08002	ST18#..MTM	09/1989 - 09/1993	2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08042	ST18#..MTM *8−1.25PX45−27.5	09/1989 - 09/1993	17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033	ST18#..MTM	03/1990 - 06/1993	1
90341-18002	ST18#..MTM	09/1989 - 03/1990	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	ST18#..MTM	09/1989 - 09/1993	1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03080	ST18#..MTM	09/1989 - 06/1991	1
90930-03133	ST18#..MTM	06/1991 - 09/1993	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-32012	ST18#..MTM	04/1990 - 05/1992	1
33102-32011	ST18#..MTM	09/1989 - 04/1990	1
33102-33020	ST18#..MTM	05/1992 - 09/1993	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	ST18#..MTM	09/1989 - 09/1993	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	ST18#..MTM	09/1989 - 09/1993	1
33111 - CASE, MANUAL TRANSMISSION
33111-20141	ST18#..MTM	10/1989 - 02/1991	1
33111-33030	ST18#..MTM	05/1992 - 09/1993	1
33111-20140	ST18#..MTM	09/1989 - 10/1989	1
33111-33020	ST18#..MTM	02/1991 - 05/1992	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ST18#..MTM 長さ=23,外径=8	09/1989 - 09/1993	6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ST18#..MTM 長さ=23,外径=8	09/1989 - 09/1993	6
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-32011	ST18#..MTM	09/1989 - 09/1993	1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040	ST18#..MTM	09/1989 - 02/1993	2
33119 - PLATE, STIFFENER, LH(MTM)
33119-32020	ST183..MTM..EFI;ST180,181,182..MTM	02/1993 - 09/1993	1
33119-32020	ST18#..MTM..(CI,EFI)	09/1989 - 02/1993	1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08273	ST18#..MTM	11/1990 - 09/1993	8
90105-08089	ST18#..MTM	09/1989 - 11/1990	8
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-32012	ST18#..MTM	04/1990 - 05/1992	1
33124-33010	ST18#..MTM	05/1992 - 09/1993	1
33124-32011	ST18#..MTM	09/1989 - 04/1990	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91651-60618	ST18#..MTM	09/1989 - 09/1993	1
Common parts
91511-61035
91611-61028
Linked diagrams
4301

ST183-CTMSK (1989)

(8909- )MTM
