ST182-CTPVF (1989)
Toyota Carina Ed

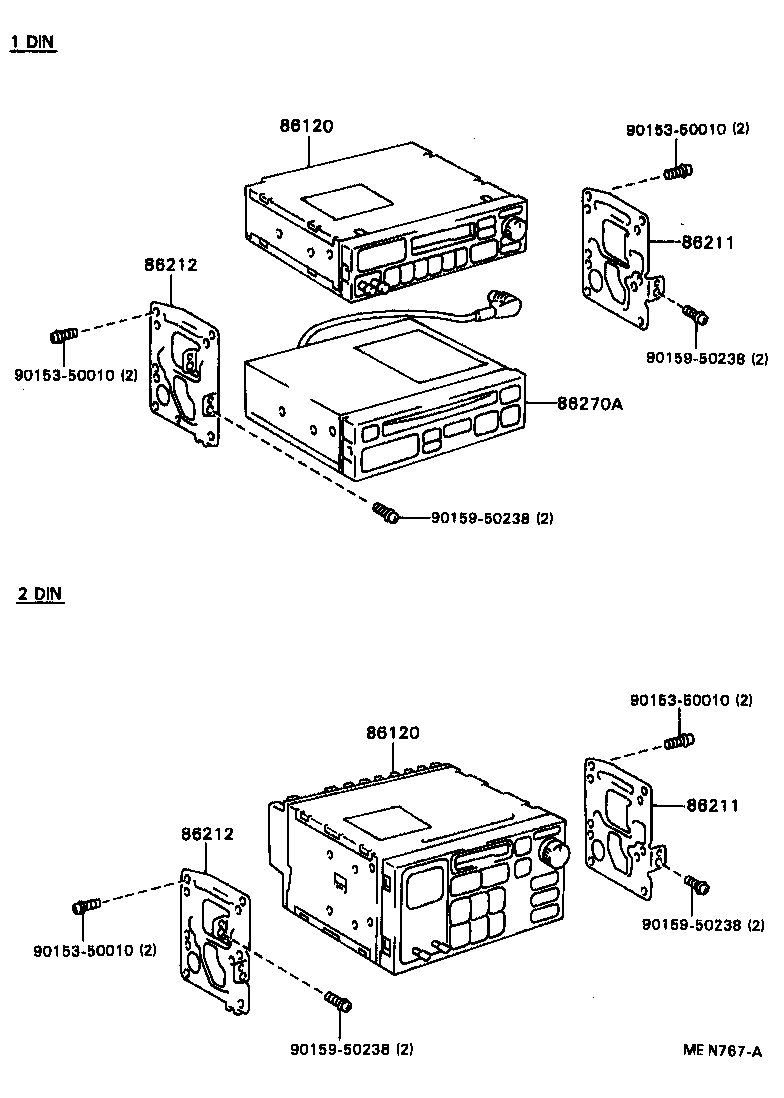

ILLUST NO. 1 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B030 |
ST180,181..X;ST182,183..TWC AM/FM MPX ETR ｶｾﾂﾄ,2-DIN |
1 | ||
| 86120-2B050 |
ST18# MATSUSHITA,AM/FM MPX ETR ｶｾﾂﾄ *AF,1-DIN |
1 | ||
| 86120-2B020 |
ST18#..F,S,SLIM MATSUSHITA,ID=5416,AM/FM MPX ETR,1-DIN |
1 | ||
| 86120-2B330 |
ST18#..GLIM,SLIM,X MATSUSHITA,AM/FM MPX ETR ｶｾﾂﾄ CD,2-DIN |
1 | ||
| 86120-2B040 |
ST180,181;ST182,183..GLIM,SLIM AM/FM MPX ETR ｶｾﾂﾄ *AF,2-DIN |
1 | ||
| 86120-20890 |
ST180,181..X;ST182,183..TWC MATSUSHITA,ID=55400,AM/FM MPX ETR ｶｾﾂﾄ,1-DIN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B030 |
ST180,181..X;ST182,183..TWC AM/FM MPX ETR ｶｾﾂﾄ,2-DIN |
1 | ||
| 86120-2B050 |
ST18# MATSUSHITA,AM/FM MPX ETR ｶｾﾂﾄ *AF,1-DIN |
1 | ||
| 86120-2B020 |
ST18#..F,S,SLIM MATSUSHITA,ID=5416,AM/FM MPX ETR,1-DIN |
1 | ||
| 86120-2B330 |
ST18#..GLIM,SLIM,X MATSUSHITA,AM/FM MPX ETR ｶｾﾂﾄ CD,2-DIN |
1 | ||
| 86120-2B040 |
ST180,181;ST182,183..GLIM,SLIM AM/FM MPX ETR ｶｾﾂﾄ *AF,2-DIN |
1 | ||
| 86120-20890 |
ST180,181..X;ST182,183..TWC MATSUSHITA,ID=55400,AM/FM MPX ETR ｶｾﾂﾄ,1-DIN |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20300 |
ST18# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20300 |
ST18# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20290 |
ST18# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20290 |
ST18# |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-20050 |
ST18# |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50238 | ||||

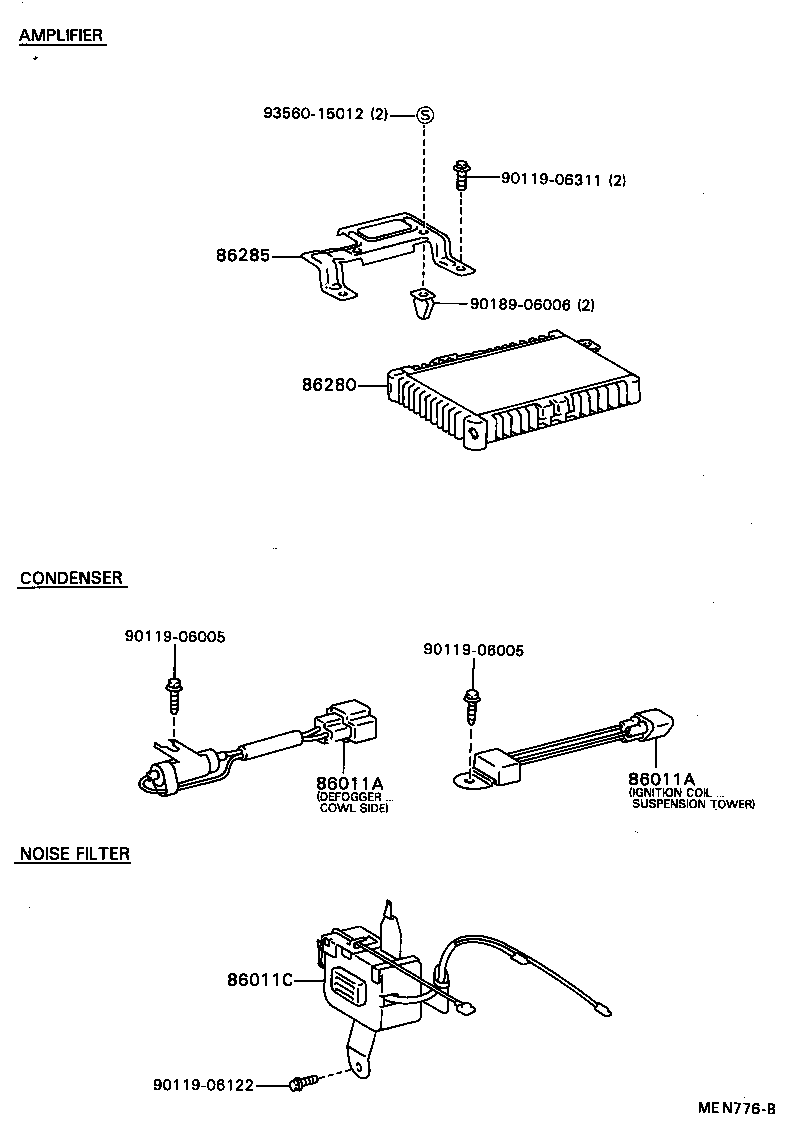

ILLUST NO. 2 OF 2(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04065 |
ST18# IGNITTION COIL |
1 | ||
| 90980-04065 |
ST18# IGNITION COIL |
1 | ||
| 90980-04081 |
ST18# DEFOGGER |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04065 |
ST18# IGNITTION COIL |
1 | ||
| 90980-04065 |
ST18# IGNITION COIL |
1 | ||
| 90980-04081 |
ST18# DEFOGGER |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05149 |
ST18# |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-20300 |
ST18#..GLIM,SLIM,X |
1 | ||
| 86280-20230 |
ST18# |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20070 |
ST18#..GLIM,SLIM,X |
1 | ||
| 86285-20060 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90119-06311 | ||||
| 90189-06006 | ||||
| 93560-15012 | ||||
