ST182-CTPVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9108)

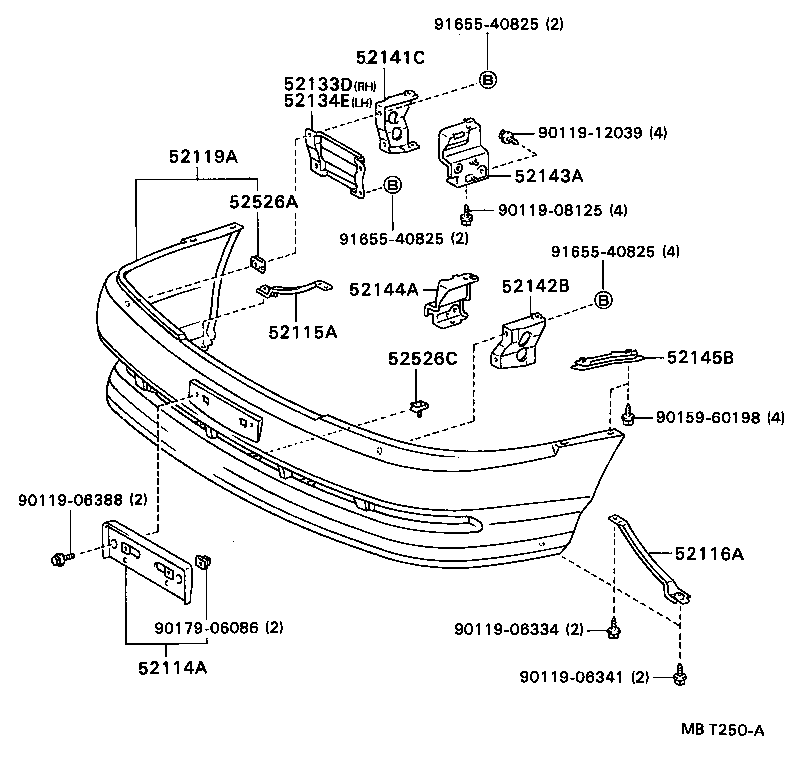

Click highlighted areas on diagram

diagram 52114A 52115A 52116A 52119A 52133D 52134E 52141C 52142B 52143A 52144A 52145B 52526A 52526C 9011906334 9011906341 9011906388 9011908125 9011912039 9015960198 9017906086 9165540825 9165540825 9165540825
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-20100

ST18#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20270

ST18#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-20270

ST18#

 1
52119A - COVER, FRONT BUMPER
52101-2004017

ST18#

BLACKISH KHAKI M,6K8

 1
52101-2004003

ST18#

BLUISH GRAY M,182

 1
52101-2004008

ST18#

SUPER WHITE 2,040

 1
52101-20060G0

ST18#

BLACKISH KHAKI M.,6K8

 1
52101-2004002

ST18#

RED MICA,3H4

 1
52101-20060G2

ST18#

BLACKISH KHAKI M.,6K8

 1
52101-20060A0

ST18#

SUPER WHITE 2,040

 1
52101-20060G1

ST18#

DARK MOSS GREEN M.M,6M4

 1
52101-20060D0

ST18#

WINE RED M,3J8

 1
52101-2004004

ST18#

DARK BLUE M M,8G5

 1
52101-2004007

ST18#

LIGHT KHAKI G M M,6K7

 1
52101-20060B0

ST18#

BLUISH GRAY M.,182

 1
52101-20060H0

ST18#

MEDIUM TURQUOISE M,749

 1
52133D - REINFORCEMENT, FRONT BUMPER, NO.3
52133-20090

ST18#

 1
52134E - REINFORCEMENT, FRONT BUMPER, NO.4
52134-20070

ST18#

 1
52141C - ARM, FRONT BUMPER, RH
52141-20190

ST18#

 1
52142B - ARM, FRONT BUMPER, LH
52142-20150

ST18#

 1
52143A - ARM, FRONT BUMPER, INNER RH
52143-20220

ST18#

 1
52144A - ARM, FRONT BUMPER, INNER LH
52144-20180

ST18#

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52146-20080

ST18#

左側

 1
52145-20110

ST18#

右側

 1
52145-20090

ST18#

右側

 1
52146-20100

ST18#

左側

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

ST18#

 8
52526C - RETAINER, FRONT BUMPER, LOWER
52526-20080

ST18#

 5
52526-20080

ST18#

 6
Common parts
90119-06334
90119-06341
90119-06388
90119-08125
90119-12039
90159-60198
90179-06086
91655-40825

(9108- )

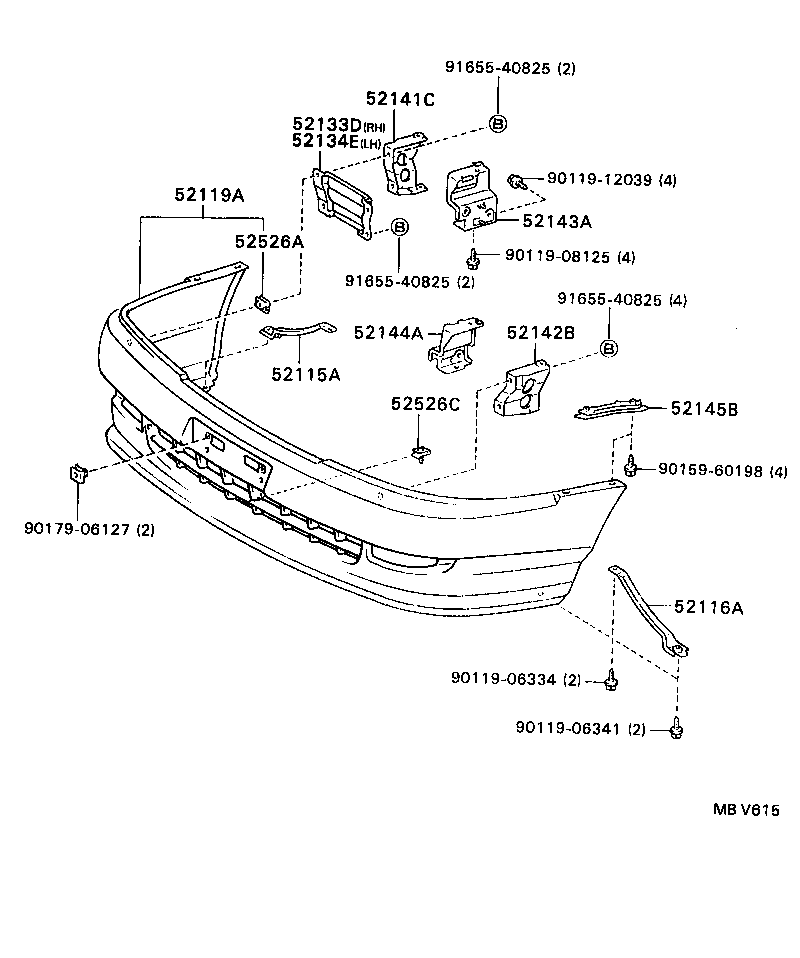

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52133D 52134E 52141C 52142B 52143A 52144A 52145B 52526A 52526C 9011906334 9011906341 9011908125 9011912039 9015960198 9017906127 9165540825 9165540825 9165540825
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20270

ST18#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-20270

ST18#

 1
52119A - COVER, FRONT BUMPER
52101-2004017

ST18#

BLACKISH KHAKI M,6K8

 1
52101-2004003

ST18#

BLUISH GRAY M,182

 1
52101-2004008

ST18#

SUPER WHITE 2,040

 1
52101-20060G0

ST18#

BLACKISH KHAKI M.,6K8

 1
52101-2004002

ST18#

RED MICA,3H4

 1
52101-20060G2

ST18#

BLACKISH KHAKI M.,6K8

 1
52101-20060A0

ST18#

SUPER WHITE 2,040

 1
52101-20060G1

ST18#

DARK MOSS GREEN M.M,6M4

 1
52101-20060D0

ST18#

WINE RED M,3J8

 1
52101-2004004

ST18#

DARK BLUE M M,8G5

 1
52101-2004007

ST18#

LIGHT KHAKI G M M,6K7

 1
52101-20060B0

ST18#

BLUISH GRAY M.,182

 1
52101-20060H0

ST18#

MEDIUM TURQUOISE M,749

 1
52133D - REINFORCEMENT, FRONT BUMPER, NO.3
52133-20090

ST18#

 1
52134E - REINFORCEMENT, FRONT BUMPER, NO.4
52134-20070

ST18#

 1
52141C - ARM, FRONT BUMPER, RH
52141-20190

ST18#

 1
52142B - ARM, FRONT BUMPER, LH
52142-20150

ST18#

 1
52143A - ARM, FRONT BUMPER, INNER RH
52143-20220

ST18#

 1
52144A - ARM, FRONT BUMPER, INNER LH
52144-20180

ST18#

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52146-20080

ST18#

左側

 1
52145-20110

ST18#

右側

 1
52145-20090

ST18#

右側

 1
52146-20100

ST18#

左側

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12040

ST18#

 8
52526C - RETAINER, FRONT BUMPER, LOWER
52526-20080

ST18#

 5
52526-20080

ST18#

 6
Common parts
90119-06334
90119-06341
90119-08125
90119-12039
90159-60198
90179-06127
91655-40825
