ST182-CTPVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

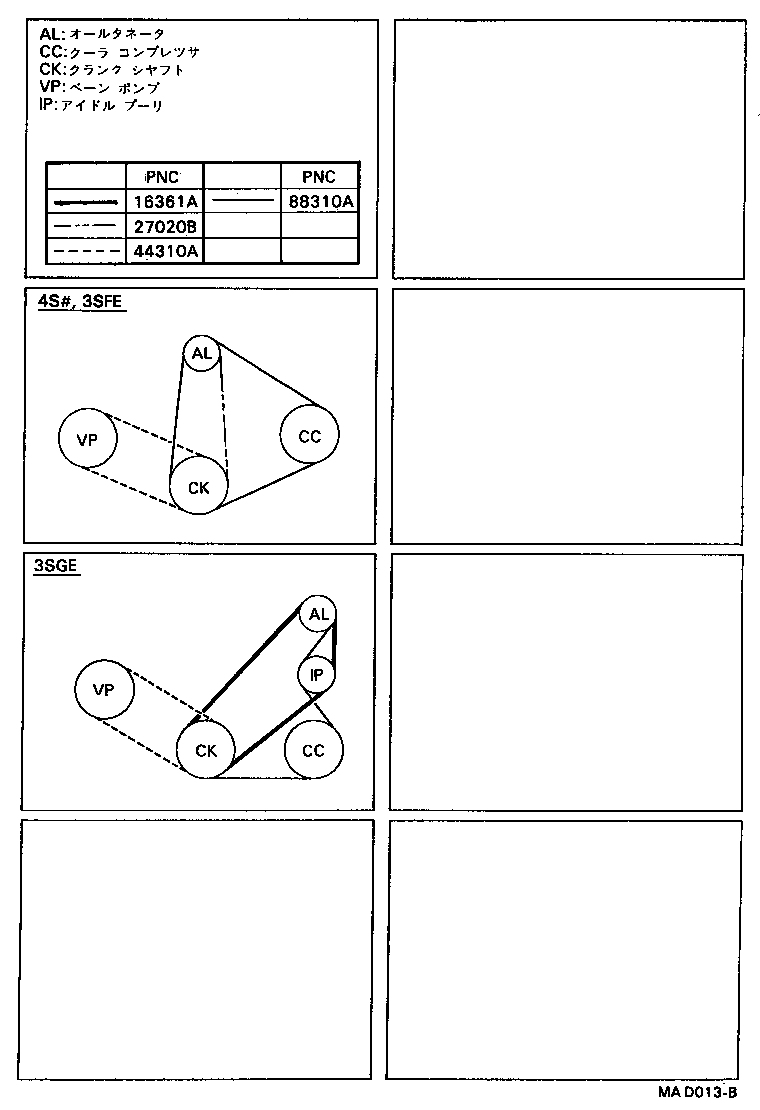

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02293

3SGE..ST182,183

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02205

ST18#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02116

ST182,183..TWC

 1
90916-02116

ST182,183..TWC

 1
99365-21100

ST182,183..TWC

長さ=1100

 1
99365-21100

ST182,183..TWC

長さ=1100,MITSUBOSHI

 1
99365-81100

ST182,183..TWC

長さ=1100,BANDO

 1
