ST182-CTPGK (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

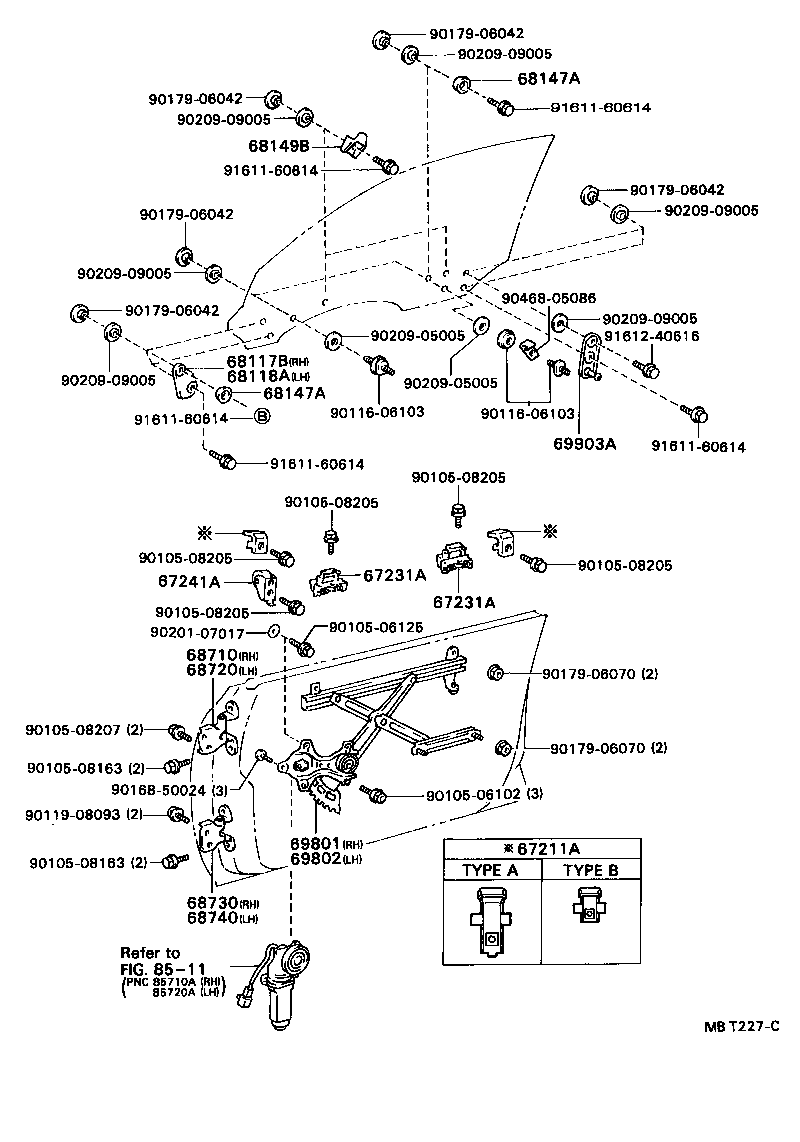

Click highlighted areas on diagram

diagram 67211A 67231A 67231A 67241A 68117B 68118A 68147A 68147A 68149B 68710 68720 68730 68740 69801 69802 69903A 8511 9010506102 9010506125 9010508163 9010508163 9010508205 9010508205 9010508205 9010508205 9010508205 9010508207 9011606103 9011606103 9011908093 9016850024 9017906042 9017906042 9017906042 9017906042 9017906042 9017906070 9017906070 9020107017 9020905005 9020905005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9046805086 9161160614 9161160614 9161160614 9161160614 9161160614 9161240616
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-20030

ST18#

TYPE A,STUMPED NO.2

 2
67211-20060

ST18#

TYPE A,STAMPED NO.3

 2
67211-20070

ST18#

TYPE B, STAMPED NO.1

 2
67211-20080

ST18#

TYPE B, STAMPED NO.3

 2
67211-20050

ST18#

TYPE A, STAMPED NO.1

 2
67211-20050

ST18#

TYPE A,STAMPED NO.1

 2
67211-20110

ST18#

ﾀｲﾌﾟ B

 2
67211-20040

ST18#

TYPE B,STAMPED NO.2

 2
67211-20060

ST18#

TYPE A, STAMPED NO.3

 2
67211-20120

ST18#

TYPE A,STAMPED NO.1

 2
67211-20110

ST18#

TYPE B,STAMPED NO.1

 2
67211-20030

ST18#

TYPE A, STAMPED NO.2

 2
67211-20120

ST18#

ﾀｲﾌﾟ A

 2
67211-20040

ST18#

TYPE B, STAMPED NO.2

 2
67231A - SUPPORT, FRONT DOOR TRIM
67231-20080

ST18#

STAMPED NO.1 R

 2
67232-20030

ST18#

STAMPED NO.1 L

 2
67231-20091

ST18#

STAMPED 2R

 2
67231-20100

ST18#

STAMPED NO.3 R

 2
67232-20051

ST18#

STAMPED 3L

 2
67231-20101

ST18#

STAMPED 3R

 2
67232-20031

ST18#

STAMPED 1L

 2
67231-20090

ST18#

STAMPED NO.2 R

 2
67231-20081

ST18#

STAMPED 1R

 2
67232-20050

ST18#

STAMPED NO.3 L

 2
67232-20040

ST18#

STAMPED NO.2 L

 2
67232-20041

ST18#

STAMPED 2L

 2
67231-20101

ST18#

STAMPED NO.3 R

 2
67232-20051

ST18#

STAMPED NO.3 L

 2
67231-20091

ST18#

STAMPED NO.2 R

 2
67232-20041

ST18#

STAMPED NO.2 L

 2
67231-20081

ST18#

STAMPED NO.1 R

 2
67232-20031

ST18#

STAMPED NO.1 L

 2
67231A - SUPPORT, FRONT DOOR TRIM
67231-20080

ST18#

STAMPED NO.1 R

 2
67232-20030

ST18#

STAMPED NO.1 L

 2
67231-20091

ST18#

STAMPED 2R

 2
67231-20100

ST18#

STAMPED NO.3 R

 2
67232-20051

ST18#

STAMPED 3L

 2
67231-20101

ST18#

STAMPED 3R

 2
67232-20031

ST18#

STAMPED 1L

 2
67231-20090

ST18#

STAMPED NO.2 R

 2
67231-20081

ST18#

STAMPED 1R

 2
67232-20050

ST18#

STAMPED NO.3 L

 2
67232-20040

ST18#

STAMPED NO.2 L

 2
67232-20041

ST18#

STAMPED 2L

 2
67231-20101

ST18#

STAMPED NO.3 R

 2
67232-20051

ST18#

STAMPED NO.3 L

 2
67231-20091

ST18#

STAMPED NO.2 R

 2
67232-20041

ST18#

STAMPED NO.2 L

 2
67231-20081

ST18#

STAMPED NO.1 R

 2
67232-20031

ST18#

STAMPED NO.1 L

 2
67241A - STABILIZER, DOOR GLASS, INNER
67241-20040

ST18#

 2
68117B - PLATE, FRONT DOOR GLASS, RH
68117-20040

ST18#

 1
68118A - PLATE, FRONT DOOR GLASS, LH
68118-20040

ST18#

 1
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-14020

ST18#

 4
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-14020

ST18#

 4
68149B - STABILIZER, FRONT DOOR GLASS MALE
68149-20010

ST18#

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-22060

ST18#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-22050

ST18#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20110

ST18#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20110

ST18#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20190

ST18#

A51-A54

 1
69801-20200

ST18#

A41, A42

 1
69801-20200

ST18#

A41,A42

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20210

ST18#

A51-A54

 1
69802-20220

ST18#

A41,A42

 1
69802-20220

ST18#

A41, A42

 1
69903A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH
69903-20110

ST18#

 2
Common parts
90105-06102
90105-06125
90105-08163
90105-08205
90105-08207
90116-06103
90119-08093
90168-50024
90179-06042
90179-06070
90201-07017
90209-05005
90209-09005
90468-05086
91611-60614
91612-40616
Linked diagrams
8511
