ST182-CTMVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

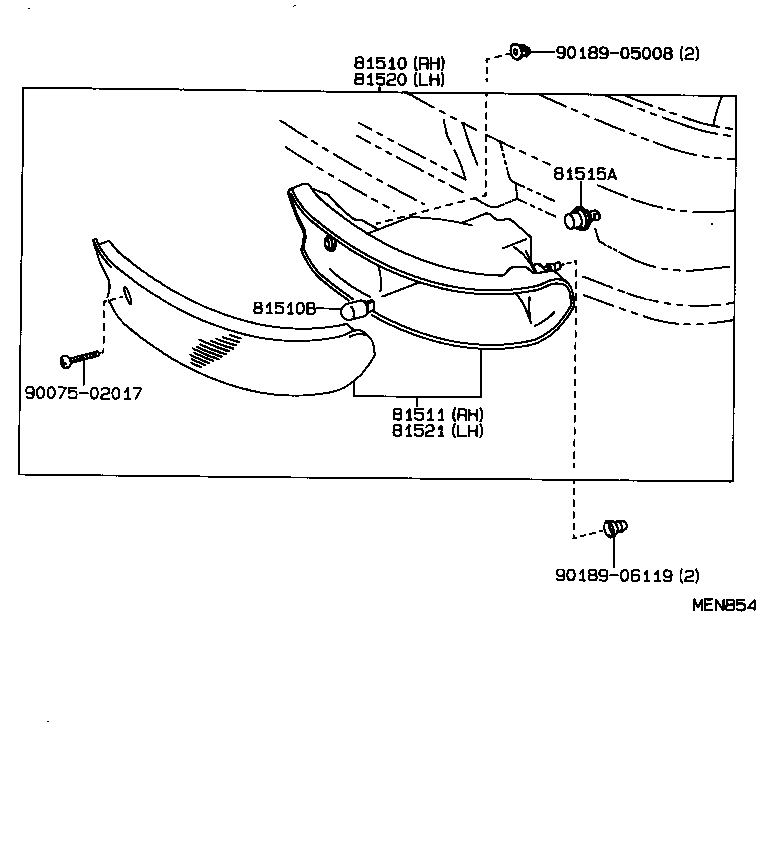

(8909-9108)

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515A 81520 81521 9007502017 9018905008 9018906119
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20630

ST18#

 1
81510-20580

ST18#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

ST18#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20580

ST18#

 1
81511-20630

ST18#

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99032

ST18#

 2
90075-99022

ST18#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20620

ST18#

 1
81520-20580

ST18#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20620

ST18#

 1
81521-20580

ST18#

 1
Common parts
90075-02017
90189-05008
90189-06119

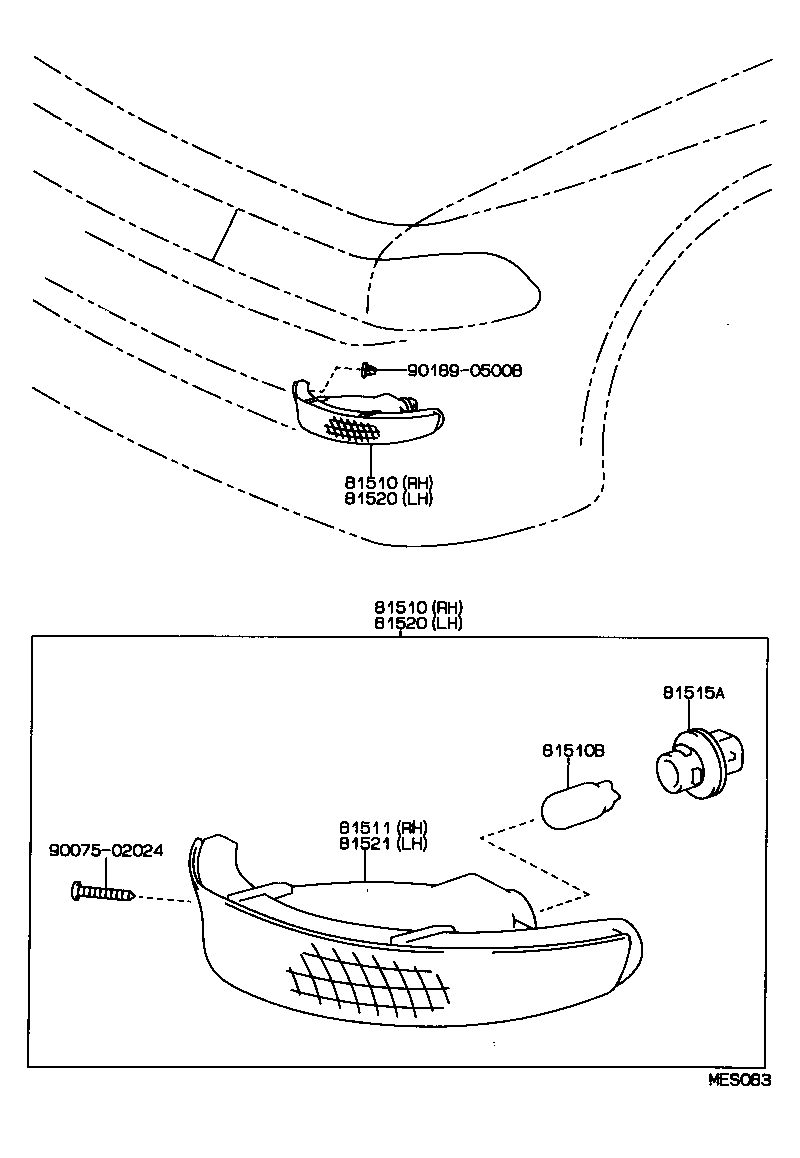

(9108- )

Click highlighted areas on diagram

diagram 81510 81510 81510B 81511 81515A 81520 81520 81521 9007502024 9018905008
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20630

ST18#

 1
81510-20580

ST18#

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20630

ST18#

 1
81510-20580

ST18#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

ST18#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20580

ST18#

 1
81511-20630

ST18#

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99032

ST18#

 2
90075-99022

ST18#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20620

ST18#

 1
81520-20580

ST18#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20620

ST18#

 1
81520-20580

ST18#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20620

ST18#

 1
81521-20580

ST18#

 1
Common parts
90075-02024
90189-05008
