ST182-CTMVF (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

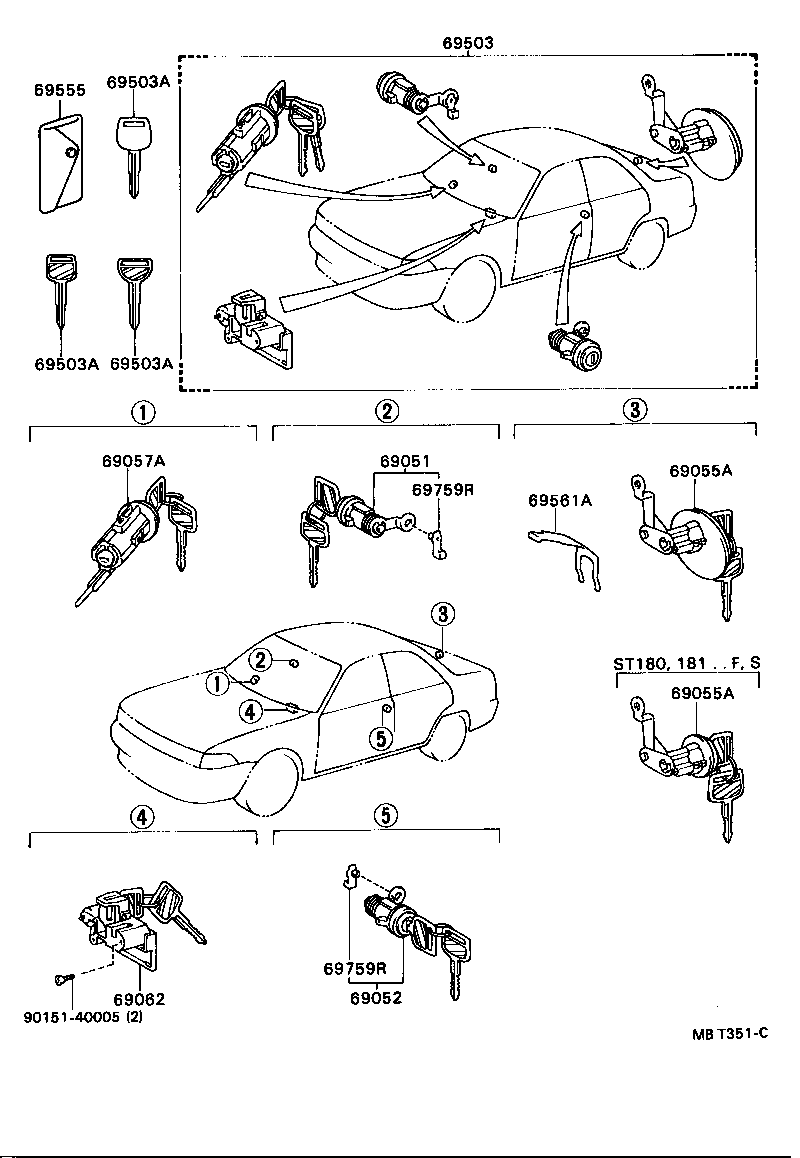

Click highlighted areas on diagram

diagram 69051 69052 69055A 69055A 69057A 69062 69503 69503A 69503A 69503A 69555 69561A 69759R 69759R 9015140005
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-20290

ST18#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-20290

ST18#

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-20470

ST18#..GLIM,SLIM,X

 1
69055-20510

ST18#

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-20470

ST18#..GLIM,SLIM,X

 1
69055-20510

ST18#

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-20280

ST18#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-20190

ST18#

 1
69503 - CYLINDER SET, LOCK
69005-2B080

ST18#..GLIM,SLIM,X

 1
69005-2B140

ST18#

 1
69503A - KEY, BLANK
90999-00163

ST18#

ﾏｽﾀｰｷｰ

 1
90999-00165

ST18#

ｻﾌﾞｷｰ

 1
90999-00164

ST18#

ﾏｽﾀｰｷｰ,*68付き

 1
69503A - KEY, BLANK
90999-00163

ST18#

ﾏｽﾀｰｷｰ

 1
90999-00165

ST18#

ｻﾌﾞｷｰ

 1
90999-00164

ST18#

ﾏｽﾀｰｷｰ,*68付き

 1
69503A - KEY, BLANK
90999-00163

ST18#

ﾏｽﾀｰｷｰ

 1
90999-00165

ST18#

ｻﾌﾞｷｰ

 1
90999-00164

ST18#

ﾏｽﾀｰｷｰ,*68付き

 1
69555 - COVER, KEY
69555-20030

ST18#

 1
69555-17020

ST18#

 1
69555-95J00

ST18#

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69561-20150

ST18#

 1
69561-20130

ST18#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30050

ST18#

YELLOWISH GREEN

 1
69759-30040

ST18#

BEIGE

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30050

ST18#

YELLOWISH GREEN

 1
69759-30040

ST18#

BEIGE

 1
Common parts
90151-40005
