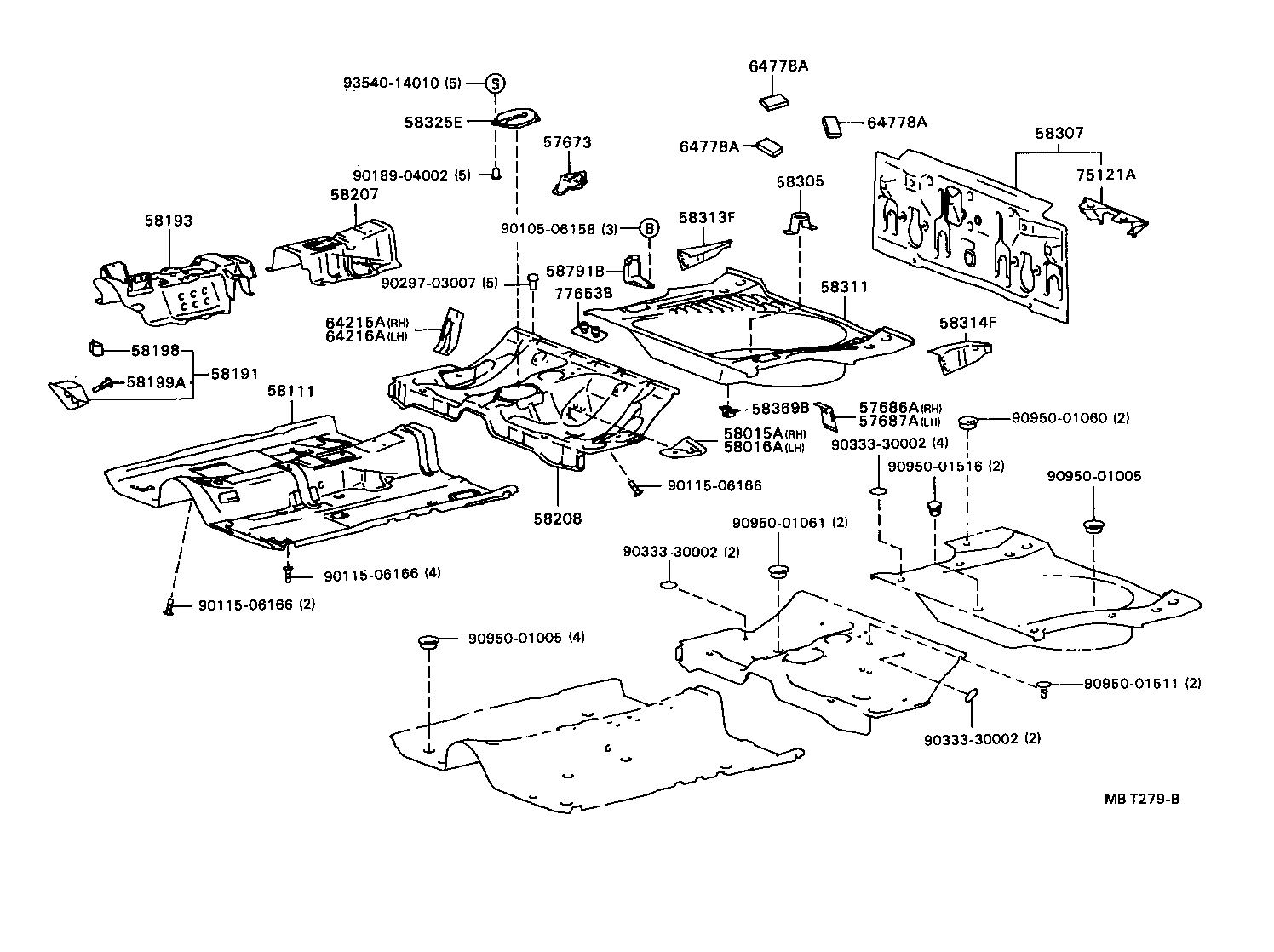

Toyota Carina ed ST182 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57673-20080	ST18#..GLIM,S,SLIM,X	09/1989 - 09/1993	1
57686A - BRACKET, FUEL TANK MOUNTING, REAR RH
57686-20040	ST180,182	09/1989 - 09/1993	1
57687A - BRACKET, FUEL TANK MOUNTING, REAR LH
57686-20040	ST180,182	09/1989 - 09/1993	1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-20070	ST18#	09/1989 - 09/1993	1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-20060	ST18#	09/1989 - 09/1993	1
58111 - PAN, FRONT FLOOR
58111-20150	ST18#	09/1989 - 09/1993	1
58191 - FOOTREST, FRONT FLOOR
58191-20060	ST18#	09/1989 - 09/1993	1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20110	ST18#	09/1989 - 09/1993	1
58198 - CLIP, FOOTREST
58198-20100	ST18#	09/1989 - 09/1993	1
58199A - CLIP, FOOTREST, NO.2
58199-20020	ST18#	09/1989 - 09/1993	1
58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58207-20100	ST18#	09/1989 - 09/1993	1
58208 - PAN, CENTER FLOOR
58211-20310	ST18#	09/1989 - 09/1993	1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011	ST18#	09/1989 - 09/1993	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20810	ST18#	09/1989 - 08/1991	1
58307-2B030	ST18#	08/1991 - 09/1993	1
58311 - PAN, REAR FLOOR
58311-20290	ST180,182	09/1989 - 09/1993	1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-20902	ST18#	09/1989 - 09/1993	1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-20240	ST18#	09/1989 - 09/1993	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-20050	ST18#	09/1989 - 09/1993	1
58369B - BRACKET, FUEL TUBE, NO.3
58369-20010	ST18#	09/1989 - 09/1993	5
58791B - CARRIER, JACK
58791-20070	ST18#	10/1989 - 09/1993	1
58791-20080	ST18#	09/1989 - 10/1989	1
64215A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64215-20040	ST18#	09/1989 - 09/1993	1
64216A - EXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64216-20050	ST18#	09/1989 - 09/1993	1
64778A - PROTECTOR, SPARE WHEEL
64778-20020	ST18#..F,S,X	08/1991 - 09/1993	3
64778-20070	ST182,183..GLIM,SLIM	08/1991 - 09/1993	3
64778-20040	ST18# 厚さ=10	09/1989 - 09/1993	3
64778-20020	ST18# T=12	09/1989 - 09/1993	3
64778A - PROTECTOR, SPARE WHEEL
64778-20020	ST18#..F,S,X	08/1991 - 09/1993	3
64778-20070	ST182,183..GLIM,SLIM	08/1991 - 09/1993	3
64778-20040	ST18# 厚さ=10	09/1989 - 09/1993	3
64778-20020	ST18# T=12	09/1989 - 09/1993	3
64778A - PROTECTOR, SPARE WHEEL
64778-20020	ST18#..F,S,X	08/1991 - 09/1993	3
64778-20070	ST182,183..GLIM,SLIM	08/1991 - 09/1993	3
64778-20040	ST18# 厚さ=10	09/1989 - 09/1993	3
64778-20020	ST18# T=12	09/1989 - 09/1993	3
75121A - BRACKET, REAR LICENSE PLATE
75121-20140	ST18#	09/1989 - 09/1993	1
77653B - CUSHION, FUEL TANK, NO.3
77653-20070	ST18#	09/1989 - 11/1989	2
77653-20071	ST18#	11/1989 - 09/1993	2
Common parts
90105-06158
90115-06166
90189-04002
90297-03007
90333-30002
90950-01005
90950-01060
90950-01061
90950-01511
90950-01516
93540-14010

ST182-CTMVF (1989)

(8909- )ST180,182
