ST182-CTMSK (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ST182,183..EFI ; (9008- )ST180,181

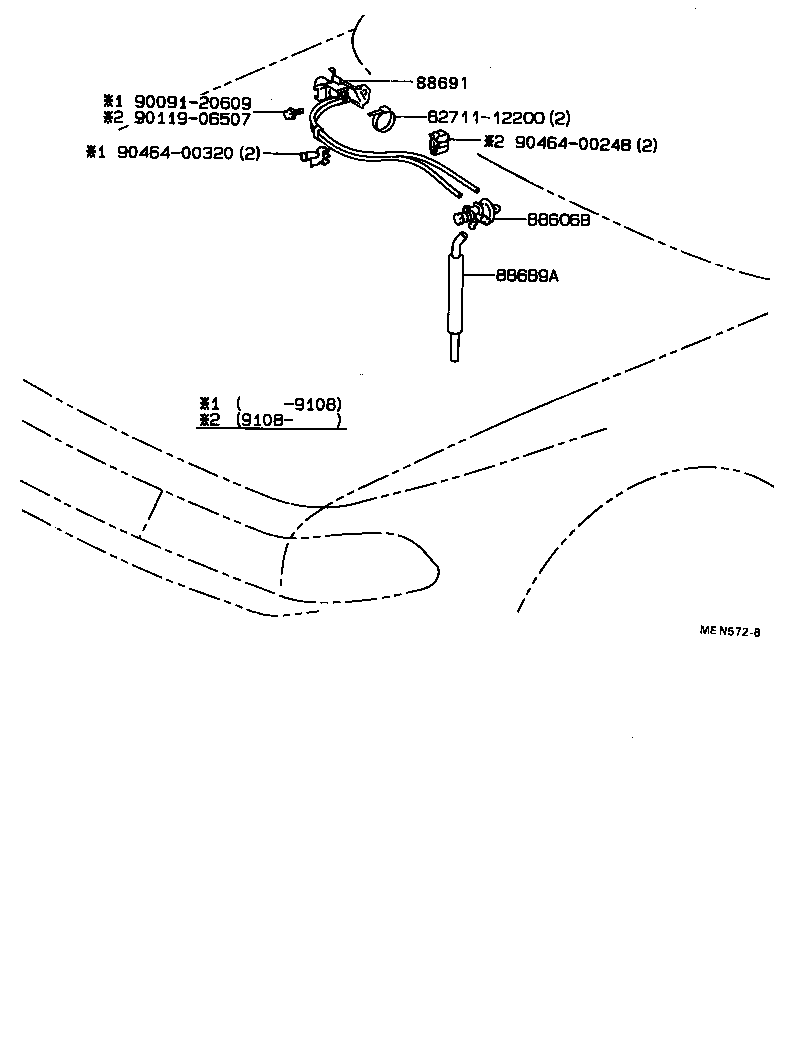

Click highlighted areas on diagram

diagram 8271112200 88606B 88689A 88691 9009120609 9011906507 9046400248 9046400320
Part # Description Qty Price
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-20250

ST182,183..EFI

 1
88606-20290

ST18#..EFI

 1
88606-20290

ST18#..EFI

 1
88606-20310

ST18#..EFI

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-20760

ST18#..EFI

 1
88689-20760

ST18#..SLIM,X

 1
88689-32050

ST182,183..EFI

 1
88689-20890

ST182,183..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-2B410

ST18#..EFI

 1
88690-2B410

ST18#..EFI

 1
17600-74060

ST182,183..EFI

 1
88690-2B340

ST182,183..EFI

 1
Common parts
82711-12200
90091-20609
90119-06507
90464-00248
90464-00320
