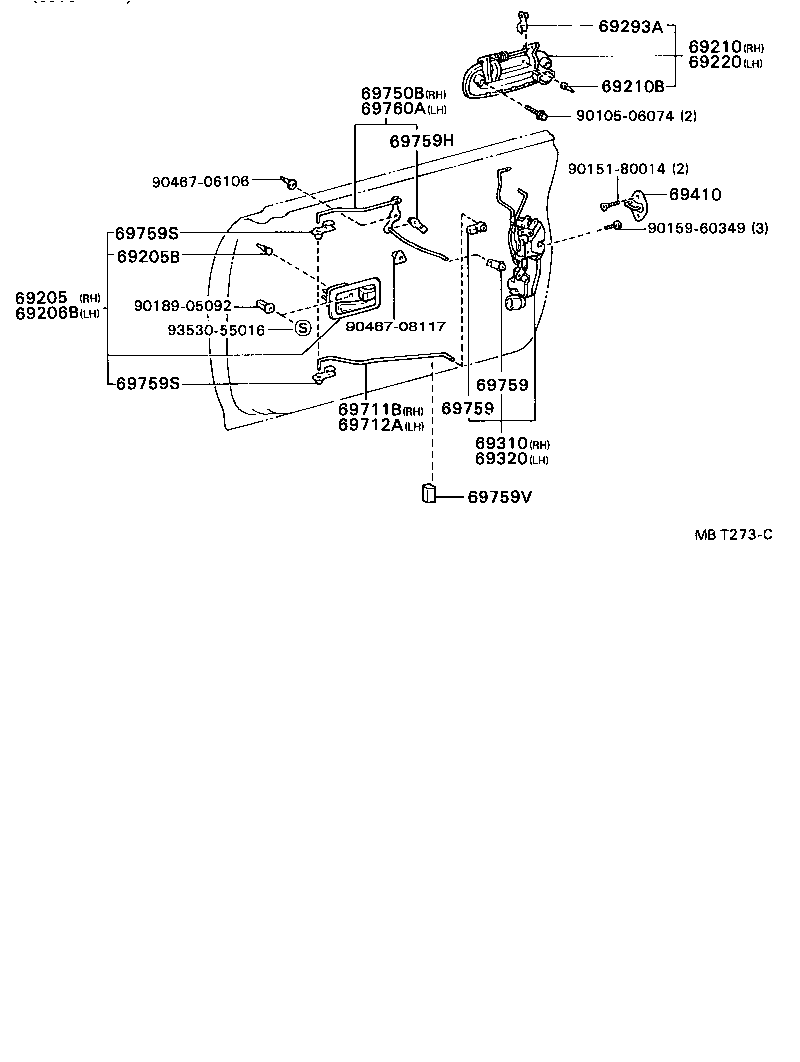

Toyota Carina ed ST182 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2010006	ST18# SABLE,TRIM4#	09/1989 - 03/1992	1
69205-2010003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 03/1992	1
69205-20101P0	ST18# SHADOW GRAY,TRIM1#	03/1992 - 09/1993	1
69205-20101E0	ST18# SABLE,TRIM4#	03/1992 - 09/1993	1
69205-2010007	ST18#..GLIM,SLIM,X KHAKI,TRIM6#	09/1989 - 03/1992	1
69205-20101G0	ST18#..GLIM,SLIM,X KHAKI,TRIM6#	03/1992 - 09/1993	1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014	ST18#	09/1989 - 09/1993	2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2010003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 03/1992	1
69206-2010006	ST18# SABLE,TRIM4#	09/1989 - 03/1992	1
69206-20101E0	ST18# SABLE,TRIM4#	03/1992 - 09/1993	1
69206-20101P0	ST18# SHADOW GRAY,TRIM1#	03/1992 - 09/1993	1
69206-20101G0	ST18#..GLIM,SLIM,X KHAKI,TRIM6#	03/1992 - 09/1993	1
69206-2010007	ST18#..GLIM,SLIM,X KHAKI,TRIM6#	09/1989 - 03/1992	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-2022007	ST18# LIGHT KHAKI G. M. M.,6K7	09/1989 - 08/1991	1
69210-2022008	ST18# SUPER WHITE 2,040	09/1989 - 09/1993	1
69210-20220G0	ST18# DARK MOSS GREEN M.M,6M4	08/1991 - 09/1993	1
69210-2022002	ST18# RED MICA,3H4	09/1989 - 08/1991	1
69210-2022004	ST18# DARK BLUE M. M.,8G5	09/1989 - 08/1991	1
69210-20220H1	ST180,182..X DARK TURQUOISE MC,742	08/1992 - 09/1993	1
69210-2022017	ST18# BLACKISH KHAKI M.,6K8	09/1989 - 08/1992	1
69210-20220H0	ST18# MEDIUM TURQUOISE M.,749	08/1991 - 08/1992	1
69210-20260G1	ST18# BLACKISH KHAKI M.,6K8	08/1992 - 09/1993	1
69210-2022003	ST18# BLUISH GRAY M.,182	09/1989 - 09/1993	1
69210-20220D0	ST18# WINE RED M,3J8	08/1991 - 09/1993	1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018	ST18# OD=8.5	08/1992 - 09/1993	4
90541-04014	ST18# OD=6.5	09/1989 - 09/1993	4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-2022007	ST18# LIGHT KHAKI G. M. M.,6K7	09/1989 - 08/1991	1
69220-2022004	ST18# DARK BLUE M. M.,8G5	09/1989 - 08/1991	1
69220-2022002	ST18# RED MICA,3H4	09/1989 - 08/1991	1
69220-2022017	ST18# BLACKISH KHAKI M.,6K8	09/1989 - 08/1992	1
69220-20220H0	ST18# MEDIUM TURQUOISE M.,749	08/1991 - 08/1992	1
69220-2022003	ST18# BLUISH GRAY M.,182	09/1989 - 09/1993	1
69220-20220G0	ST18# DARK MOSS GREEN M.M,6M4	08/1991 - 09/1993	1
69220-2022008	ST18# SUPER WHITE 2,040	09/1989 - 09/1993	1
69220-20220D0	ST18# WINE RED M,3J8	08/1991 - 09/1993	1
69220-20260G1	ST18# BLACKISH KHAKI M.,6K8	08/1992 - 09/1993	1
69220-20220H1	ST180,182..X DARK TURQUOISE MC,742	08/1992 - 09/1993	1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040	ST18# ｲｴﾛｰ	09/1989 - 09/1993	1
69293-12030	ST18# NATURAL	09/1989 - 09/1993	1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-20340	ST18# MITUI	09/1989 - 08/1991	1
69030-20410	ST18# MITUI	08/1991 - 09/1993	1
69030-20350	ST18# AISIN	09/1989 - 08/1991	1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-20340	ST182,183..X AISIN	09/1989 - 08/1991	1
69040-20420	ST18#..F,S,SLIM AISIN	08/1991 - 09/1993	1
69040-20340	ST180,182..X ｱﾘ(ｼﾔｿｸｶﾝﾉｳｼｷﾊﾟﾜ-ﾄﾞｱﾛﾂｸ), AISIN	05/1991 - 07/1991	1
69040-20320	ST182,183..X MITUI	09/1989 - 08/1991	1
69040-20430	ST18#..GLIM,X AISIN	08/1991 - 09/1993	1
69040-20320	ST180,182..X ｱﾘ(ｼﾔｿｸｶﾝﾉｳｼｷﾊﾟﾜ-ﾄﾞｱﾛﾂｸ), MITUI	05/1991 - 07/1991	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20080	ST18# MITUI	04/1993 - 09/1993	2
69410-20090	ST18# MITUI	09/1989 - 04/1993	2
69410-20070	ST18# AISIN	04/1993 - 09/1993	2
69410-20100	ST18# AISIN	09/1989 - 04/1993	2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-20170	ST18#	09/1989 - 09/1993	1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-20170	ST18#	09/1989 - 09/1993	1
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-20041	ST18#	06/1993 - 09/1993	1
69750-20040	ST18#	09/1989 - 06/1993	1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24060	ST18# GRAY	09/1989 - 09/1993	2
69759-24050	ST18# GREEN	09/1989 - 09/1993	2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24060	ST18# GRAY	09/1989 - 09/1993	2
69759-24050	ST18# GREEN	09/1989 - 09/1993	2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24090	ST18# ﾌﾞﾗｳﾝ	09/1989 - 09/1993	1
69759-24080	ST18# ｲｴﾛｰ	09/1989 - 09/1993	1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050	ST18# PINK	09/1989 - 09/1993	2
69759-24070	ST18# ｲｴﾛｰ	09/1989 - 09/1993	2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050	ST18# PINK	09/1989 - 09/1993	2
69759-24070	ST18# ｲｴﾛｰ	09/1989 - 09/1993	2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-14010	ST18#	09/1989 - 09/1993	2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-20040	ST18#	09/1989 - 06/1993	1
69760-20041	ST18#	06/1993 - 09/1993	1
Common parts
90105-06074
90151-80014
90159-60349
90189-05092
90467-06106
90467-08117
93530-55016

ST182-CTMGK (1989)

(8909- )
