Toyota Carina ed ST182 DISTRIBUTOR

ST182-CTMGK (1989)

Toyota Carina Ed

Production Sep 1989 - Sep 1993

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9008-9012)3SFE,4SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-74081	3SFE..ST182,183	12/1990 - 09/1993	1
19100-74080	3SFE..ST182,183	08/1990 - 12/1990	1
19100-74020	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19100A - TAPE, SEALING
90919-24004	3S#,4SF#..ST18#	09/1989 - 09/1993	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74120	3SFE..ST182,183	08/1990 - 12/1990	1
19101-74150	3SFE..ST182,183	12/1990 - 09/1993	1
19101-11040	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031	3SFE,4SFE..ST18#	08/1990 - 09/1993	1
19102-11010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	3S#,4SFE..ST18#	08/1990 - 09/1993	1
19115-50010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19121 - COVER, DUST PROOF
19121-74010	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19121-74030	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19121-16150	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127 - PACKING, DUST PROOF
19127-15021	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127-74040	3S#,4SFE..ST18#	08/1990 - 12/1990	1
19127-74010	3SFE,4SFE..ST18# NO.1	12/1990 - 09/1993	1
19127-74040	3SFE,4SFE..ST18# NO.2	12/1990 - 09/1993	1
19127 - PACKING, DUST PROOF
19127-15021	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127-74040	3S#,4SFE..ST18#	08/1990 - 12/1990	1
19127-74010	3SFE,4SFE..ST18# NO.1	12/1990 - 09/1993	1
19127-74040	3SFE,4SFE..ST18# NO.2	12/1990 - 09/1993	1
19225 - CAP, RUBBER
19225-16100	3SFE,4SFI..ST18#	09/1989 - 06/1990	1
19225-62010	3SFE,4SFI..ST18#	06/1990 - 08/1990	1
19225-74080	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19225-62010	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19235 - HOUSING, DISTRIBUTOR
19235-74160	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19235-74120	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19235-74140	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
Common parts
90099-04977
90119-08303

(9012- )3SFE,4SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-74081	3SFE..ST182,183	12/1990 - 09/1993	1
19100-74080	3SFE..ST182,183	08/1990 - 12/1990	1
19100-74020	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19100A - TAPE, SEALING
90919-24004	3S#,4SF#..ST18#	09/1989 - 09/1993	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74120	3SFE..ST182,183	08/1990 - 12/1990	1
19101-74150	3SFE..ST182,183	12/1990 - 09/1993	1
19101-11040	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031	3SFE,4SFE..ST18#	08/1990 - 09/1993	1
19102-11010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	3S#,4SFE..ST18#	08/1990 - 09/1993	1
19115-50010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19121 - COVER, DUST PROOF
19121-74010	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19121-74030	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19121-16150	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127 - PACKING, DUST PROOF
19127-15021	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127-74040	3S#,4SFE..ST18#	08/1990 - 12/1990	1
19127-74010	3SFE,4SFE..ST18# NO.1	12/1990 - 09/1993	1
19127-74040	3SFE,4SFE..ST18# NO.2	12/1990 - 09/1993	1
19127 - PACKING, DUST PROOF
19127-15021	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127-74040	3S#,4SFE..ST18#	08/1990 - 12/1990	1
19127-74010	3SFE,4SFE..ST18# NO.1	12/1990 - 09/1993	1
19127-74040	3SFE,4SFE..ST18# NO.2	12/1990 - 09/1993	1
19225 - CAP, RUBBER
19225-16100	3SFE,4SFI..ST18#	09/1989 - 06/1990	1
19225-62010	3SFE,4SFI..ST18#	06/1990 - 08/1990	1
19225-74080	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19225-62010	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19235 - HOUSING, DISTRIBUTOR
19235-74160	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19235-74120	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19235-74140	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
Common parts
90099-04977
90119-08937

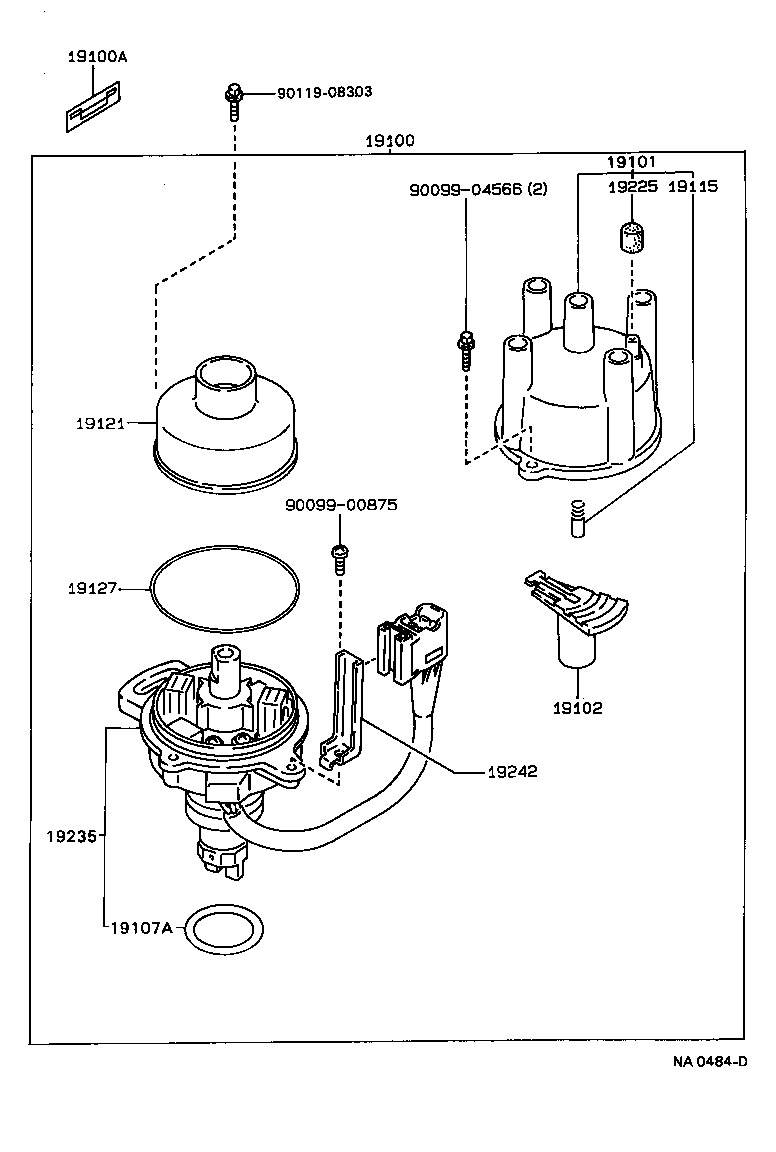

(8909-9008)3SFE,4SFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19100-74081	3SFE..ST182,183	12/1990 - 09/1993	1
19100-74080	3SFE..ST182,183	08/1990 - 12/1990	1
19100-74020	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19100A - TAPE, SEALING
90919-24004	3S#,4SF#..ST18#	09/1989 - 09/1993	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74120	3SFE..ST182,183	08/1990 - 12/1990	1
19101-74150	3SFE..ST182,183	12/1990 - 09/1993	1
19101-11040	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031	3SFE,4SFE..ST18#	08/1990 - 09/1993	1
19102-11010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	3SFE,4SF#..ST18#	09/1989 - 09/1993	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280	3S#,4SFE..ST18#	08/1990 - 09/1993	1
19115-50010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19121 - COVER, DUST PROOF
19121-74010	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19121-74030	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19121-16150	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127 - PACKING, DUST PROOF
19127-15021	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19127-74040	3S#,4SFE..ST18#	08/1990 - 12/1990	1
19127-74010	3SFE,4SFE..ST18# NO.1	12/1990 - 09/1993	1
19127-74040	3SFE,4SFE..ST18# NO.2	12/1990 - 09/1993	1
19225 - CAP, RUBBER
19225-16100	3SFE,4SFI..ST18#	09/1989 - 06/1990	1
19225-62010	3SFE,4SFI..ST18#	06/1990 - 08/1990	1
19225-74080	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19225-62010	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19235 - HOUSING, DISTRIBUTOR
19235-74160	3SFE,4SFE..ST18#	12/1990 - 09/1993	1
19235-74120	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
19235-74140	3SFE,4SFE..ST18#	08/1990 - 12/1990	1
19242 - CLAMP, CORD
19242-62010	3SFE,4SFI..ST18#	09/1989 - 08/1990	1
Common parts
90099-00875
90099-04566
90119-08303

ST182-CTMGK (1989)

(9008-9012)3SFE,4SFE

(9012- )3SFE,4SFE

(8909-9008)3SFE,4SFI
