ST181-CTPGM (1989)

Toyota Carina Ed

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

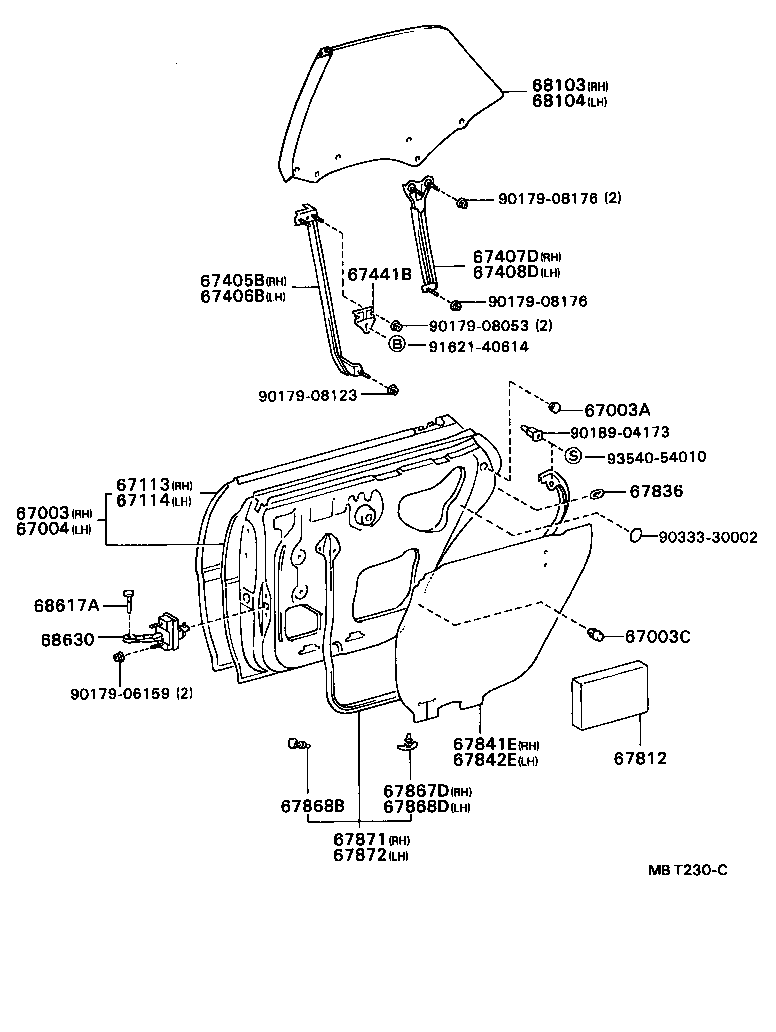

ILLUST NO. 1 OF 2(8909- )

Click highlighted areas on diagram

diagram 67003 67003A 67003C 67004 67113 67114 67405B 67406B 67407D 67408D 67441B 67812 67836 67841E 67842E 67867D 67868B 67868D 67871 67872 68103 68104 68617A 68630 9017906159 9017908053 9017908123 9017908176 9017908176 9018904173 9033330002 9162140614 9354054010
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-20680

ST18#

 1
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90950-0171206

ST18#

SABLE,TRIM4#

 2
90950-0171203

ST18#

SHADOW GRAY,TRIM1#

 2
90950-0171207

ST18#..GLIM,SLIM,X

KHAKI,TRIM6#

 2
67003C - CUSHION, REAR DOOR PANEL
90541-09059

ST18#

A41,A42

 2
90541-09006

ST18#

A51-A54

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-20580

ST18#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-20220

ST18#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-20200

ST18#

 1
67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-20070

ST18#

 1
67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-20070

ST18#

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-20190

ST18#

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-20180

ST18#

 1
67441B - PLATE, REAR DOOR FRONT GUIDE, UPPER
67441-20050

ST18#

 2
67812 - PAD, REAR DOOR SILENCER
67812-12010

ST18#

 2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-14010

ST18#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-20240

ST18#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-20240

ST18#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67868-20140

ST18#

 16
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67869-20030

ST18#

 6
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67868-20140

ST18#

 16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-20260

ST18#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-20260

ST18#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-20130

ST18#

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
68103-20140

ST18#

*TT,厚さ=5.0,ｸﾞﾚｰ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-20140

ST18#

*TT,厚さ=5.0,ｸﾞﾚｰ

 1
68104-20130

ST18#

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
68617A - PIN, REAR DOOR CHECK
68617-20020

ST18#

 2
68630 - CHECK ASSY, REAR DOOR
68630-20070

ST18#

 2
Common parts
90179-06159
90179-08053
90179-08123
90179-08176
90189-04173
90333-30002
91621-40614
93540-54010

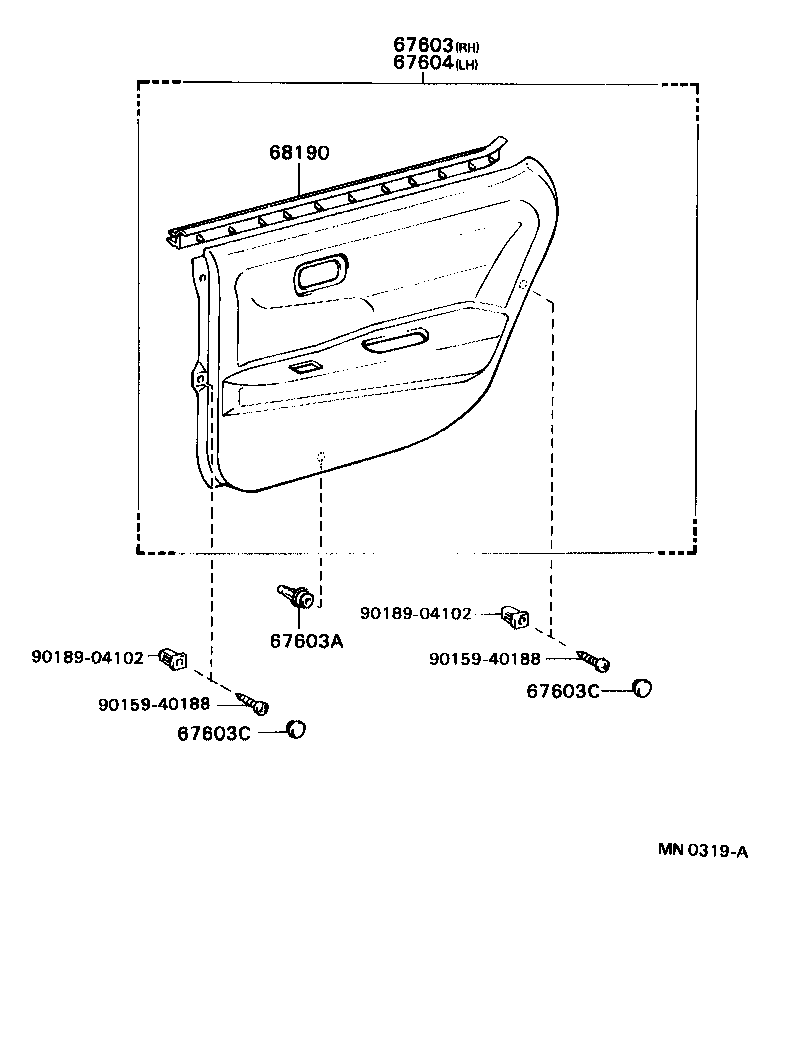

ILLUST NO. 2 OF 2(8909- )

Click highlighted areas on diagram

diagram 67603 67603A 67603C 67603C 67604 68190 9015940188 9015940188 9018904102 9018904102
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2D46003

ST18#..GLIM,S,SLIM

SHADOW GRAY,TRIM1#

 1
67630-2D50006

ST18#..F,X

SABLE,TRIM4#

 1
67630-2D50003

ST18#..F,X

SHADOW GRAY,TRIM1#

 1
67630-2D50007

ST18#..X

KHAKI,TRIM6#

 1
67630-2D46006

ST18#..GLIM,S,SLIM

SABLE,TRIM4#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12030

ST18#

 3
67603C - CAP(FOR REAR DOOR TRIM BOARD)
90339-1000803

ST18#

SHADOW GRAY,TRIM1#

 8
90339-1000807

ST18#..GLIM,SLIM,X

KHAKI,TRIM6#

 8
90339-1000816

ST18#

SABLE,TRIM4#

 8
67603C - CAP(FOR REAR DOOR TRIM BOARD)
90339-1000803

ST18#

SHADOW GRAY,TRIM1#

 8
90339-1000807

ST18#..GLIM,SLIM,X

KHAKI,TRIM6#

 8
90339-1000816

ST18#

SABLE,TRIM4#

 8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2D46006

ST18#..GLIM,S,SLIM

SABLE,TRIM4#

 1
67640-2D50006

ST18#..F,X

SABLE,TRIM4#

 1
67640-2D50003

ST18#..F,X

SHADOW GRAY,TRIM1#

 1
67640-2D50007

ST18#..X

KHAKI,TRIM6#

 1
67640-2D46003

ST18#..GLIM,S,SLIM

SHADOW GRAY,TRIM1#

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68240-20130

ST18#

左側

 1
68190-20230

ST18#

右側

 1
Common parts
90159-40188
90189-04102
