ST181-CTMSM (1989)

Toyota Carina Ed

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9108)

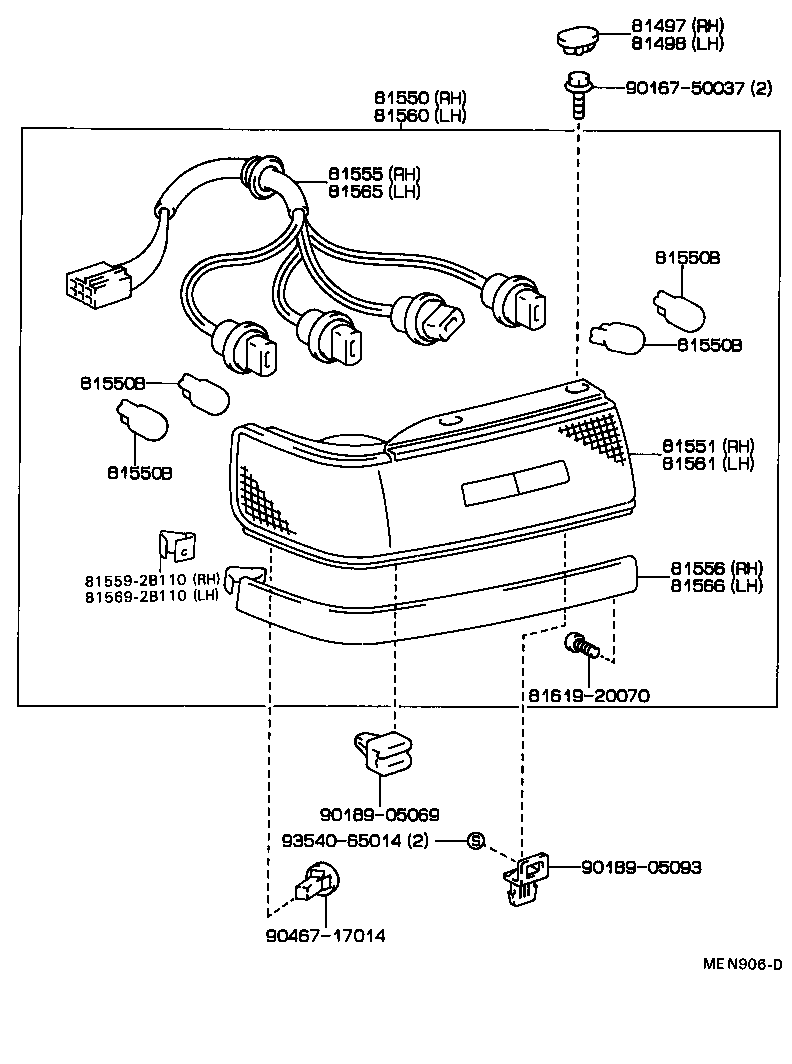

Click highlighted areas on diagram

diagram 81497 81498 81550 81550B 81550B 81550B 81550B 81551 81555 81556 815592B110 81560 81561 81565 81566 815692B110 8161920070 9016750037 9018905069 9018905093 9046717014 9354065014
Part # Description Qty Price
81497 - COVER, REAR COMBINATION LAMP, RH
81497-20010

ST18#

 2
81498 - COVER, REAR COMBINATION LAMP, LH
81497-20010

ST18#

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B11007

ST18#

LIGHT GREEN,6K7

 1
81550-2B11017

ST18#

DARK KHAI,6K8

 1
81550-2B11002

ST18#

DARK RED,3H4

 1
81550-2B11005

ST18#

LIGHT BEIGE,040

 1
81550-2B11003

ST18#

DARK GRAY,182 ,8G5

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

ST18#

12V 21W,TURN OR BACK

 4
90981-13044

ST18#

12V 21/5W,TAIL & STOP

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

ST18#

12V 21W,TURN OR BACK

 4
90981-13044

ST18#

12V 21/5W,TAIL & STOP

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

ST18#

12V 21W,TURN OR BACK

 4
90981-13044

ST18#

12V 21/5W,TAIL & STOP

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

ST18#

12V 21W,TURN OR BACK

 4
90981-13044

ST18#

12V 21/5W,TAIL & STOP

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B110

ST18#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B110

ST18#

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-2B11007

ST18#

LIGHT GREEN,6K7

 1
81556-2B11005

ST18#

LIGHT BEIGE,040

 1
81556-2B11017

ST18#

DARK KHAKI,6K8

 1
81556-2B11002

ST18#

DARK RED0,3H4

 1
81556-2B11003

ST18#

DARK GRAY,182 ,8G5

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B11003

ST18#

DARK GRAY,182 ,8G5

 1
81560-2B11005

ST18#

LIGHT BEIGE,040

 1
81560-2B11002

ST18#

DARK RED,3H4

 1
81560-2B11017

ST18#

DARK KHAI,6K8

 1
81560-2B11007

ST18#

LIGHT GREEN,6K7

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B110

ST18#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B110

ST18#

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-2B11005

ST18#

LIGHT BEIGE,040

 1
81566-2B11002

ST18#

DARK RED,3H4

 1
81566-2B11017

ST18#

DARK KHAKI,6K8

 1
81566-2B11007

ST18#

LIGHT GREEN,6K7

 1
81566-2B11003

ST18#

DARK GRAY,182 ,8G5

 1
Common parts
81559-2B110
81569-2B110
81619-20070
90167-50037
90189-05069
90189-05093
90467-17014
93540-65014
