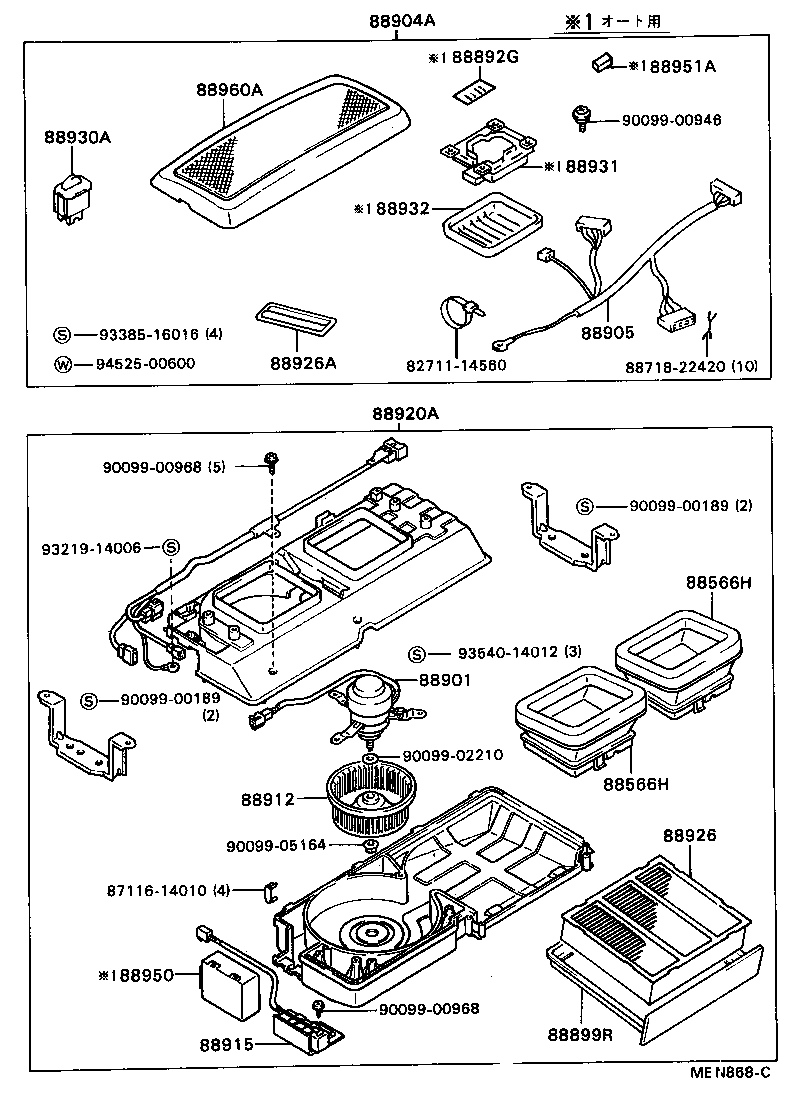

Toyota Carina ed ST181 AIR PURIFIER OR ION GENERATOR

Part #	Description	Period	Qty
88566H - DUCT, AIR, NO.1
88566-20400	ST18#	09/1989 - 09/1993	2
88566H - DUCT, AIR, NO.1
88566-20400	ST18#	09/1989 - 09/1993	2
88892G - PLATE SUB-ASSY
88892-20370	ST18#	09/1989 - 09/1993	1
88899R - FRAME, AIR PURIFIER
88899-20230	ST18#	09/1989 - 08/1991	1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-20010	ST18#	09/1989 - 09/1993	1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-2010006	ST18# SABLE,TRIM4#	09/1989 - 08/1991	1
88904-2010003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 08/1991	1
88904-2010007	ST18#..GLIM,SLIM,X KHAKI,TRIM6#	09/1989 - 08/1991	1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-20060	ST18# ｵ-ﾄ	09/1989 - 09/1993	1
88905-20070	ST18# ﾏﾆﾕｱﾙ	09/1989 - 09/1993	1
88912 - FAN, AIR PURIFIER
88912-20010	ST18#	09/1989 - 09/1993	1
88915 - RESISTOR, AIR PURIFIER
88915-20010	ST18#	09/1989 - 09/1993	1
88920A - PURIFIER ASSY, AIR
88920-20110	ST18# ｵ-ﾄ	09/1989 - 08/1991	1
88920-20090	ST18# ﾏﾆﾕｱﾙ	09/1989 - 08/1991	1
88926 - FILTER, AIR PURIFIER
88926-20020	ST18#	09/1989 - 08/1991	1
88926A - ODOR, CARTRIDGE
88926-20010	ST18#	09/1989 - 08/1991	1
88930A - SWITCH ASSY, AIR PURIFIER
88930-32030	ST18# ｵ-ﾄ	09/1989 - 09/1993	1
88930-22041	ST18# ﾏﾆﾕｱﾙ	09/1989 - 09/1993	1
88931 - SENSOR, SMOKE
88931-20010	ST18#	09/1989 - 09/1993	1
88932 - COVER, SMOKE SENSOR
88932-20060	ST18#	09/1989 - 08/1991	1
88950 - AMPLIFIER ASSY, AIR PURIFIER
88950-20010	ST18#	09/1989 - 09/1993	1
88951A - PLATE, CONNECTING
88951-20010	ST18#	09/1989 - 09/1993	1
88960A - GRILLE ASSY, AIR PURIFIER
88960-2005003	ST18# SHADOW GRAY,TRIM1#	09/1989 - 09/1993	1
88960-2005007	ST18#..GLIM,SLIM,X KHAKI,TRIM6#	09/1989 - 09/1993	1
88960-2005006	ST18# SABLE,TRIM4#	09/1989 - 09/1993	1
Common parts
82711-14560
87116-14010
88718-22420
90099-00189
90099-00946
90099-00968
90099-02210
90099-05164
93219-14006
93385-16016
93540-14012
94525-00600

ST181-CTMGM (1989)

(8909- )
